Jung 1701SE - Technical Data

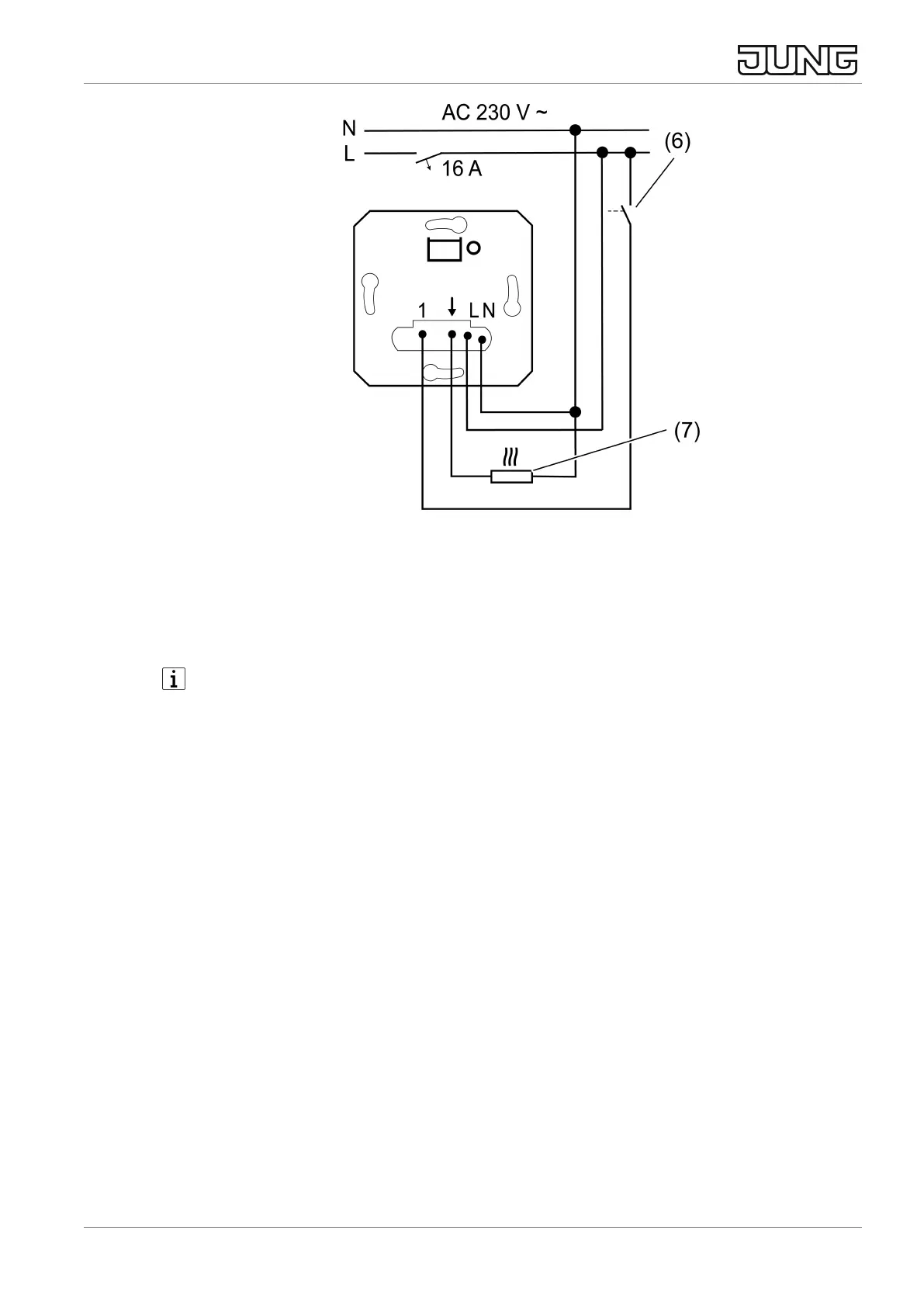

Image3: Connection diagram in combination with a room thermostat cover or KNX
RF push-button
(6) Switching contact for switching to cooling mode
(7) Electric underfloor heating system (max. 16 A) or electrothermal valve
drives
If 230 V is applied to extension input 1, cooling mode is active.
5 Technical data
Rated voltage AC 230 V ~
Mains frequency 50 / 60 Hz
Standby load depending on the cover approx. 0.1 ... 0.5W
Switching current at 35 °C
Ohmic 16 A (AC1)
Motors 6 A
Connected load
Incandescent lamps 2300 W
HV halogen lamps 2300 W
Electronic transformers 1500 W
Inductive transformers 1000 VA
HV-LED lamps typ. 400 W
Compact fluorescent lamps typ. 500 W
Fluorescent lamps, uncompensated 1200 VA
Capacitive load 920 VA (115 μF)
Relay switch insert 1-channel
6 / 7
82597453 19.10.2022
J0082597453
