Jung HYGHSPIN BASIC User Manual

5 HYGHSPIN, release 01.2015
 Pull shafts (item 7) out of the bearing casing (Pos. 4)
 Remove front securing V ring (item 125)
 Move spacer sleeve (item 17)
 Remove angular contact ball bearings (item 107) with the aid of an extractor
 Remove spacer sleeves (item 17)
 Remove rear securing V ring (item 125)
 Remove needle bearings (item 123)
 Remove shaft seal rings (item 106)
6 Assembling bearing support
 Mount one securing V ring (item 125) on shaft (item 7)
 Warm bearings before assembly to 90°C with the aid of a suitable device
Important: The bearing temperature must NOT exceed 120°C, even partially!
 Pull bearing inner ring and needle bearings (item 123) onto shafts (item 7)
 Mount rear securing V rings (item 125) onto shafts (item 7)
 Mount spacer sleeves (item 17) with larger diameter on the needle bearings
 Mount angular contact ball bearings (item 107) on the shafts
Important: Make sure the installation position is correct!

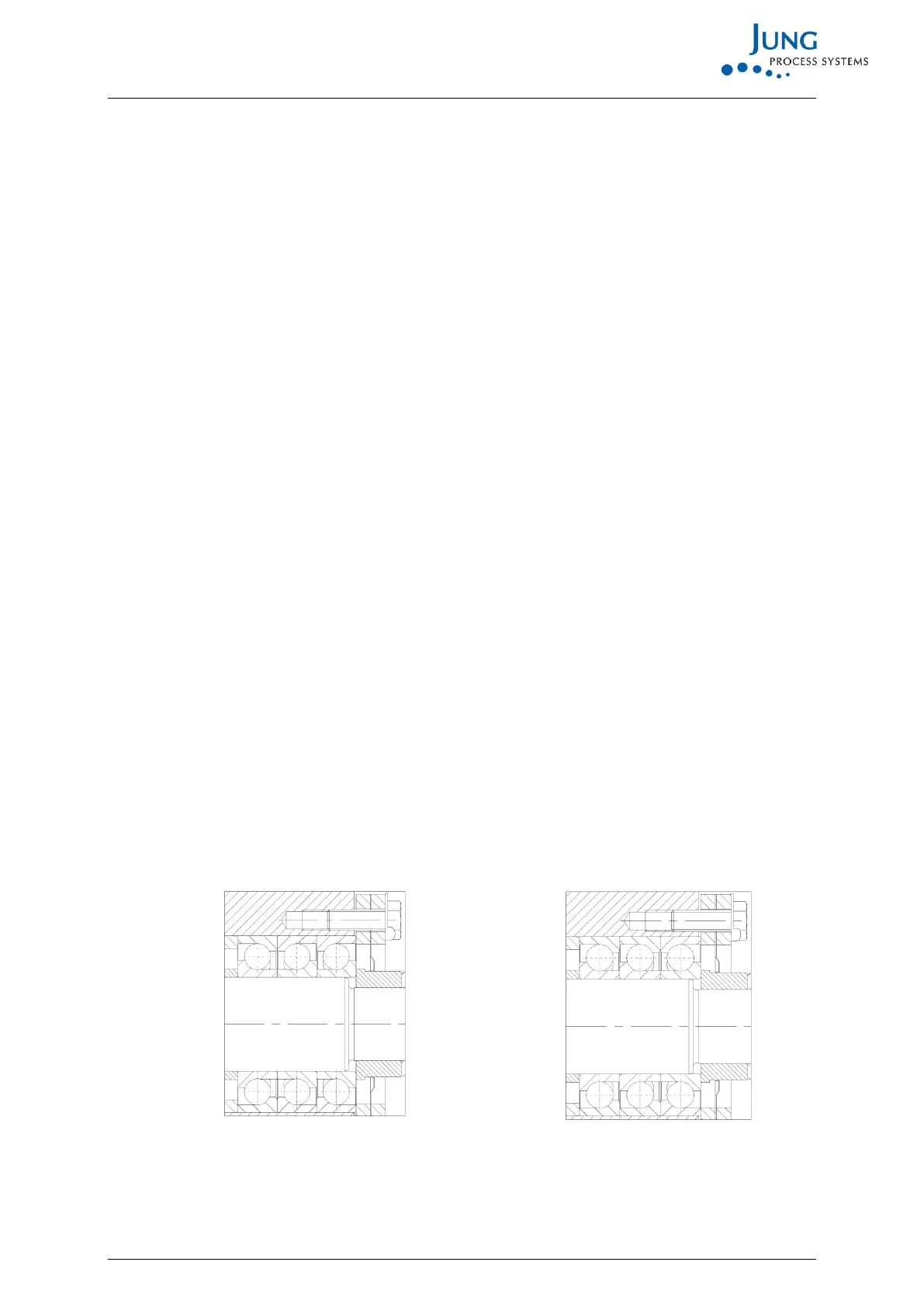

Mechanical seal on the discharge side
Mechanical seal on the intake side
