Juniper MX960 Instruction For Upgrading

Fan Tray Upgrade Overview
The MX Series high-capacity fan trays satisfy cooling requirements for high-density DPCs
and MPCs, and must be upgraded for proper cooling (see Figure 1 on page 4, Figure 2
on page 4, and Figure 3 on page 5). Additionally, for the MX960 router, you must
upgrade both fan trays and the filter tray.
NOTE: Before upgrading, the MX Series router must be running Junos OS
Release 10.0 R1 or later to support high-capacity fan trays.
NOTE: To prevent overheating, install the replacement fan tray immediately
after removing the existing fan tray.

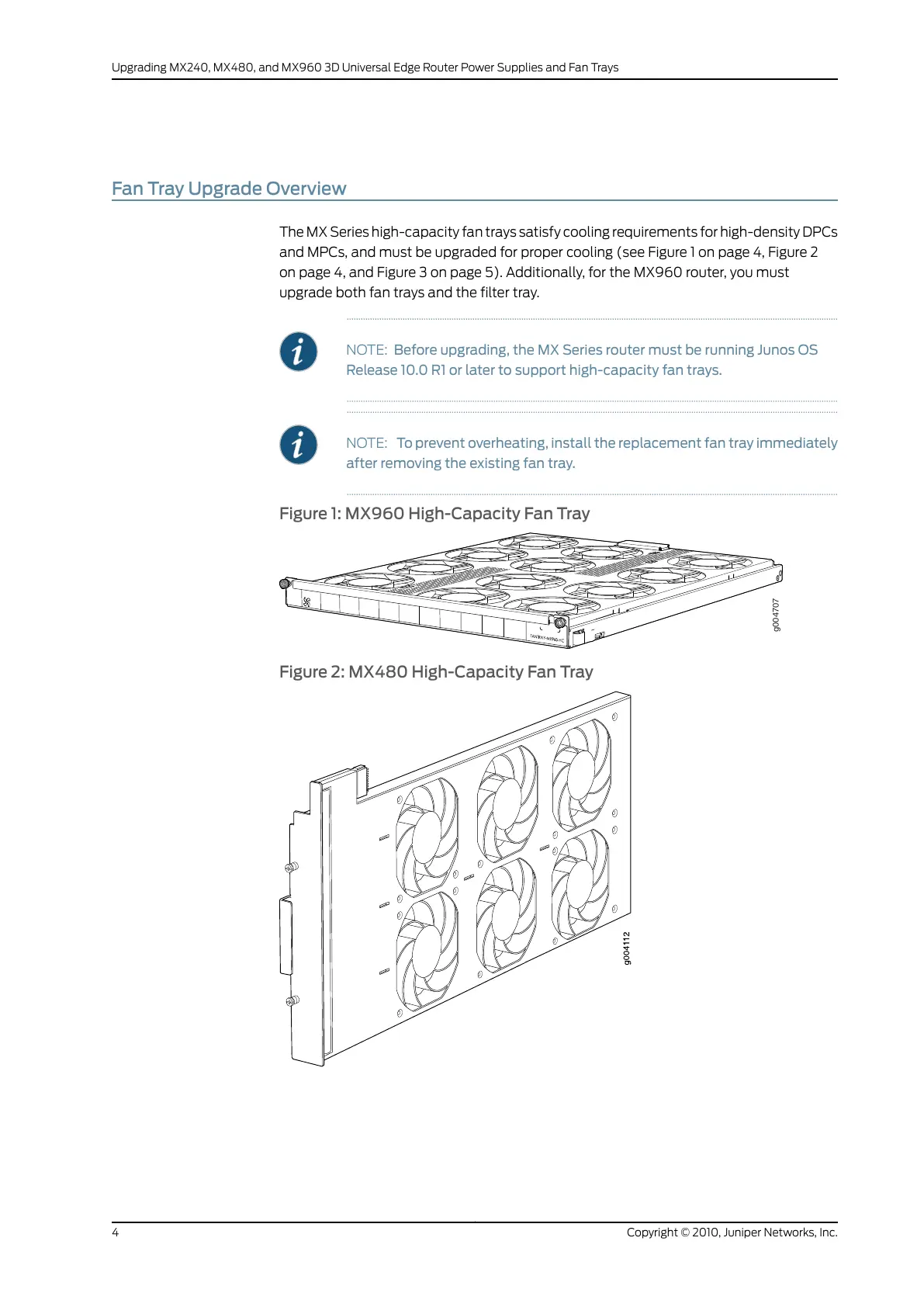

Figure 1: MX960 High-Capacity Fan Tray
g004707
Figure 2: MX480 High-Capacity Fan Tray
Copyright © 2010, Juniper Networks, Inc.4
Upgrading MX240, MX480, and MX960 3D Universal Edge Router Power Supplies and Fan Trays
All manuals and user guides at all-guides.com

Juniper MX960 Specifications

General

Power Supply	AC or DC
Redundancy	Yes
Operating System	Junos OS
Form Factor	Rack-mountable
Operating Humidity	5% to 90% non-condensing
Chassis Type	Modular
Slots	12
Interfaces/Ports	Varies with line cards
Operating Temperature	0°C to 40°C (32°F to 104°F)
Routing Engine	Redundant Routing Engines
Interfaces	Supports various interface modules
