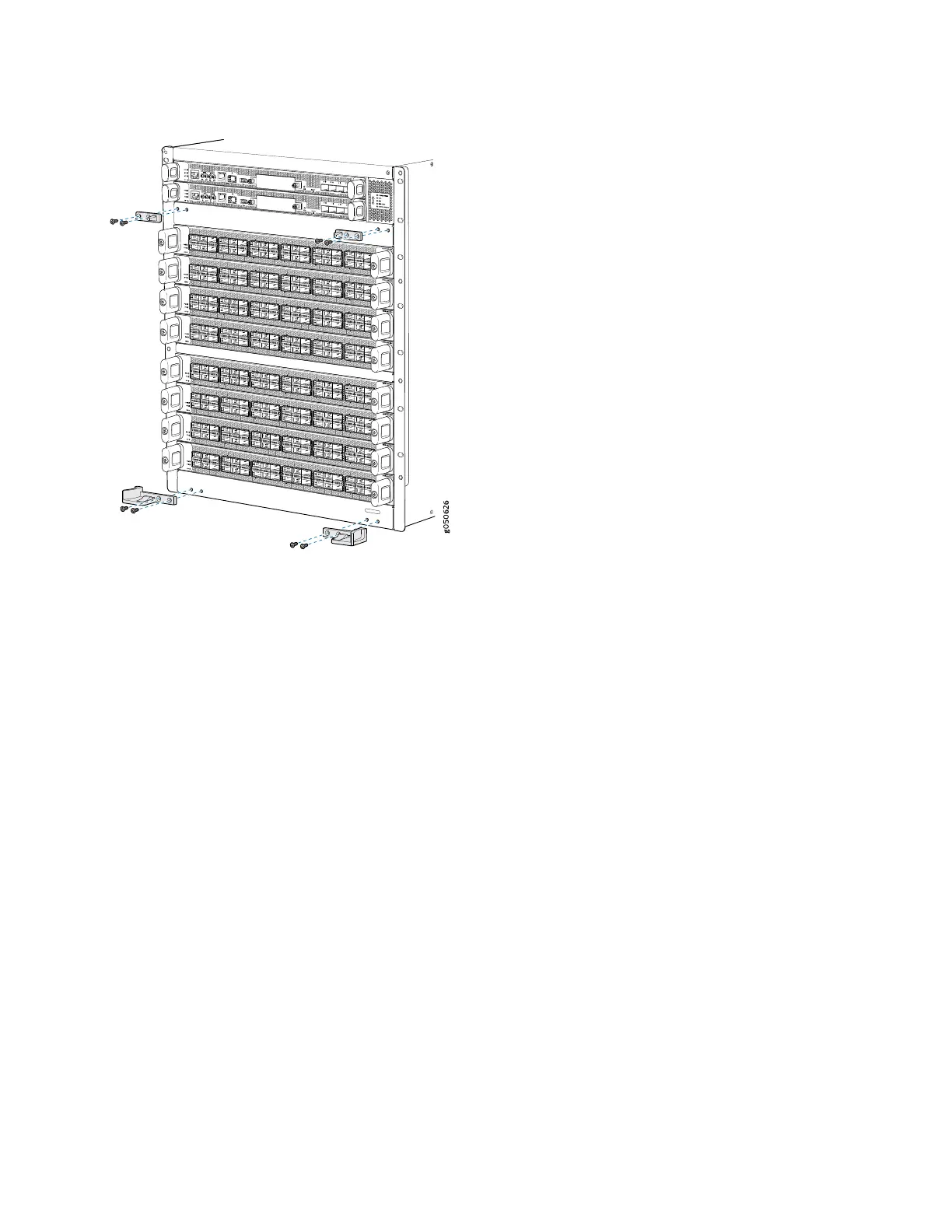

Figure 15: Attaching Front Panel Brackets on a PTX10008
6. Use the final two mounting screws to attach a latch bracket to the top right of the chassis frame so there are brackets
on all four corners of the front of the chassis.
7. Lift the front panel and rest it on the two bottom brackets.
8. Slide the panel back on the bracket glides until it engages on the two ramps.
9. Tilt the panel towards the chassis until it is vertical with the chassis. The blue release buttons on the side of the panel
click into place (see Figure 16).
16
