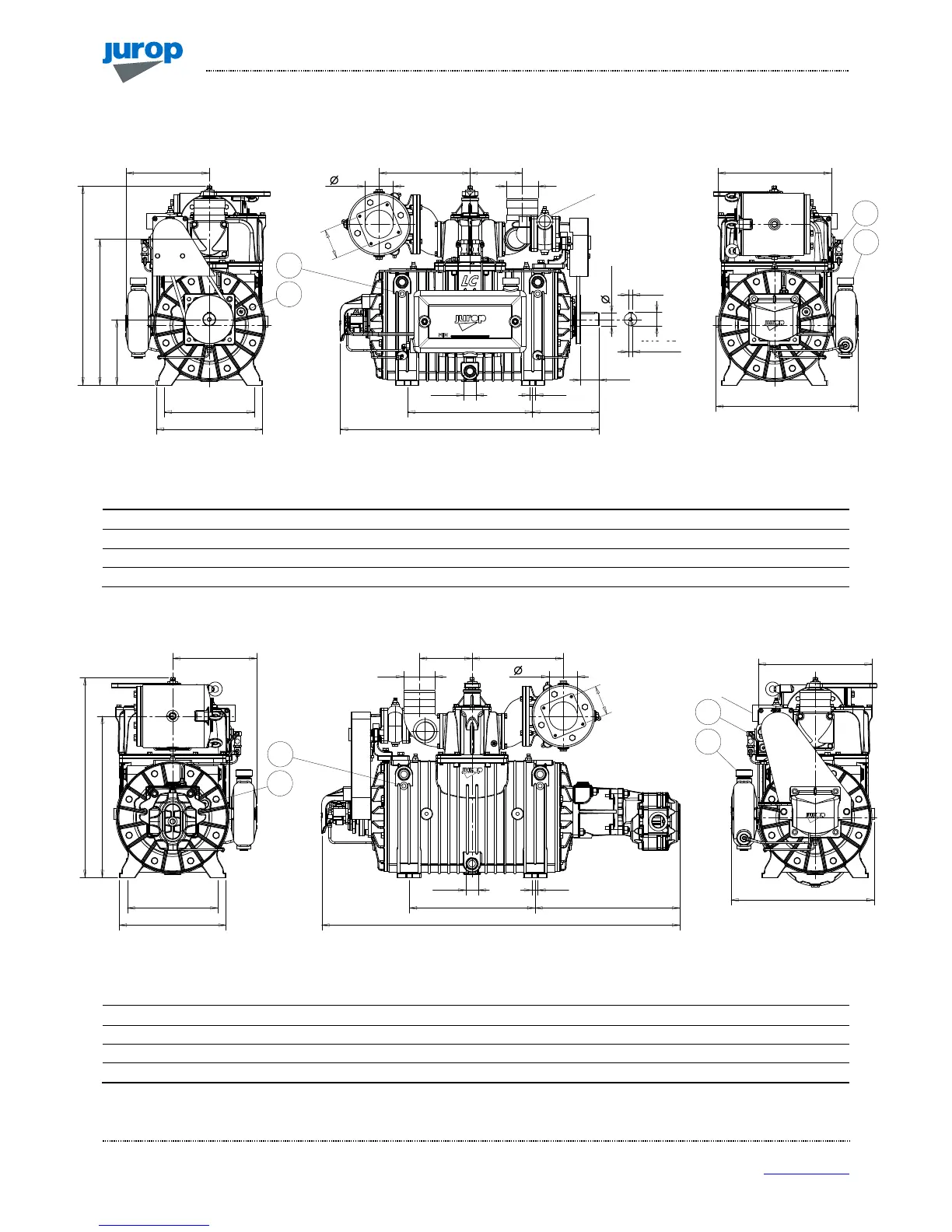

2.1. Dimensions LC300-420-580
Versions with smooth shaft
PUMP LUBRICATION
HOUSING
CS: tank filling point OL: oilers CL: vanes wear checking
Mod. A B C D E F G H L (
IN
) L (
OUT
) M N P Q S
LC 300 D 250 290 290 420 605 435 242 350 76-80 76 136 266 205 182 659
LC 420 D 250 290 290 442 638 469 279 350 80-100 80-100 166 290 205 249 794
LC 580 D 300 340 400 456 638 469 283 354 80-100 80-100 166 290 210 213 827
Versions HDR
PUMP LUBRICATION
HOUSING
CS: tank filling point OL: oilers CL: vanes wear checking
Mod. A B C D E F G H L (
IN
) L (
OUT
) M N P S
LC 300 HDR 250 290 290 420 605 435 242 350 76-80 76 136 266 428 970
LC 420 HDR 250 290 290 442 638 469 279 350 80-100 80-100 166 290 496 1105
LC 580 HDR 300 340 400 456 638 469 283 354 80-100 80-100 166 290 462 1141
