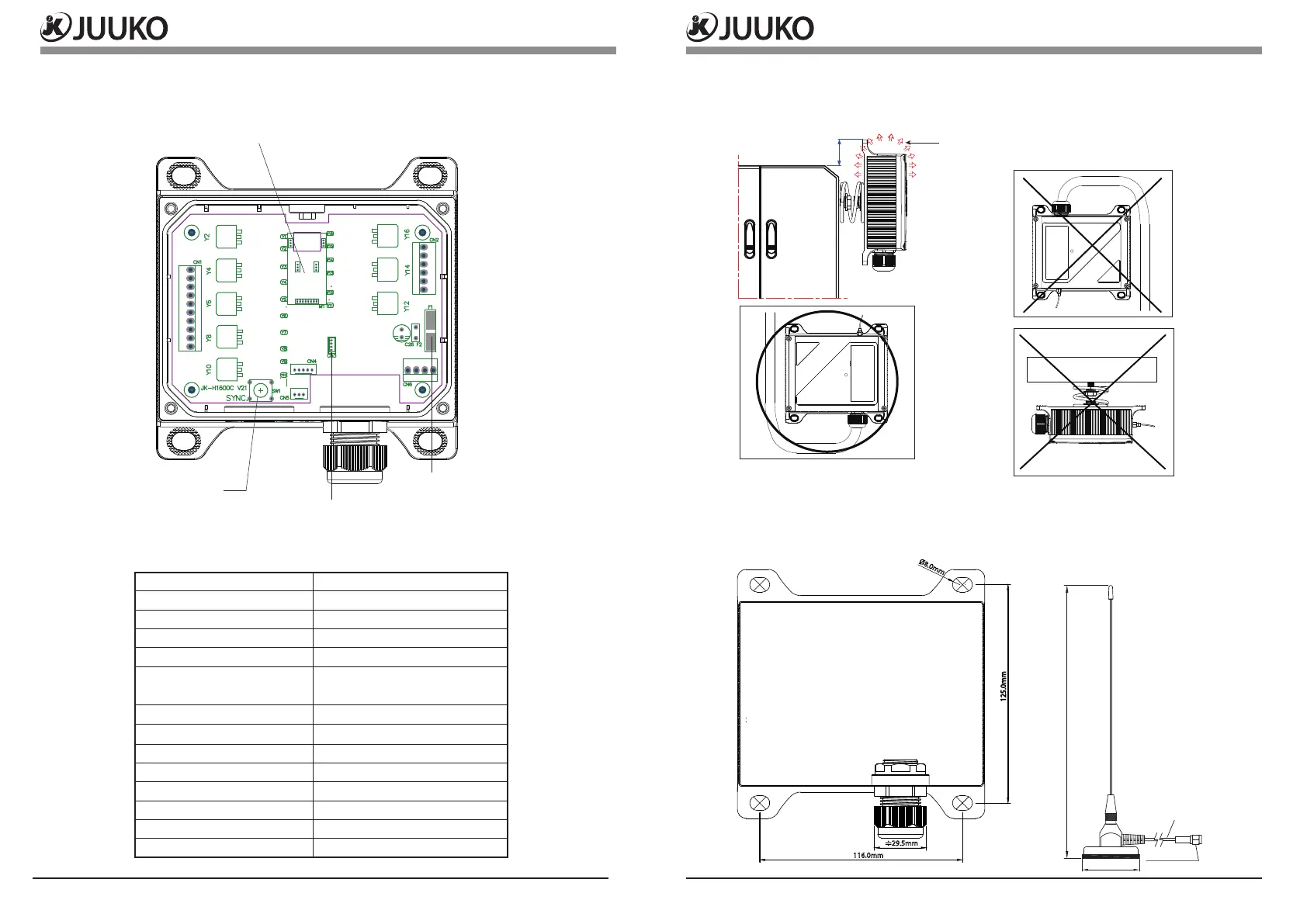

Juuko C2 - Receiver Installation and Technical Details; Receiver Internal Components and Safety; Receiver Technical Specifications; Instruction Guide and Best Practices

Receiver
WARNING! The receiver must NOT be opened by any other than a qualied installer.
Make sure to turn the electricity o before opening the receiver.
Technical data
Instruction guide
Area must be free
of obstructions
Do not ush mount.
Use the supplied mounting spring
WARNING! DO NOT FLUSH MOUNT THE RECEIVING ASSEMBLY.
PLEASE MAINTAIN PROPER CLEARANCEAS SHOWN. PLEASE USE
THE SUPPLIED MOUNT!
Maintain
proper clearance
RF module
SYNC.
Programming port
FUSE 15A
125.0mm
116.0mm
29.5mm
Ø8.0mm
TAKE TIME TO LOCATE THE BEST POSITION
If necessary, power the Receiver and move it around the vehicle until the required performance is achieved.
Operate the Transmitter and observe the Receiver internal LED’s
Mounting Dimensions
Mount as HIGH as possible
AVOID surfaces with HEAVY VIBRATION
AVOID DIRECT SPRAY from wheels
In a HOT CLIMATE t in a SHADED position
Cable gland should face DOWN
6 7
Dimensions
Frequency
Typical response time for Stop
command and commands
Sensitivity
Modulation method
Control system
Antenna impedance
Power supply
Antenna
Standby power
Weight
Housing material
Protection degree
142×141.2×58.5 (mm)
434.040Mhz~434.790Mhz
50mS~100mS
-112dBm@baud1.2K bps
4 FSK
PLL
50Ω
16mA
800g
PA6(30% GF)
IP65
Operating and storage temperature
(-20°C)~(+55°C)/(-40°C)~(+65°C)
Specified on the receiver
Internal (External as optional)
Receiver
Antenna (Optional)
49mm
RG-174 2M-5M
SMA MALE(Gold)
185±3mm
Chapter 3: ReceiverChapter 3: Receiver
