Juvent 1000 - Assembly Process

Assembly Process
4 Juvent 1000 Instruction Manual
A
A
Orientation
Markers
Steps

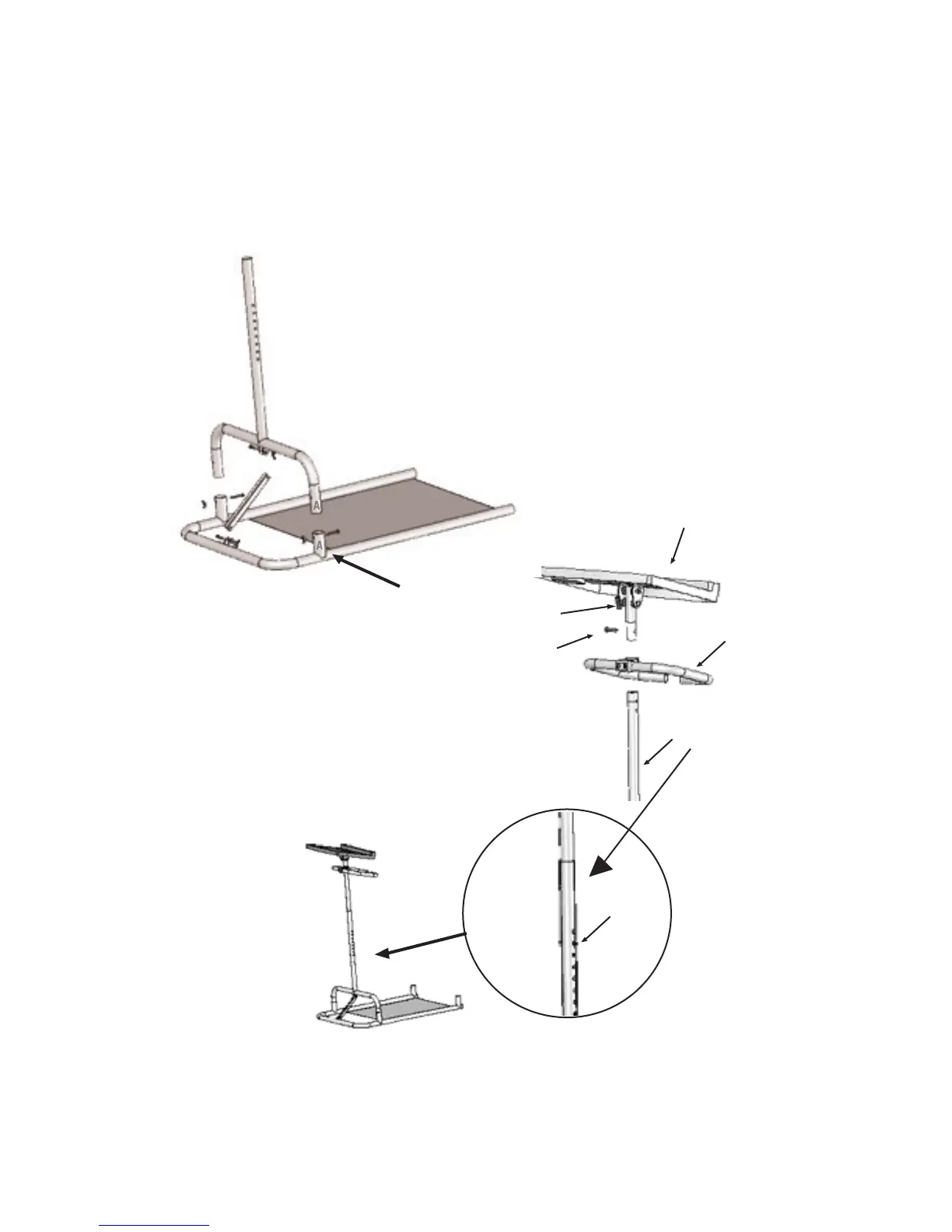

1. Place base onto floor.
2. Remove screws.
3. Insert mart into base tubes.
4. Mount strut tube.
5. Reassemble screws and tighten.
6. Slide chrome tube up to
second hole location.
7. Remove the screw, Slide
handle bar onto chrome
tube, and slide tray
assembly into chrome tube.
8. Reassemble screw and
tighten.
Chrome Tube
Handle bar
shown removed
Tray
Tilt adjust
knob
Screw
SECOND
HOLE
