JVC AV-32D201 - MAIN & CRT SOCKET & LF PWB CIRCUIT DIAGRAM

JVC AV-32D201
71 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
AV-27D201
AV-32D201
AV-27D201
AV-32D201
No.51686
No.51686
4
53.7 320
2-7 2-8

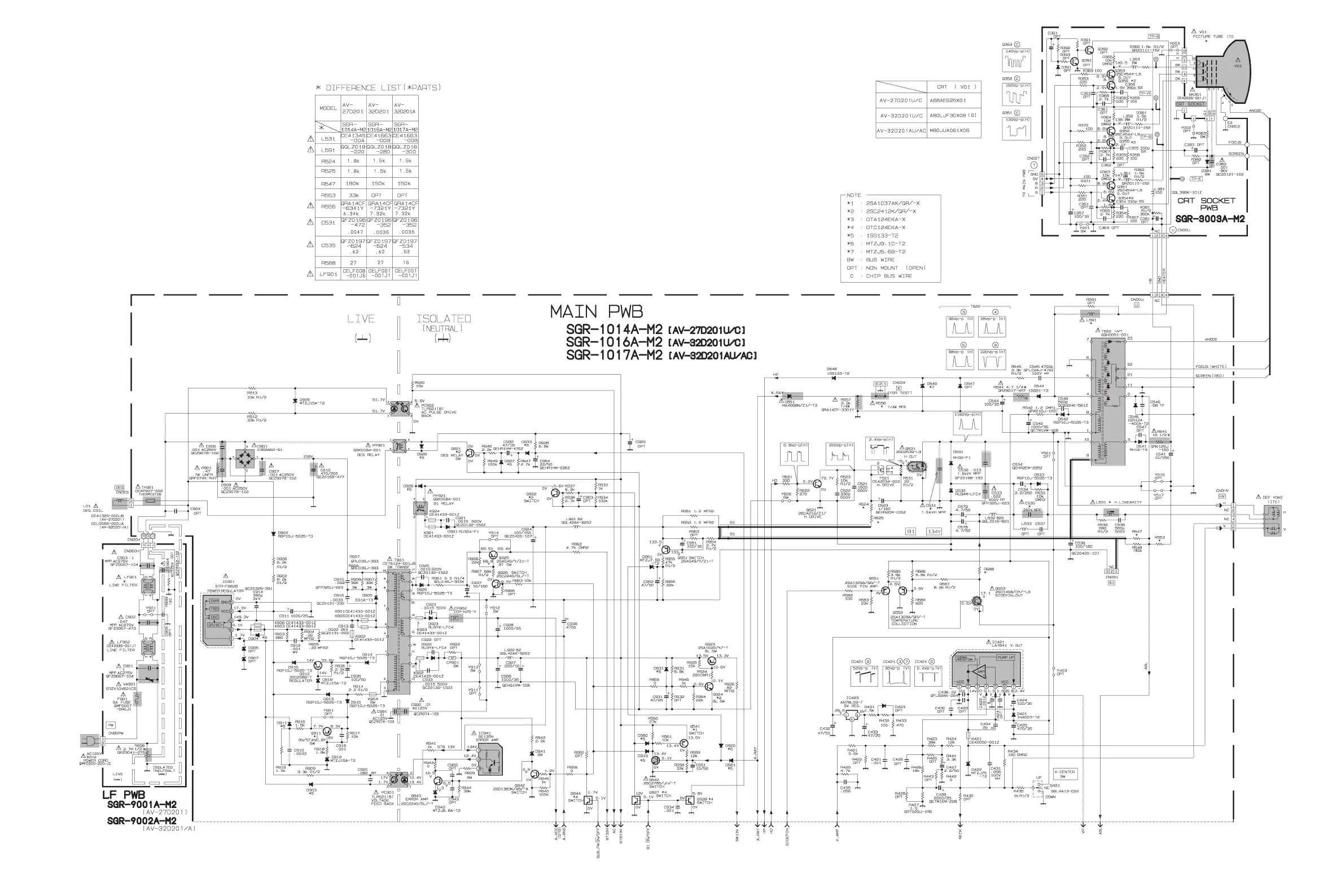

[ MAIN & CRT SOCKET & LF PWB CIRCUIT DIAGRAM ]
