JVC AV-A14M3 User Manual

No. 51669
A
V-A14M3
A
V-A14T3
A
V-A14AU3
A
V-1413EE
24

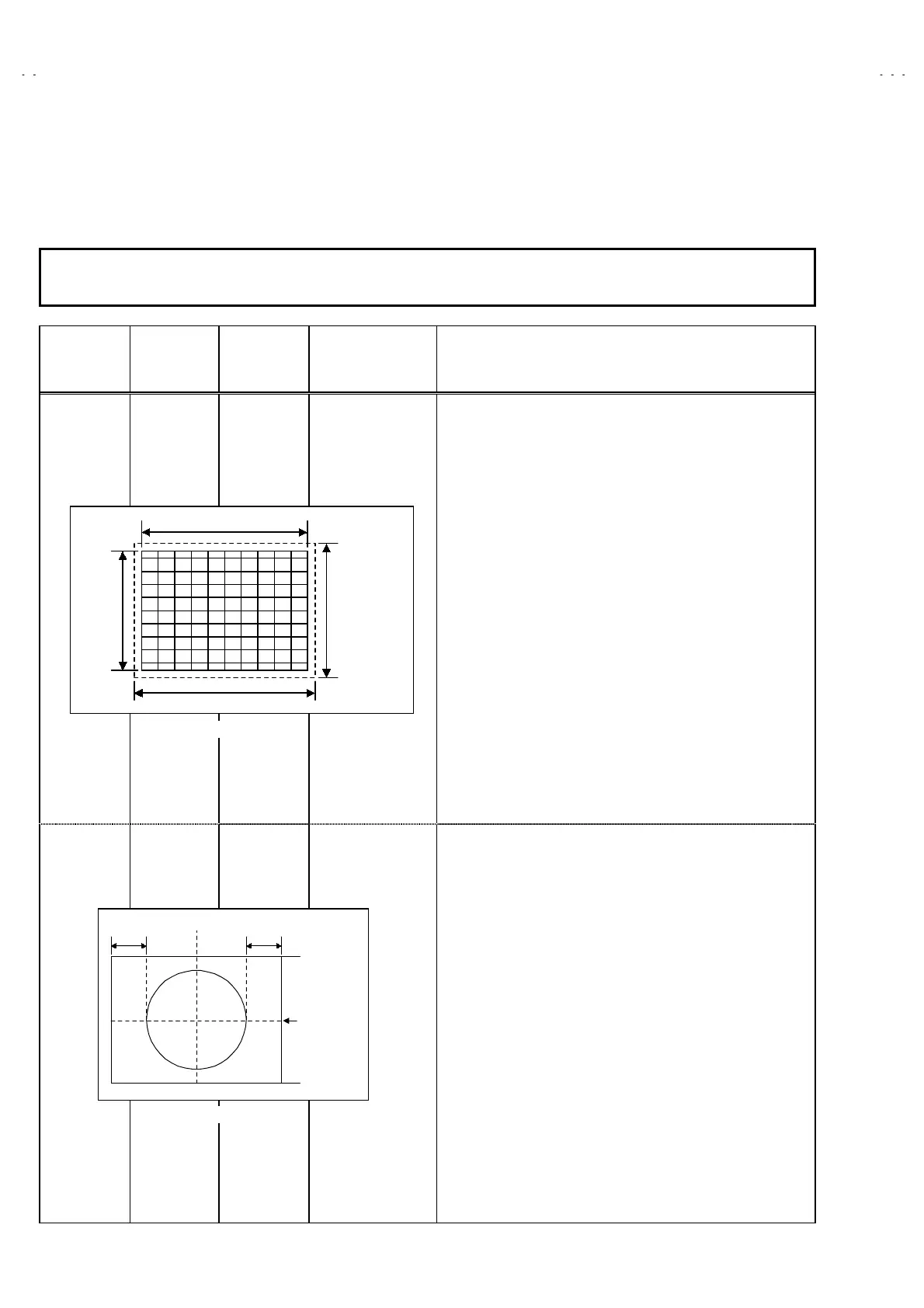

DEFLECTION CIRCUIT ADJUSTMENT
z
There are 2 modes of adjustment (setting value) ------ fv : 50Hz mode and fv : 60Hz mode ----- depending upon the kind of signals
(vertical frequency 50Hz / 60Hz).
z
When adjusted in fv : 50Hz mode, fv : 60Hz mode will be automatically set.
The setting (adjustment) using the REMOTE CONTROL UNIT is made on the basis of the initial setting values.
The setting values which adjust the screen to the optimum condition can be different from the initial setting values.
Item
Measuring
instrument
Test point Adjustment part Description
Adjustment
of



V.HEIGHT
&V.
POSITION
z
Remote
control
unit
1. VER. POSITION
3. VER. HEIGHT
[ fv : 50Hz mode]
1. Receive a cross-hatch signal.
2. Select
3. DEF.
from SERVICE MENU.
3. Select
1. VER. POSITION
with the MENU
▲
/
▼
key.
4. Set the initial setting value with the MENU - / + key.
5. Adjust
VER. POSITION
and adjust it to be vertical center as
shown in Fig.2, with the MENU - / + key.
6. Select
3. VER. HEIGHT
with the MENU key.
7. Set the initial setting value with the MENU - / + key.
8. Adjust
VER. HEIGHT
and make the vertical screen size
92%
of the picture size as shown in Fig. 1with the MENU - / + keys
of remote control unit.
Adjustment
of



HOR.
POSITION
z
Remote
control
unit
2. HOR.
POSITION
9. Receive a circle pattern signal.
10. Select
2. HOR POSITION
with the MENU
▲
/
▼
key.
11. Set the initial setting value of
2. HOR. POSITION
with the
MENU - / + key.
12. Adjust
2. HOR. POSITION
to make
H=H"
as shown in Fig.2
with the MENU - / + key.
Screen size
Picture size 100%
Screen
size
92%
size
100%
HH"
VER
CENTER
Fig.1
Fig.2
