No. 51818
AV29A10EUS
18

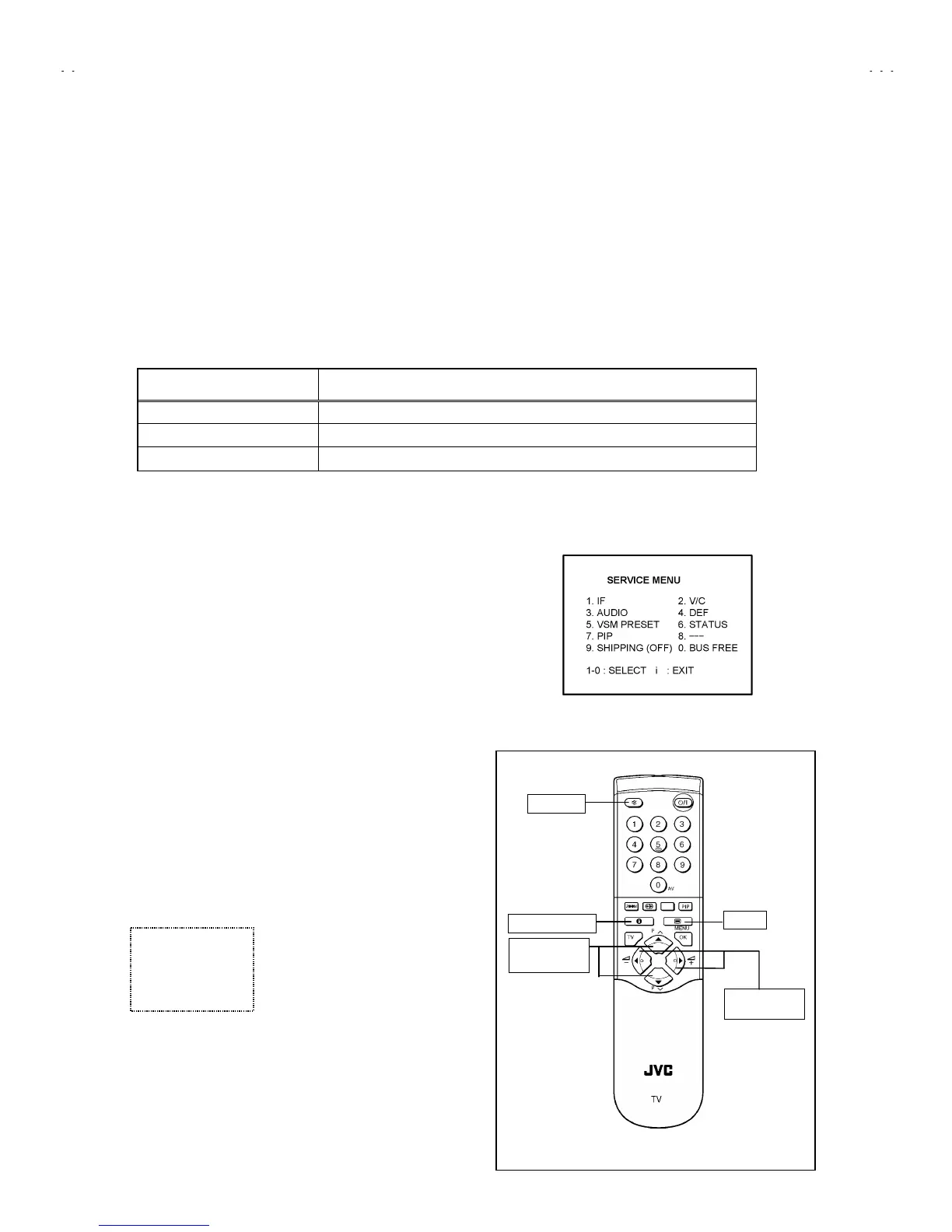

BASIC OPERATION SERVICE MENU
1. TOOL OF SERVICE MENU OPERATION
Operate the SERVICE MENU with the REMOTE CONTROL UNIT.
2. SERVICE MENU ITEMS
With the SERVICE MENU, various settings (adjustments) can be made, and they are broadly classified in the following items of settings
(adjustments):
(1)
1. IF
!!!!!!!!!!!!!!!!!!!!!!!
This mode adjusts the setting values of the IF circuit.
(2)
2.V/C
!!!!!!!!!!!!!!!!!!!!!!
This mode adjusts the setting values of the VIDEO / CHROMA circuit.
(3)
3.AUDIO
!!!!!!!!!!!!!!!!!!!
This mode adjusts the setting values of the multiplicity SOUND circuit.
(4)
4.DEF
!!!!!!!!!!!!!!!!!!!!!
This mode adjusts the setting values of the DEFLECTION circuit for each aspect mode given below.
ASPECT MODE Vertical frequency and Scan mode
REGULAR 100Hz Interlace / 60Hz Progressive
ZOOM 100Hz Interlace / 60Hz Progressive
16 : 9 100Hz Interlace / 60Hz Progressive
(5)
5.VSM PRESET
!!!!!!!!!!!!!
This mode adjusts the initial setting values of COOL,NOMAL and WARM.
(VSM : Video Status Memory)
3. BASIC OPERATION OF SERVICE MENU
(1)
How to enter SERVICE MENU
Press the
INFORMATION
key and the
MUTING
key of the
REMOTE CONTROL UNIT simultaneously (Fig.2), and the
SERVICE MENU screen (Fig. 1) will be displayed.
(2)
Selection of SUB MENU SCREEN
Press one of keys 1
#
5 of the REMOTE CONTROL UNIT
and select the SUB MENU SCREEN (See Fig. 3), form the
SERVICE MENU.
SERVICE MENU
5
SUB MENU
1. IF
2. V / C
3. AUDIO
4. DEF.
5. VSM PRESET
6. STATUS
7. PIP
8. - - -
9. SHIPPING (OFF)
0. BUS FREE
SERVICE MENU
Fig.1
Not to work
Fig.2
REMOTE CONTROL UNIT KEY ASSIGNMENT
INFORMATION
MENU
MUTING
FUNCTION
UP/DOWN
FUNCTION
LEFT / RIGHT
