JVC Black Crystal JLC47BC3002 User Manual

19
ENGLISH
Making Connections

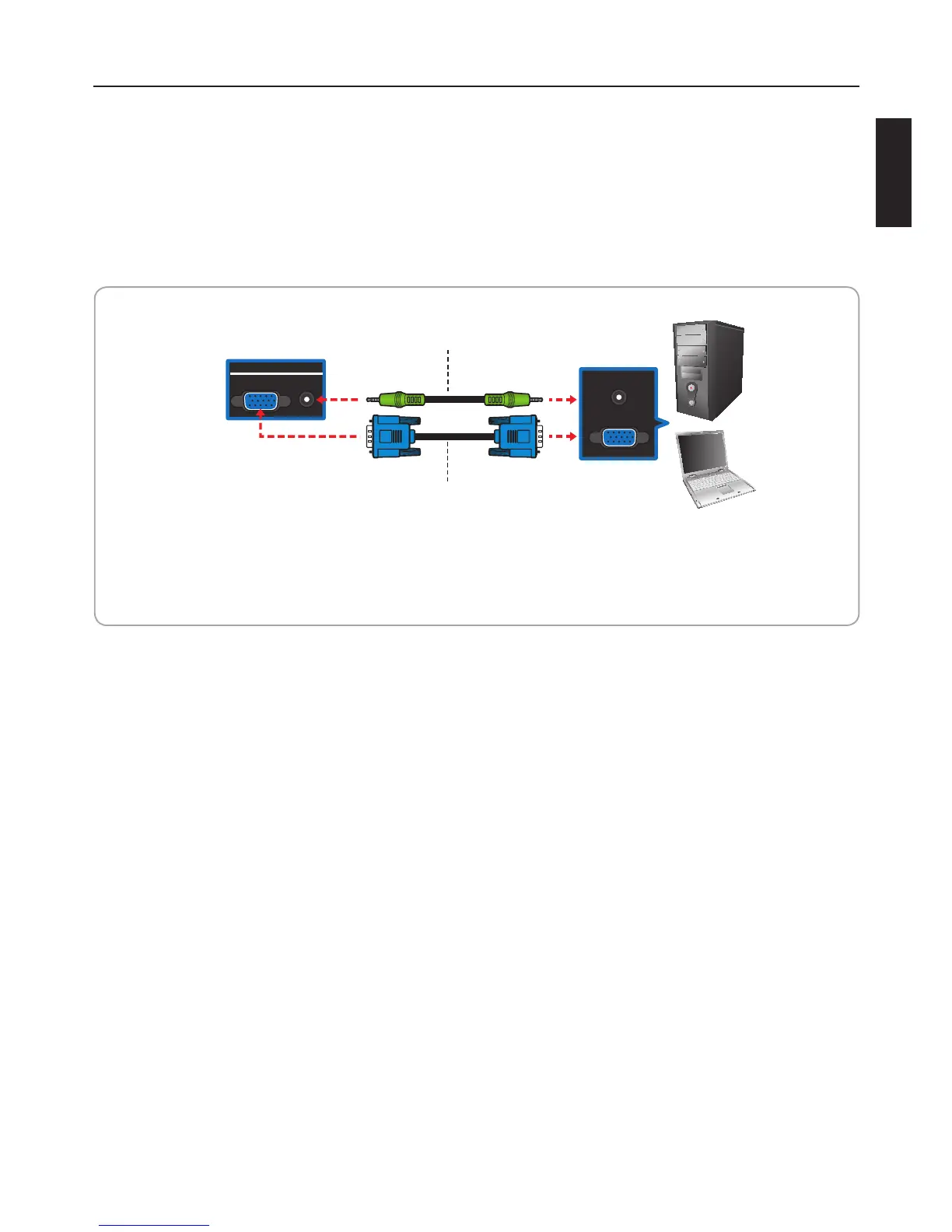

Connecting Computers and Laptops
1 Connect one end of a VGA cable to the PC port of the TV.
2 Connect the other end of the VGA cable to the RGB port of the computer or laptop.
3 For PC audio, connect a 3.5mm audio cable to the PC audio port of the TV and audio out port
of the computer or laptop.
PC / MUSIC
PC AUDIO / MUSIC
VGA
Audio out
TV
Computer / Laptop
VGA cable
Video IN
Video OUT
Audio OUTAudio IN
PC audio cable
Note:
tThe VGA cable and the PC audio cable are not supplied with the TV. Check your device package contents or
contact your retailer to purchase.
tThe TV will automatically go into power saving mode and turn o when no signal is detected for a period of time.
tThe TV is best viewed at native resolution: 1920 x 1080 @ 60Hz (1366 x 768 @ 60Hz for 32”).
