JVC BM-H2000PN Service Manual

BM-H2000PN

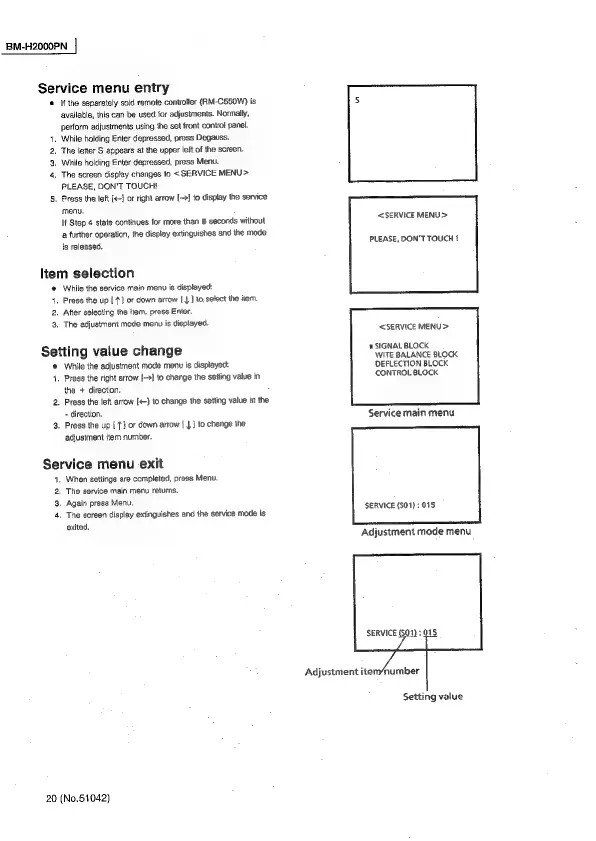

Service menu entry
R@ORo
if the separately sold remote controlter (RM-C550W) is
available, this can be used for adjustments. Normally,
perform adjustments using the set front controt panel.
. While holding Enter depressed, press Degauss.
, The letter S appears at the upper left of the screen.
. While holding Enter depressed, press Menu.
. The screen disptay changes to < SERVICE MENU>
PLEASE, DON’T TOUCH!
. Press the left [<] or right arrow [9] to display the service
menu,
If Step 4 state continues for more than 5 seconds without
a further operation, the display extinguishes and the mode
is released.
Item selection
°
While the service main menu is displayed:
1. Press the up [} or down arrow [ | ] to, select the item.
2.
3. The adjustment mode menu is displayed.
After selecting the item, press Enter.
Setting value change
an
While the adiustment mode menu is displayed:
Press the right arrow [>] to change the setting value in
the + direction.
. Press the left arrow [<] to change the setting value in the
+ direction.
. Press the up [ T } or down arrow { |] to change the
adjustment item number.
Service menu exit
1
When settings are completed, press Menu,
2, The service main menu returns.
3.
4. The screen display extinguishes and the service mode is
Again press Menu.
exited.
20 (No.51042)
<SERVICE MENU>
PLEASE, DON’T TOUCH t
<SERVICE MENU>
> SIGNAL BLOCK
WITE BALANCE BLOCK
DEFLECTION BLOCK
CONTROL BLOCK
Service main menu
SERVICE (S01): 015
Adjustment mode menu
SERVICE (S04):
Adjustment item/number
Setting value
