JVC BM-H2000PN Service Manual

BM-H2000PN

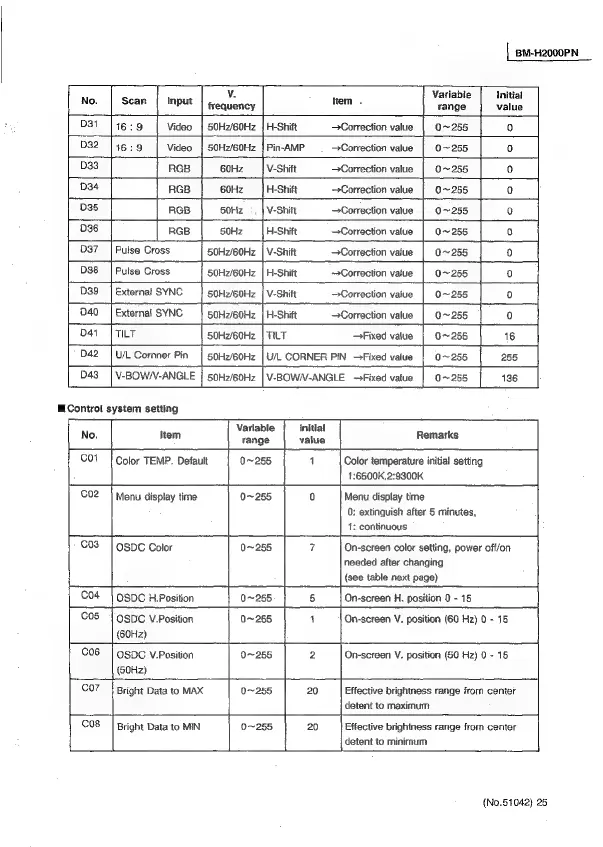

Control system setting
———+
No. Scan [| Input eacuce Item . palong me)
D31 |46:9 | Video | SCHz/60Hz | H-Shitt Correction value | 0~2665 0
032 |46:9 | Video | S0Hz/60Hz | Pin-AMP Correction value | 0~255 0
D33 RGB 60Hz V-Shift Correction value 0~255 0
D34 RGB 60Hz | H-Shift Correction value | 0~255 0
036 RGB 50Hz — |} V-Shift Correction value | 0~255 0
036 RGB | S0Hz | H-Shift Correction value | 0~255 0
037 | Pulse Cross 50Hz/60Hz | V-Shift Correction vaiue | 0~255 a
D88 | Pulse Cross 50Hz/60Hz | H-Shift Correction value | 0~255 0
D39__| External SYNC 50Hz/60Hz | V-Shift —Correction value | 0~255 0
D040 | External SYNC S0HzZ/60Hz | H-Shift Correction value 0~255 0
Da1
|
TILT
50Hz/60Hz
|
TILT
Fixed
value
|
0~255
16
U/L Cornner Pin | 50Hz/60Hz | U/L CORNER PIN Fixed value 255
V-BOW/V-ANGLE | 50Hz/60Hz | V-BOW/V-ANGLE Fixed value 136
Variable initial
range Remarks
COT | Color TEMP. Default Color temperature initial setting
1:6500K,2:9300K
C02 | Menu display time 0~255 0 Menu display time
0: extinguish after 5 minutes,
14: continuous
C03 | OSDC Color 0~255 7 On-screen color setting, power off/on
needed after changing
(see table next page)
C04 | OSDC H.Position 0~255 5 On-screen H. position 0 - 15 =
cos | OSDC V.Position 0~255 1 On-screen V. position (60 Hz) 0 - 15
(60Hz)
C06 | OSDC V.Position 0~255 2 On-screen V. position (50 Hz) 0 - 15
{60Hz)
C07 | Bright Data to MAX 0~255 20 Effective brightness range from center
detent to maximum
C08 | Bright Data to MIN 0~255 20 Effective brightness range from center
detent to minimum
(No.51042) 25
