JVC BM-H2000PN Service Manual

Manual Change Information|

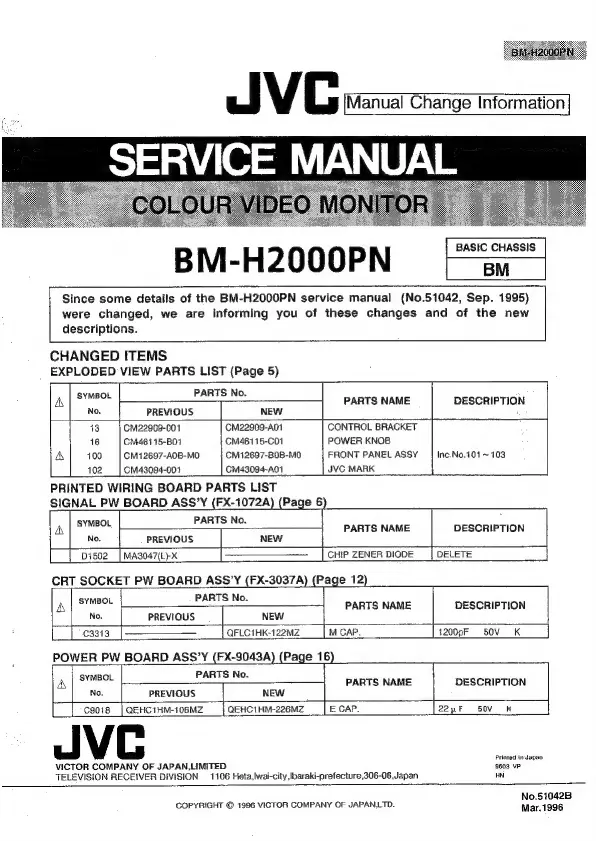

SERVICE MANUAL
ee
BASIC CHASSIS
BM-H2000PN BM
Since some details of the BM-H2000PN service manual (No.51042, Sep. 1995)
were changed, we are informing you of these changes and of the new
descriptions.
CHANGED ITEMS
EXPLODED VIEW PARTS LIST (Page 5)
A | ee PARTS No. PARTS NAME DESCRIPTION
No. PREVIOUS NEW
13 CM22909-001 CM22909-A01 CONTROL BRACKET
16 CM46115-B01 M46115-C01 POWER KNOB
A 100 CM12697-A0B-MO CMi2697-BOB-M0 FRONT PANEL ASSY Inc.No,101 ~ 103
102 CM43094-004 CM43094-A01 JVC MARK
PRINTED WIRING BOARD PARTS LIST
SIGNAL PW BOARD ASS’Y (FX-1072A) (Page 6)
SYMBOL
PARTS
No.
:
A
:
PARTS
NAME
DESCRIPTION
No.
PREVIOUS
NEW
Di502
|
MA3047(L)-X
4
CHIP
ZENER
DIODE
DELETE
CRT SOCKET PW BOARD ASS’Y (FX-3037A) (Page 12)
PARTS No.
Ve cies PARTS NAME DESCRIPTION
No. PREVIOUS NEW
C3313 —_—_—— | QFLC1HK-122MZ M CAP. 1200pF_ 50V_iK
POWER PW BOARD ASS’Y (FX-9043A) (Page i
‘igor PARTS No.
a|™ PARTS NAME DESCRIPTION
No. PREVIOUS NEW
C9018 QEHC1HM-106MZ QEHC1HM-226MZ E CAP. 22yF 50V_M
u V C Printed in dapan
VICTOR COMPANY OF JAPAN,LIMITED 9603 VP
TELEVISION RECEIVER DIVISION 1106 Heta,lwai-city,Ibaraki-prefecture,306-06,Japan HN
No.51042B
COPYRIGHT © 1996 VICTOR COMPANY OF JAPAN,LTD. Mar.1996
