JVC BM-H2000PN Service Manual

B 2000PN
Contrast
Oscilloscope
; a Adjustment a

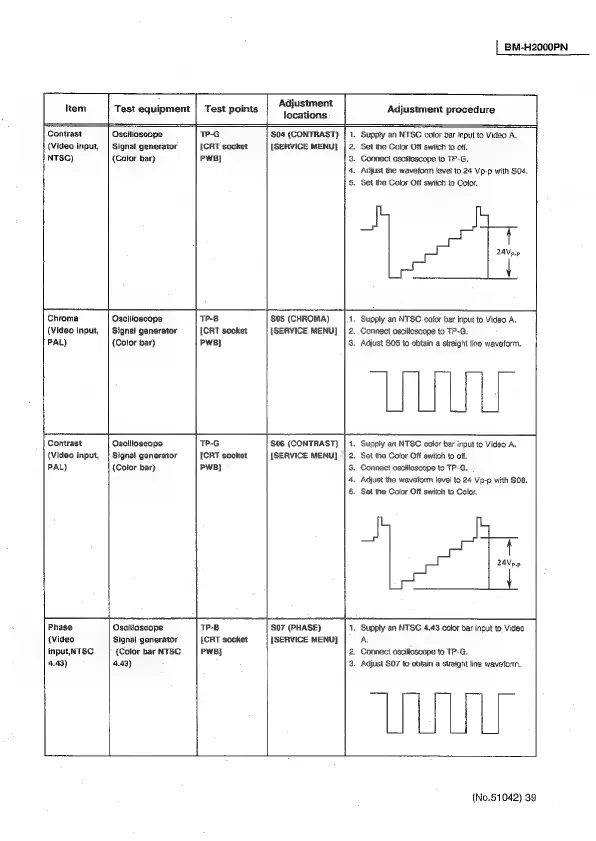

It it | Test poin 7 Adjustment
lem Test equipmen ‘est points ioeations justment procedure
=
Contrast Oscitloscope TP-G $04 (CONTRAST) | 1. Supply an NTSC color bar input to Video A.
(Video input, | Signa! generator [CRT socket [SERVICE MENU] ; 2. Set the Color Off switch to off.
NTSC) (Color bar} Pwe] 3. Connect oscilloscope to TP-G.
4. Adjust the waveform jevel to 24 Vp-p with S04.
5, Set the Color Off switch to Color.
24Vp.p
Chroma Oscilloscope ‘TP-B $05 (CHROMA) 1. Supply an NTSC color bar input to Video A,
(Video input, | Signal generator [CRT socket JSERVICE MENU] | 2. Connect oscilloscope to TP-G.
PAL) {Color bar) Pwe] 3. Adjust S05 to obtain a straight line waveform.
TP-G
$06 (CONTRAST) | 1. Supply an NTSC color bar input to Video A.
1
(Video input, | Signal generator [CRT socket {SERVICE MENU] | 2. Set the Color Off switch to off.
PAL) (Color bar) PWB] 3. Connect oscilloscope to TP-G.
4, Adjust the waveform level to 24 Vp-p with S06.
5. Set the Color Off switch to Color,
24Vpp
Phase Oscilloscope TP-B $07 (PHASE) 1. Supply an NTSC 4.43 color bar input to Video
(Video Signal generator [CRT socket [SERVICE MENU] A
input,NTSC {Color bar NTSC | PWB] 2. Connect oscilloscope to TP-G.
4.43) 4.43) 3. Adjust S07 to obtain a straight line waveform.
(No.51042) 39
