Connecting up Connection
This page is for when connecting the main unit with
other devices.
Connecting subwoofer
Connecting with other audio device
When you want to hear sound from the subwoofer,
press
S.WFR OUT
on the remote control to display
“SUB WFR ON” (Sub Woofer ON) on the display
window on the main unit. Each time you press the
button, the display toggles between “ON” and “OFF”.
NOTE
When "SUB WFR ON" is selected, bass sound from
the left and right speakers will be automatically
lowered and the bass sound will be emitted mainly
from the subwoofer.
Connecting with a digital device
CAUTION
For details of signals to be output, refer to page
31.
If connecting the main unit with equipment with the
function of a Dolby Digital decoder, the setting in
“D. RANGE COMPRESSION” of “AUDIO”
(
A
page 31) will be invalid regarding sound from
the digital audio output of the main unit.
Connecting other devices

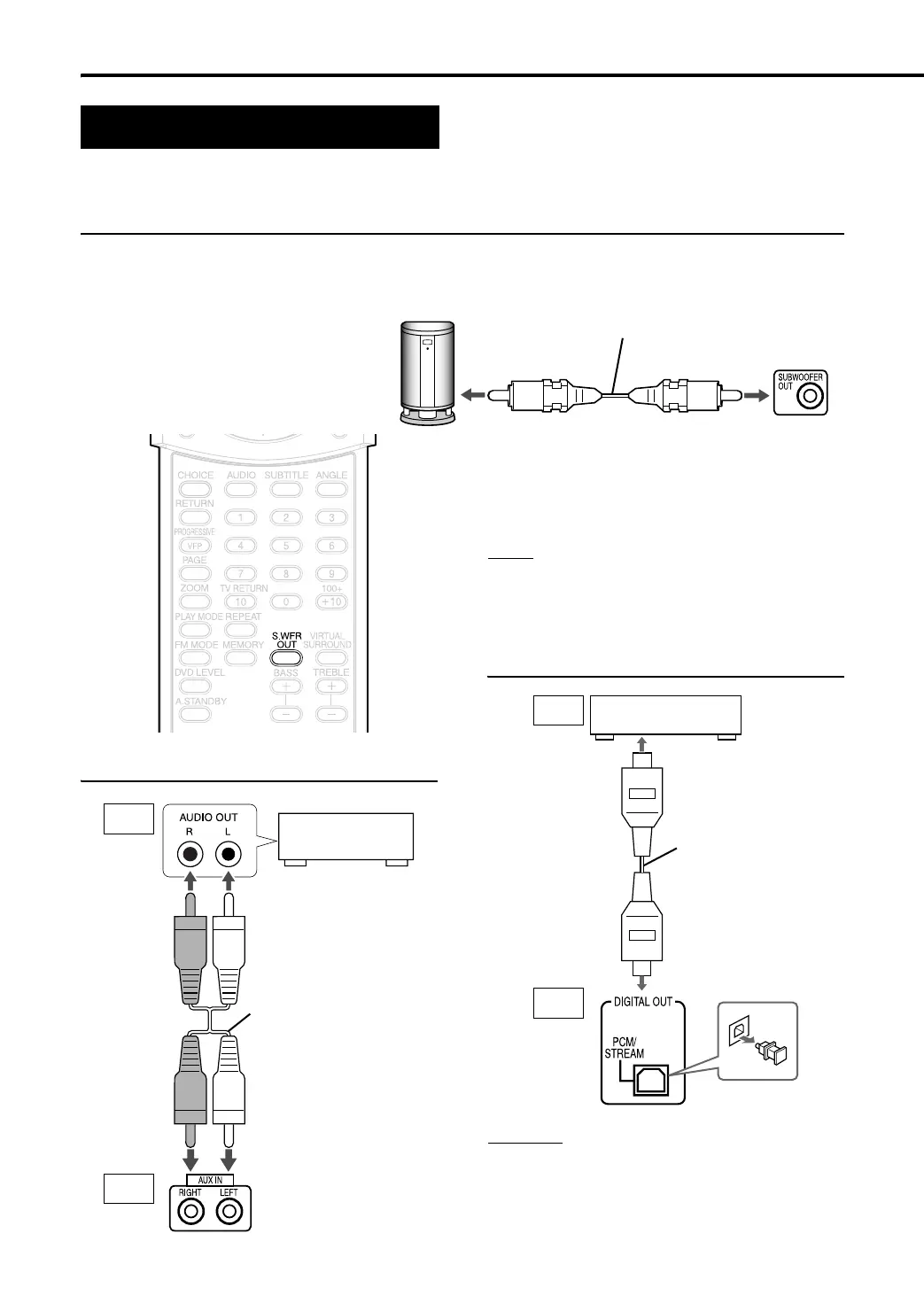

With an amplifier-built in subwoofer (sold separately), you can enjoy a more dynamic bass sound.
Refer to the manual of the subwoofer for details.
Audio cord (sold separately)
(If an audio cord comes with the amplifier-built-in subwoofer,
you can use the cord.)
Amplifier-built-in subwoofer
(sold separately)
Main unit
Main unit
Output
Input
Other audio
device
Audio cord (sold
separately)
Output
Optical digital cord
(sold separately)
Digital device
(MD recorder etc.)
To digital input terminal
Input
Main unit
(continued) – Do not turn on the power until the connection is complete –
