Caution: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1 Front: No obstructions and open spacing.
2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions
below.
3 Bottom: Place on the level surface. Maintain an adequate air path for ventilation by
placing on a stand with a height of 10 cm or more.

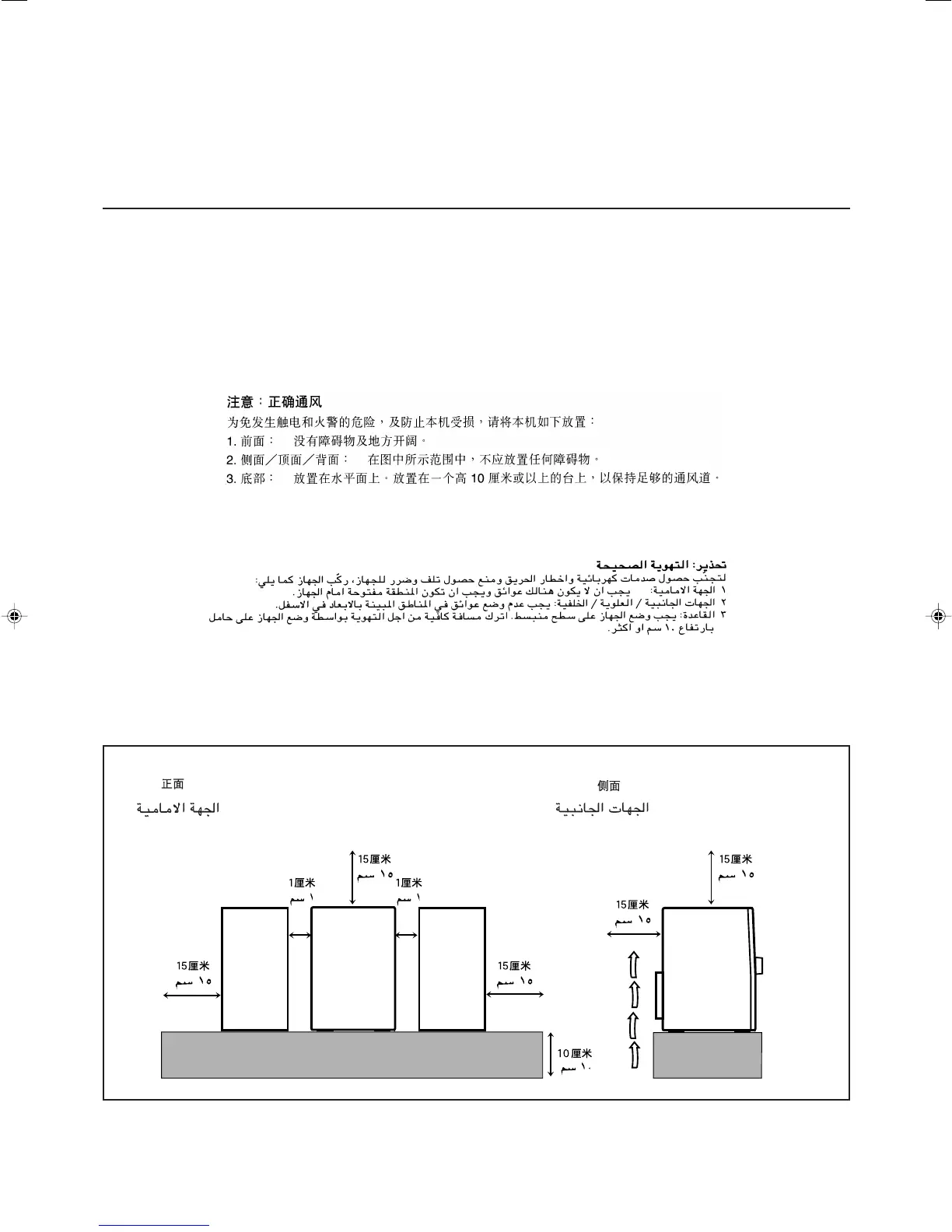

Front view Side view
15 cm
15 cm
10 cm
1 cm
CA-HXZ77D
CA-HXZ55D
1 cm
15 cm
15 cm15 cm
