Front Panel
Display Window
SLEEP
DAILY REC
MONO
STEREO
SOUND MODE
kHz
MHz
REPEAT
ALL 1CD
PROGRAM
RANDOM
2 31
1
5
9
13
2
6
10
14
3
7
11
15
4
8
12
16
PRO LOGIC
3 STEREO
A B REC
12 3 4 5
6789qp
1Disc trays
2
(standby/on) button and STANDBY lamp (7, 27–
28)
3 Display window
4 Remote sensor
5 PANEL OPEN/CLOSE button (7)
Pressing this button also turns on the unit.
6 PHONES jack (8)
7 TAPE 23 button and lamp (7, 18, 23–24)
Pressing this button also turns on the unit.
8 MIC LEVEL control (24–25)
9 MIC 1 and MIC 2 jacks (24–25)
p AUX button and lamp (5, 7)
Pressing this button also turns on the unit.
q Deck A cassette holder (18)
w 0 EJECT button for deck A (18, 24)
e 0 (CD tray open/close) buttons (10, 12–13, 18, 23)
Pressing this button also turns on the unit.
r Disc number buttons and lamps (CD 1, CD 2, and CD 3)
(10–11, 13–16, 24)
Pressing this button also turns on the unit.
t VOLUME control (8, 24–25)
y CD 6 (play/pause) button and lamp (7, 10, 12–15, 23,
25, 27)
Pressing this button also turns on the unit.
u FM/AM button and lamp (7, 17)
Pressing this button also turns on the unit.
i Deck B cassette holder (18)
o EJECT 0 button for deck B (21–25)
Powered Rolling Panel
; PRESET – / + buttons (17)
4 / ¢ (reverse search/forward search) buttons
(7, 9, 11–12, 15, 23, 25, 26, 28–30)
a REVERSE MODE button (18, 23–25)
s REC START/STOP button (21–22, 24–27, 30)
d DUBBING button (24)
f CD REC START button (22–25)
g DECK A/B button (18)
h TIMER/CLOCK button (7, 26–30)
j SUBTITLE button (16)
k SET button (7, 11, 17, 25–30)
SEA CONTROL button (9)
l MPX button (16, 24, 26)
/ CANCEL button (7, 12, 26–27)
DEMO button (6)
z 7 (stop) button (7, 10–13, 18, 24–25, 27)
x TUNING – / + buttons (17)
1 / ¡ (fast left/fast right) buttons (9, 11, 18)
c PRO LOGIC/3 STEREO button (19)
v PROGRAM/RANDOM button (11, 22–23)
b EDIT button (12, 25)
n REPEAT button (11–13)
m S. A. BASS (Signal Adaptive Bass) button and lamp (8)
, SOUND MODE button (8)
. – VCD NUMBER + button (14)

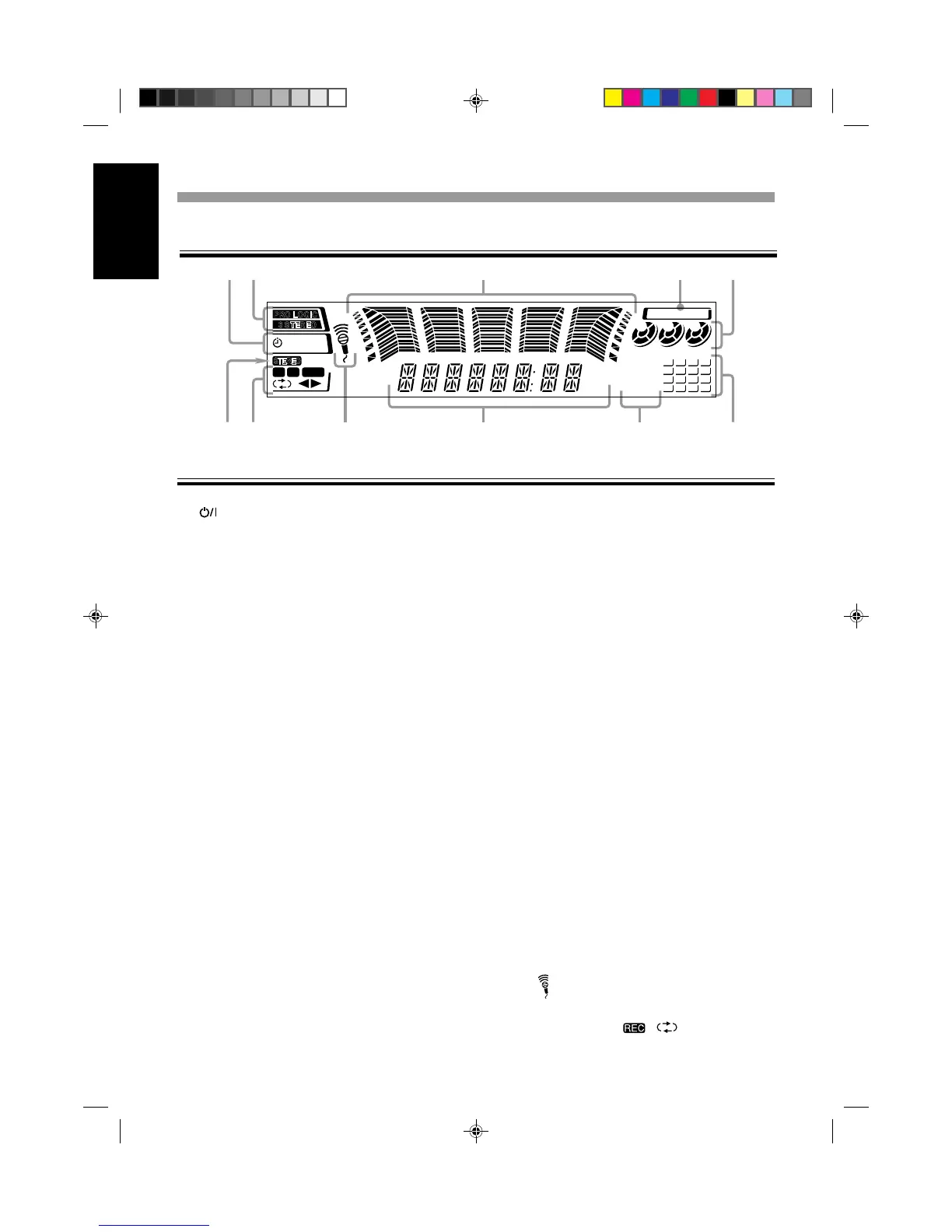

Display window
1 Timer indicators
• b SLEEP, REC, and DAILY indicators
2 Surround mode indicators
• PRO LOGIC and 3 STEREO indicators
3 Audio level indicator
SEA (Sound Effect Amplifier) pattern indicator
4 SOUND MODE indicator
5 Disc indicators
6 CD track number indicators
7 CD play mode indicators
• REPEAT (ALL/1CD/1), PROGRAM and RANDOM
indicators
8 Main display
• Shows the source name, frequency, etc.
9 Echo (
) indicators
p Tape operation indicators
• A/B (operating deck),
, (reverse mode) and
23 (tape direction) indicators
q Tuner operation indicators
• STEREO and MONO indicators
