6
English
CAUTION: Make all connections before plugging the Unit into an AC power outlet.

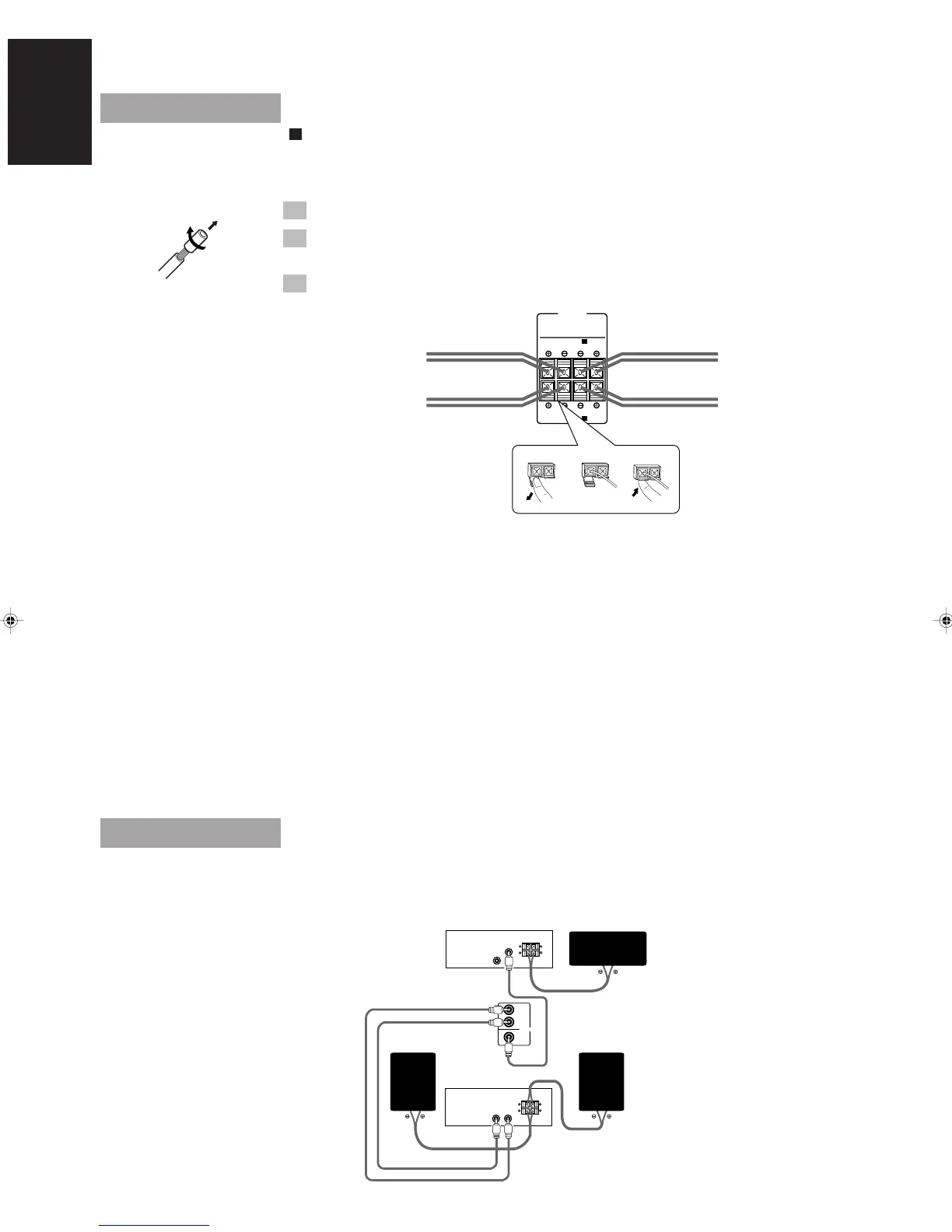

Connecting the Speakers
Please refer to instructions for speakers as well when you connect speakers.
For each speaker connect one end of the speaker wire to the speaker terminals on the back of the System
and one end to the speaker.
1. Open each terminal.
2. Insert the end of the speaker wire as shown (be sure to remove the
insulation at the end of each wire first.).
3. Close the terminals to clamp the speaker wires firmly in place.
RIGHT LEFT
RIGHT LEFT
SPEAKERS
SPEAKERS A
SPEAKERS B
SPEAKERS A
Connect the MAIN Speakers to the SPEAKERS A terminal on the rear panel as follows.
Connect the gray (+) and the blue (–) terminals of the right-side MAIN Speaker to the gray (+) and
blue (–) terminals marked RIGHT on the rear panel.
Connect the gray (+) and the blue (–) terminals of the left-side MAIN Speaker to the gray (+) and
blue (–) terminals marked LEFT on the rear panel.
SPEAKERS B
Connect the Subwoofers to the SPEAKERS B terminal on the rear panel as follows.
Connect the red (+) and black (–) terminals of the right-side Subwoofer to the red (+) and black (–)
terminals marked RIGHT on the rear panel.
Connect the red (+) and black (–) terminals of the left-side Subwoofer to the red (+) and black (–)
terminals marked LEFT on the rear panel.
IMPORTANT: Use speakers with the correct impedance only. The correct impedance is indicated
on the back panel.
CAUTION: If a TV is installed near speakers, the TV may display irregular colours. In this case,
set the speakers away from the TV.
Right-side MAIN
Speaker
Left-side MAIN
Speaker
Right-side Subwoofer Left-side Subwoofer
123
For Dolby Pro Logic Reproduction
For Dolby Pro Logic reproduction, you need a center speaker, two rear speakers, and two amplifiers (for
connecting the center and rear speakers).
Connection:
Drive speaker outputs 1 and 2 at the
same time.
Amplifier
Rear Speaker Rear Speaker
1
2
Center Speaker
IMPUT jacks
Amplifier
IMPUT jacks
LEFT
RIGHT
CENTER
REAR
PRE OUT
CA-TD77R[EF]/EN/p1-25 97.7.24, 3:14 PM6
