JVC CA-UXF2B Service Manual

(No.MB736<Rev.003>)1-7
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
SECTION 3
DISASSEMBLY
3.1 Main body (Used model: UX-F2E)

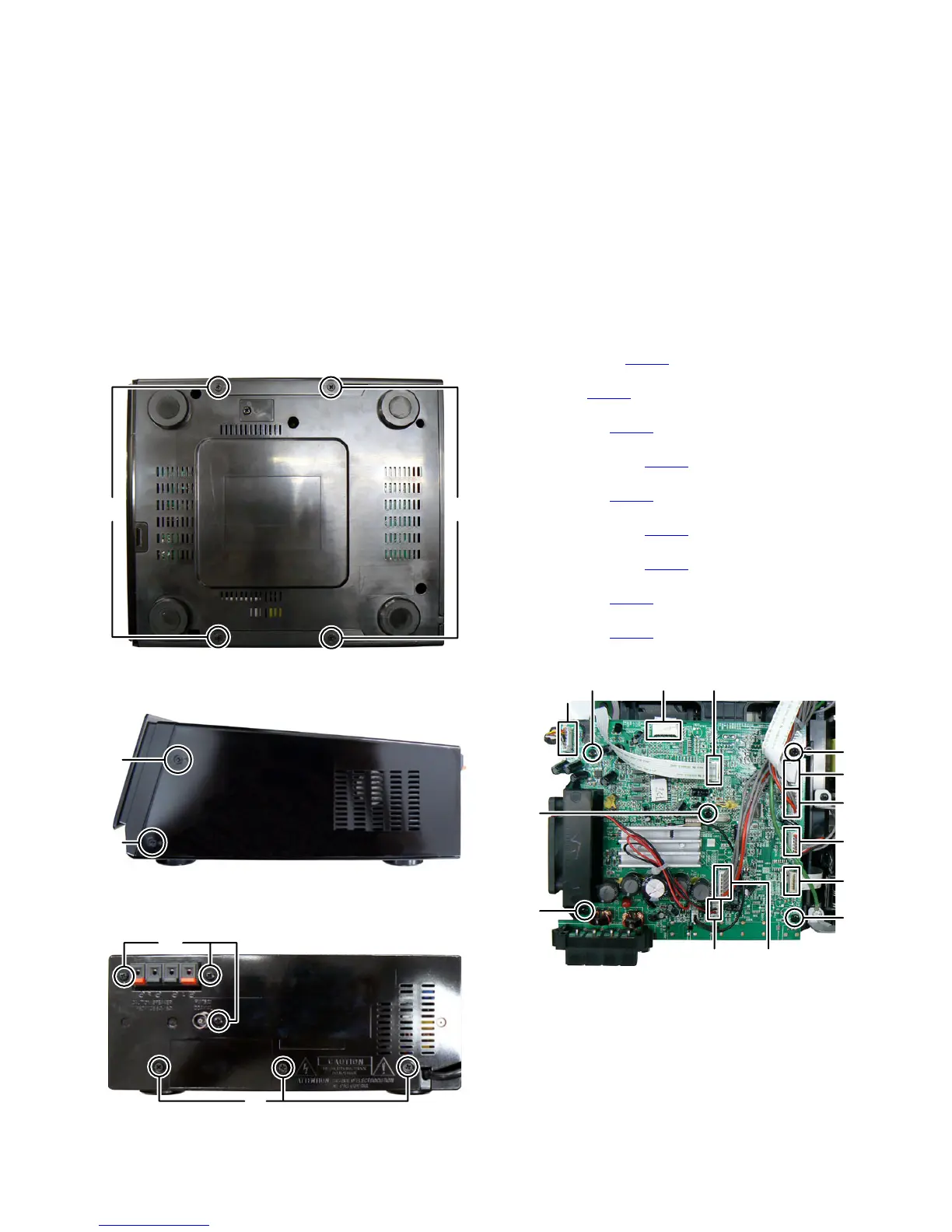

3.1.1 Removing the Top cover (See Fig.1, 2, 3)
(1) Remove the four screws A attaching the Top cover. (See
Fig.1)
Fig.1
(2) Remove the two screws B and two screws C attaching both
side of the Top cover. (See Fig.2)
Fig.2
(3) Remove the three screws D and three screws E attaching
the Top cover. (See Fig.3)
Fig.3
3.1.2 Removing the Main board (See Fig.4)
(1) Disconnect the connector wire from Jack board connected
to connector CN606
of the Main board.
(2) Disconnect the connector wire from FAN connected to con-
nector CN612 of the Main board.
(3) Disconnect the card wire from Upgrade board connected to
connector CN605
of the Main board.
(4) Disconnect the connector wire from SMPS board connect-
ed to connector CN603
of the Main board.
(5) Disconnect the card wire from MPEG board connected to
connector CN609 of the Main board.
(6) Disconnect the connector wire from MPEG board connect-
ed to connector CN607 of the Main board.
(7) Disconnect the connector wire from SMPS board connect-
ed to connector CN601
of the Main board.
(8) Disconnect the card wire from Display board connected to
connector CN602 of the Main board.
(9) Disconnect the card wire from Tuner pack connected to
connector CN604 of the Main board.
(10) Remove the five screws F attaching the Main board.
Fig.4
A
A
B
C
D
E
F
F
F
F
F
CN606
CN605CN604
CN612 CN603
CN609
CN607
CN601
CN602
