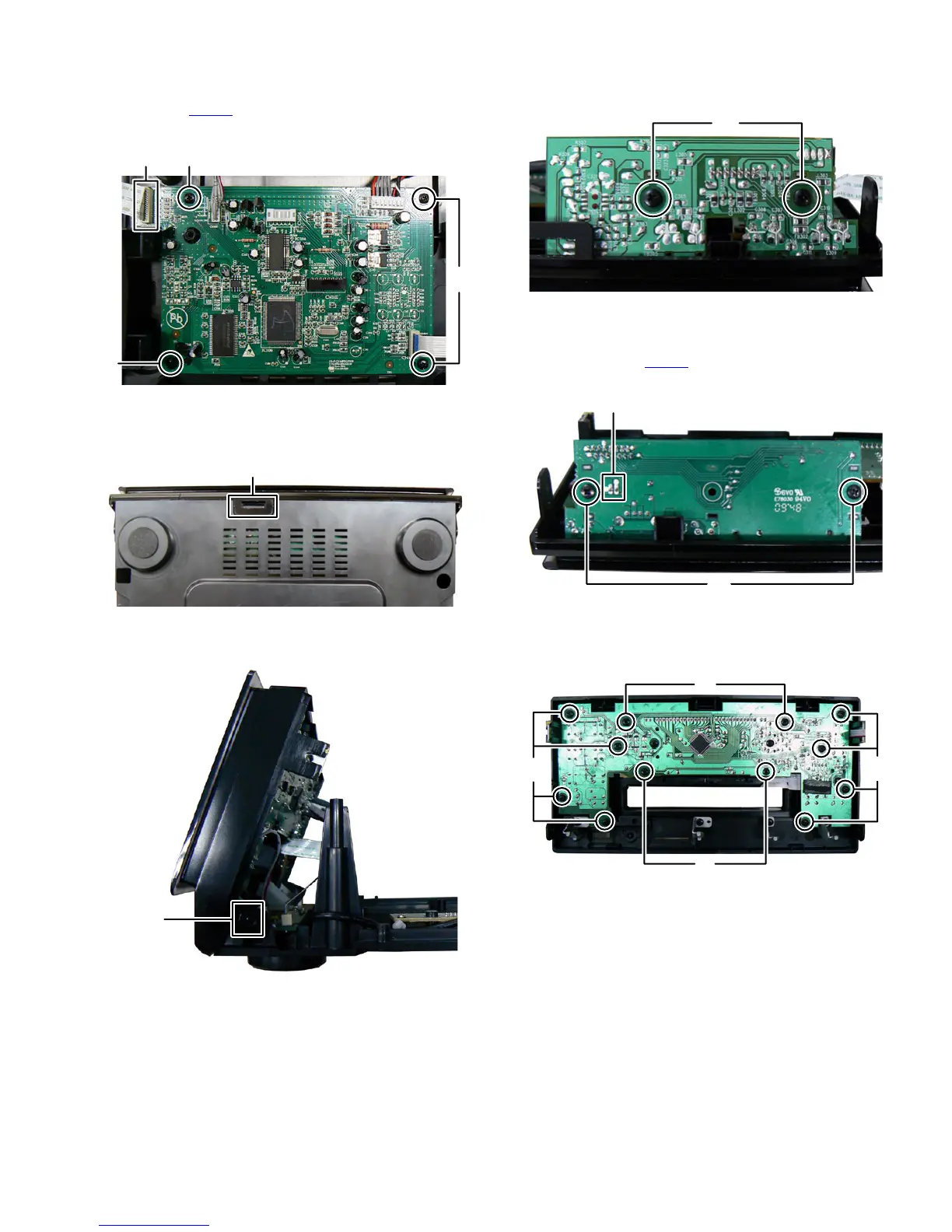

3.1.5 Removing the MPEG board (See Fig.12)
(1) Disconnect the card wire from USB board connected to
connector CN108
of the MPEG board.
(2) Remove the four screws P attaching the MPEG board.
Fig.12
3.1.6 Removing the Front panel (See Fig.13, 14)
(1) Disengage one hook a engaged Front panel. (See Fig.13)
Fig.13
(2) Disengage two hooks b engaged both side of the Front
panel. (See Fig.14)
Fig.14
3.1.7 Removing the Jack board (See Fig.15)
(1) Remove the two screws Q attaching the Jack board.
Fig.15
3.1.8 Removing the USB board (See Fig.16)
(1) Disconnect the connector wire from Display board connect-
ed to connector CN203
of the USB board.
(2) Remove the two screws R attaching the USB board.
Fig.16
3.1.9 Removing the Display board (See Fig.17)
(1) Remove the twelve screws S attaching the Display board.
Fig.17
CN108
P
P
P
hook
a
hook b
Q
R
CN203
S
S
S
S
