CH-X1500
1-5

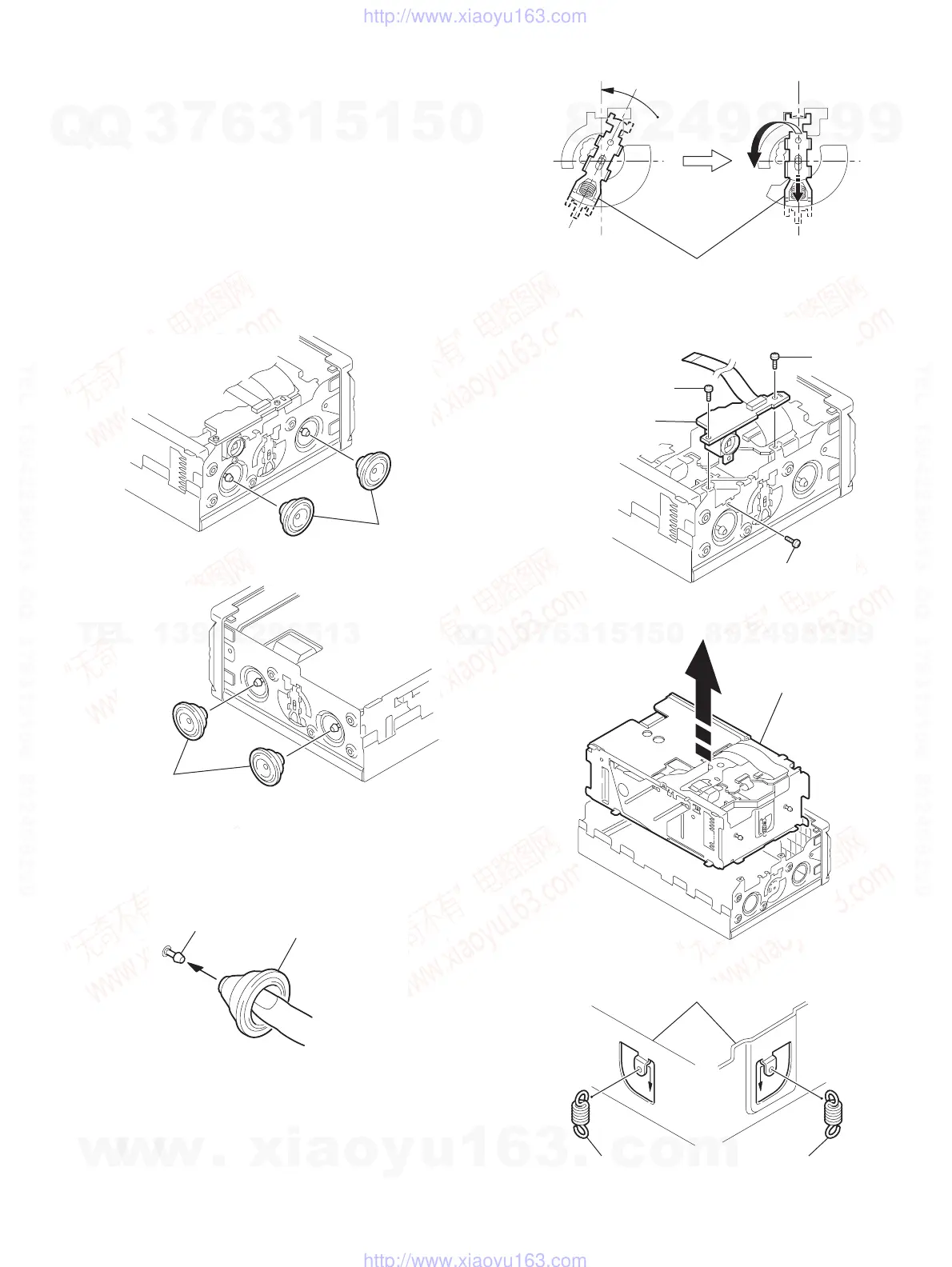

2.3.2 Removing the top cover (See fig.5~9)
(1) Pull out the dampers, being careful not to damage them.
REFERNCE:
When reattaching a damper, insert your finger to push
out the center of the damper to mount it on the damper
shaft, as shown in Fig. 6-1.
(2) Turn the damper spring bracket toward the top at a right
angle as shown in Fig. 7, then push down the lower side
of the damper spring bracket to lift it off.
(3) Remove the three screws C and D attaching the DIN jack
board assembly, and remove.
(4) Lift the changer unit upward.
(5) Remove the damper springs from the mechanism chassis
if required.
REFERENCE:
To reassemble, refer to the diagram below.
Fig.5
Fig.6
Fig.6-1
Fig.7
Fig.8
Fig.9
Fig.9-1
Dampe
Damper
Damper shaft
Damper
Push out with your finger
before attaching
pply alcohol to the shaft then
immediately attach the damper. (After
attaching, check that the shaft is
correctly inserted.)
Damper spring bracket
Turn to the top position (at a right
angle) ,then the push down to lift off.
DIN jack board
D
C
D
Remove the card
wire if required
Changer unit
Mechanisum chassis
Damper spring
Black
(Magazine side)
Damper spring
Silver
(Mechanisum side)
