CH-X400/CH-X450
1-12
Tray motor
1. Remove the two screws (11) securing the tray motor.
2. Remove the two screws (12) to remove the tray motor
assembly from the tray motor holder.
Separation of the chassis L assembly and
ahassis R assembly
1. Remove the two screws (13) retaining the chassis "L" and
"R" assemblies.
2. Slide the chassis L assembly toward the front and detach it,
then remove the chassis "L" upward.

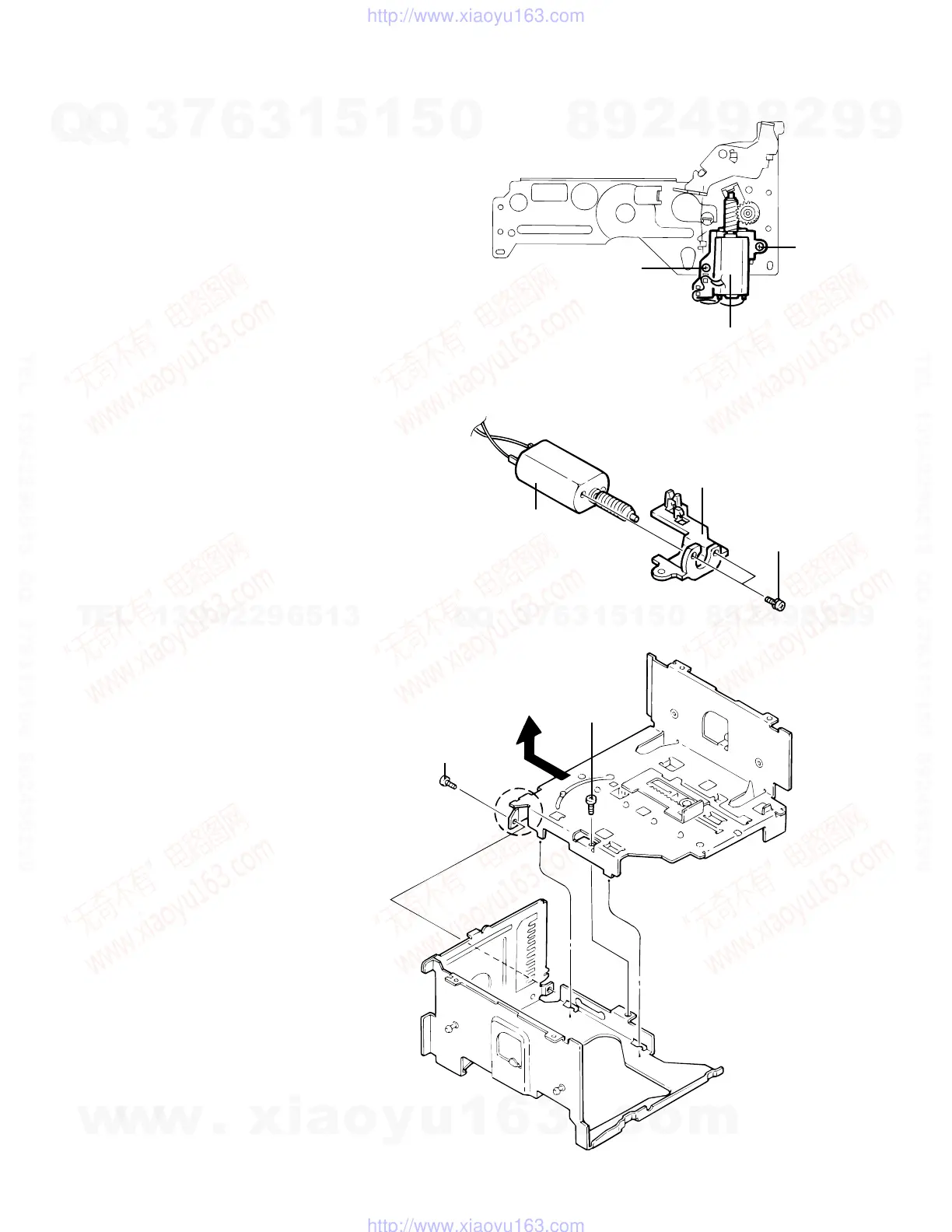

Fig. 26
Fig. 27
Fig. 28
Tray motor assembly
Tray motor
Tray motor holder
Slide and remove upward as
shown by the arrow
Front side
