JVC CH-X400 - Wiring Connections

ABC
1
2
3
4
5

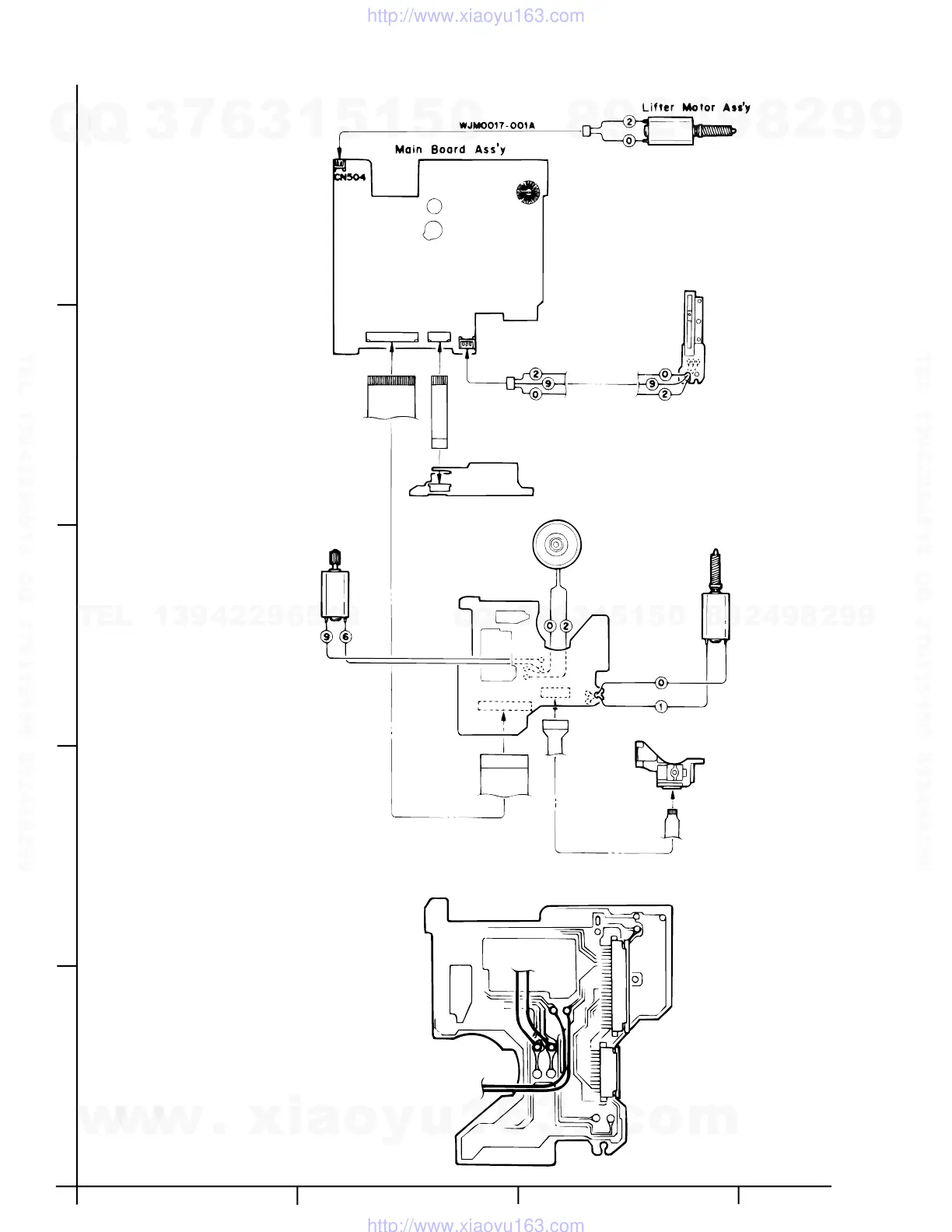

Wiring connections
Wiring of mechanism board section
Feed Motor Ass'y
QUQ710-2614BJ
QUQ110-1013BJ
Connect Board
CN503 CN904
CN601
WJM0017-002A
CN903
Spindol Motor Ass'y
Mechanism
Board Ass'y
(SURFACE SIDE)
Sensor Ass'y
Tray Motor Ass'y
CN501
CN502
Pick Up Ass'y
LV30450-003A
1-26
CH-X400/CH-X450
