CX-60ME

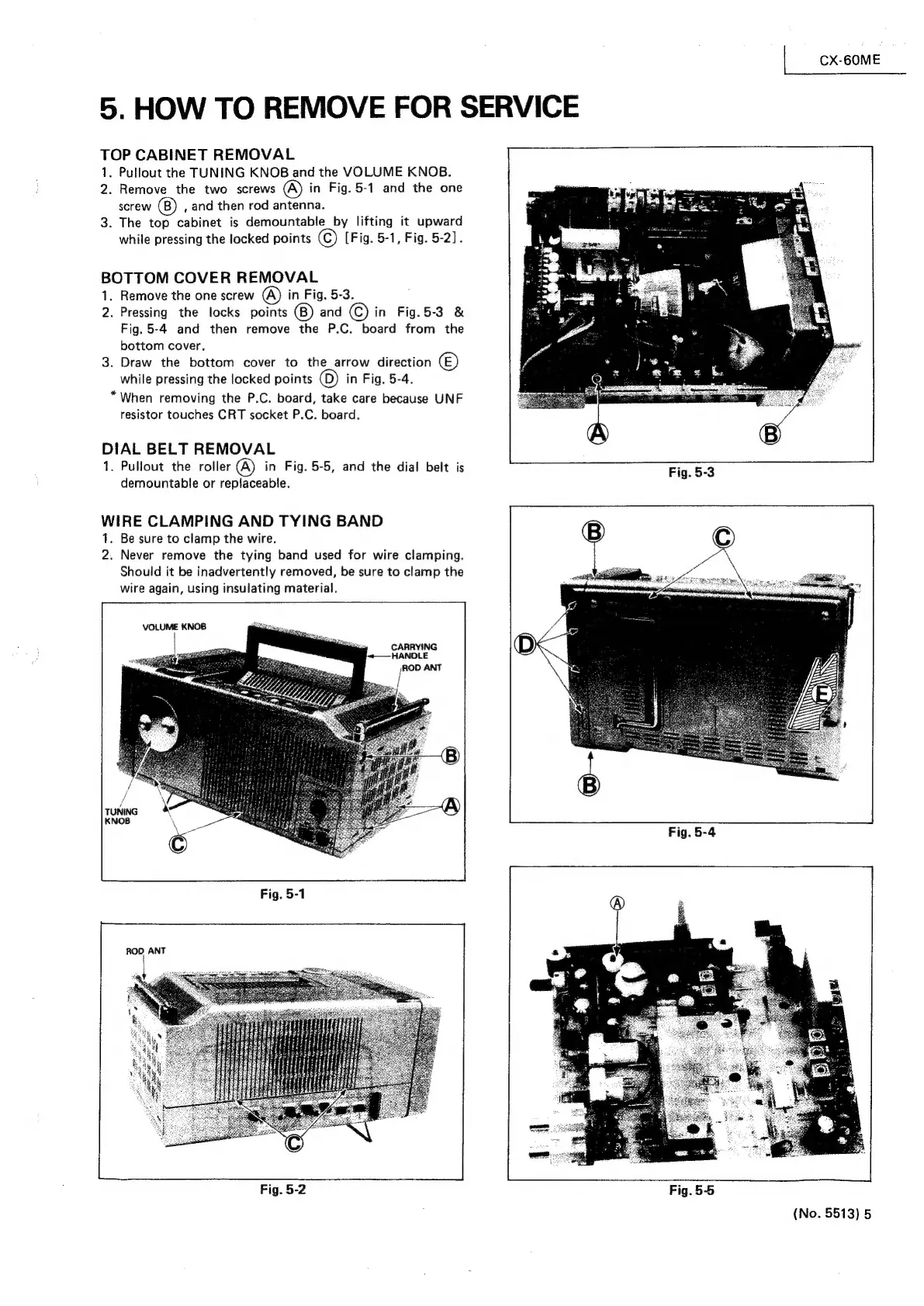

5. HOW TO REMOVE FOR SERVICE
TOP CABINET REMOVAL
1. Pullout the TUNING KNOB and the VOLUME KNOB.
2. Remove the two screws @ in Fig. 5-1 and the one
screw , and then rod antenna.
3. The top cabinet is demountable by lifting it upward
while pressing the locked points © (Fig. 5-1, Fig. 5-2].
BOTTOM COVER REMOVAL
1. Remove the one screw @) in Fig. 5-3.
2. Pressing the locks points and © in Fig.5-3 &
Fig. 5-4 and then remove the P.C. board from the
bottom cover.
3. Draw the bottom cover to the arrow direction ©
while pressing the locked points ©) in Fig. 5-4.
*When removing the P.C. board, take care because UNF
resistor touches CRT socket P.C. board.
DIAL BELT REMOVAL
1. Pullout the roller (A) in Fig. 5-5, and the dial belt is
demountable or replaceable.
WIRE CLAMPING AND TYING BAND
1. Be sure to clamp the wire.
2. Never remove the tying band used for wire clamping.
Should it be inadvertently removed, be sure to clamp the
wire again, using insulating material.
VOLUME KNOB
CARRYING
}~—— HANDLE
/ROD ANT
Fig. 5-4
ROD ANT
(No. 5513) 5
