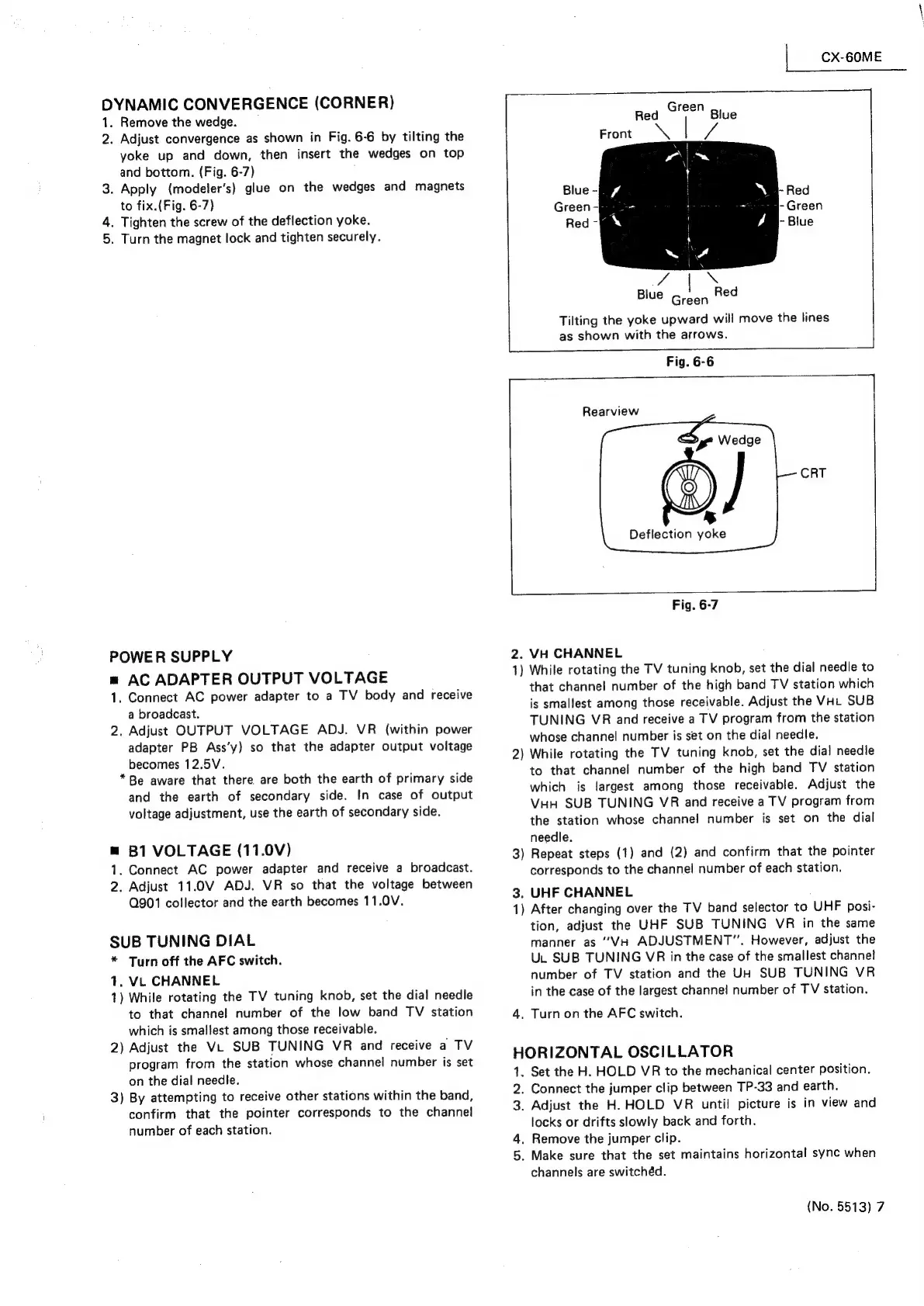

DYNAMIC CONVERGENCE (CORNER)
1. Remove the wedge.
2.
Adjust
convergence
as
shown
in
Fig.
6-6
by
tilting
the
yoke
up
and
down,
then
insert
the
wedges
on
top
and
bottom.
(Fig.
6-7)
;
3.
Apply
(modeler’s)
glue
on
the
wedges
and
magnets
to
fix.(Fig.
6-7)
4. Tighten the screw of the deflection yoke.
5.
Turn
the
magnet
lock
and
tighten
securely.
POWER SUPPLY
= AC ADAPTER OUTPUT VOLTAGE
1.
Connect
AC
power
adapter
to
a
TV
body
and
receive
a
broadcast.
2. Adjust OUTPUT VOLTAGE ADJ. VR (within power
adapter PB Ass’y) so that the adapter output voltage
becomes 12.5V.
*Be
aware
that
there
are
both
the
earth
of
primary
side
and
the
earth
of
secondary
side.
In
case
of
output
voltage
adjustment,
use
the
earth
of
secondary
side.
m B1 VOLTAGE (11.0V)
1.
Connect
AC
power
adapter
and
receive
a
broadcast.
2.
Adjust
11.0V
ADJ.
VR
so
that
the
voltage
between
Q901
collector
and
the
earth
becomes
11.0V.
SUB TUNING DIAL
* Turn off the AFC switch.
1. VL CHANNEL
1)
While
rotating
the
TV
tuning
knob,
set
the
dial
needle
to
that
channel
number
of
the
low
band
TV
station
which
is
smallest
among
those
receivable.
2) Adjust the VL SUB TUNING VR and receive a TV
program from the station whose channel number is set
on the dial needle.
3) By attempting to receive other stations within the band,
confirm that the pointer corresponds to the channel
number of each station.
CX-60ME
Red Green Biue |
Front * /
Tilting
the
yoke
upward
will
move
the
lines
as
shown
with
the
arrows.
Fig. 6-6
[
|
Rearview
CRT
Deflection yoke
Fig. 6-7
2. VH CHANNEL
1)
While
rotating
the
TV
tuning
knob,
set
the
dial
needle
to
that
channel
number
of
the
high
band
TV
station
which
is
smallest
among
those
receivable.
Adjust
the
VHi
SUB
TUNING
VR
and
receive
a
TV
program
from
the
station
whose
channel
number
is
set
on
the
dial
needle.
2)
While
rotating
the
TV
tuning
knob,
set
the
dial
needle
to
that
channel
number
of
the
high
band
TV
station
which
is
largest
among
those
receivable.
Adjust
the
VHH
SUB
TUNING
VR
and
receive
a
TV
program
from
the
station
whose
channel!
number
is
set
on
the
dial
needle.
3)
Repeat
steps
(1)
and
(2)
and
confirm
that
the
pointer
corresponds
to
the
channel
number
of
each
station.
3. UHF CHANNEL
1)
After
changing
over
the
TV
band
selector
to
UHF
posi-
tion,
adjust
the
UHF
SUB
TUNING
VR
in
the
same
manner
as
“VH
ADJUSTMENT”.
However,
adjust
the
Ut
SUB
TUNING
VR
in
the
case
of
the
smallest
channel
number
of
TV
station
and
the
UH
SUB
TUNING
VR
in
the
case
of
the
largest
channel
number
of
TV
station.
4. Turn on the AFC switch.
HORIZONTAL OSCILLATOR
1. Set the H. HOLD VR to the mechanical center position.
2.
Connect
the
jumper
clip
between
TP-33
and
earth.
3.
Adjust
the
H.HOLD
VR
until
is
in
view
and
locks
or
drifts
slowly
back
and
forth.
. Remove the jumper clip.
.
Make
sure
that
the
set
maintains
horizontal
syne
when
channels
are
switchéd.
oa >
(No. 5513) 7
