4.6.6 SERVICE MODE SETTING
1. V/C, 2. DEF
• Press [CH+] / [CH-] key
For scrolling up/down the adjustment item.
• Press [VOL+] / [VOL-] key
For scrolling up/down the data values.
NOTE:
The setting value will be stored automatically when release
the REMOTE CONTROL UNIT keys.
(1) INPUT SIGNAL
(2) ASPECT
(3) VIDEO STATUS
(4) COLOR TEMPERATURE
3. SOUND (A)
• Press [CH+] / [CH-] key
For scrolling up/down the adjustment item.
• Press [VOL+] / [VOL-] key
For scrolling up/down the data values.
NOTE:
The setting value will be stored automatically when release
the REMOTE CONTROL UNIT keys.
7. LOW LIGHT
The settings for LOW LIGHT is described in the WHITE
BALANCE page of ADJUSTMENT PROCEDURE.
NOTE:
The setting value will be stored automatically when release
the REMOTE CONTROL UNIT keys.
8. HIGH LIGHT
The settings for HIGH LIGHT is described in the WHITE
BALANCE page of ADJUSTMENT PROCEDURE.
NOTE:
The setting value will be stored automatically when release
the REMOTE CONTROL UNIT keys.
9. VCO
The setting for VCO is described in the IF VCO page of
ADJUSTMENT PROCEDURE.
NOTE:
The setting value will be stored automatically when release
the REMOTE CONTROL UNIT keys.
RF : Antenna input
COMP : External (component) input
EXT : External (S / Composite) input
4:3 : 4:3 screen mode
STD : STANDARD
THEA : THEATER
HIGH : White balance high mode
LOW : White balance low mode

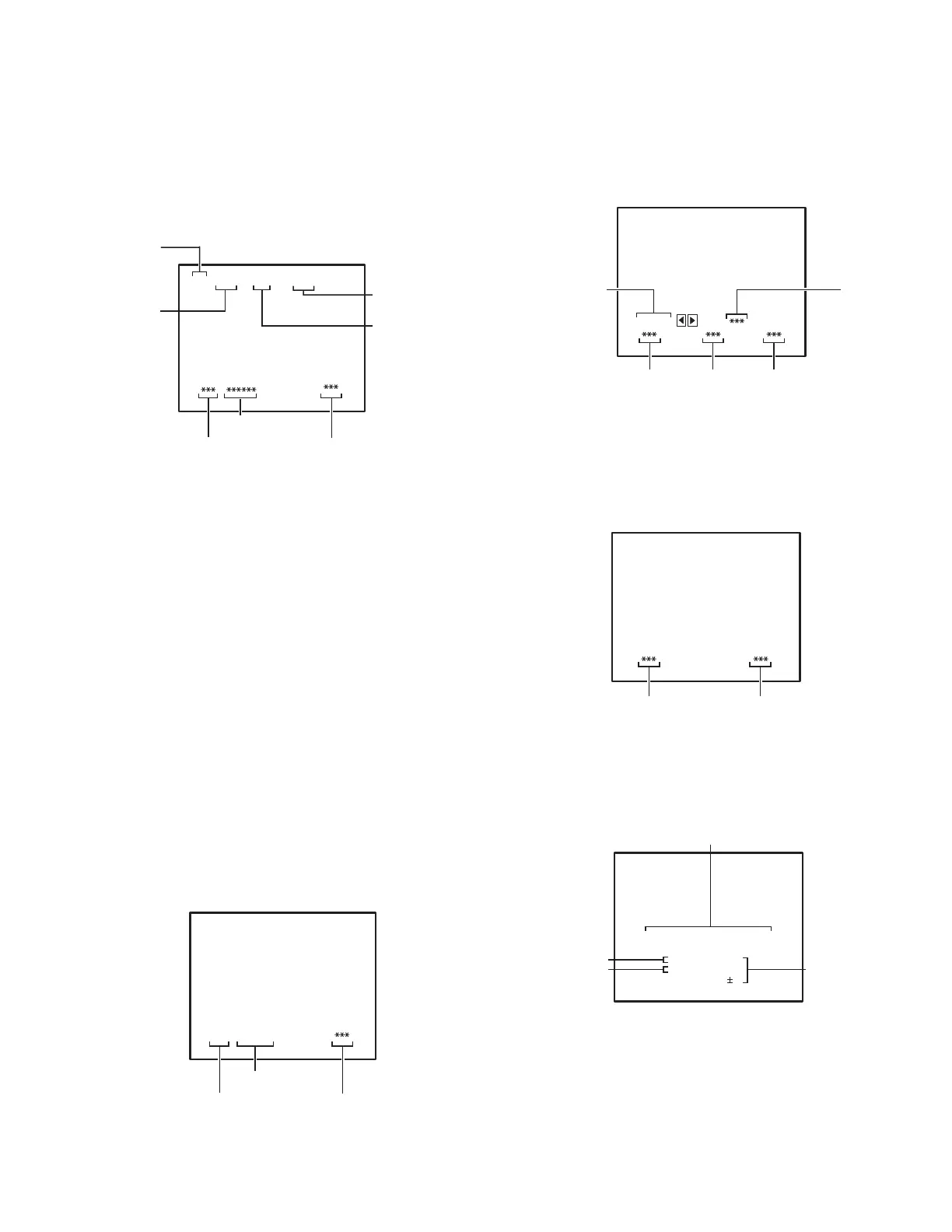

RF 4 : 3 STD LOW
SETTING NO.
INPUT
SIGNAL
A
SPECT
SETTING ITEM
SETTING VALUE
VIDEO
STATUS
COLOR
TEMPERATURE
SETTING NO.
SETTING ITEM
SETTING VALUE
A01 IN LEVEL
BRIGHT
BRIGHT
R CUTOFF G CUTOFF B CUTOFF
SETTING ITEM
R DRIVE B DRIVE
TOO HIGH GOOD TOO LOW
SYNC: YES
AFC OFF
FINE 0
VCO adjustment status (AFC level)
Setting value
AFC SW
SYNC INPUT
