JVC DLA-RS4500K User Manual

(No.PA056<Rev.002>) 17

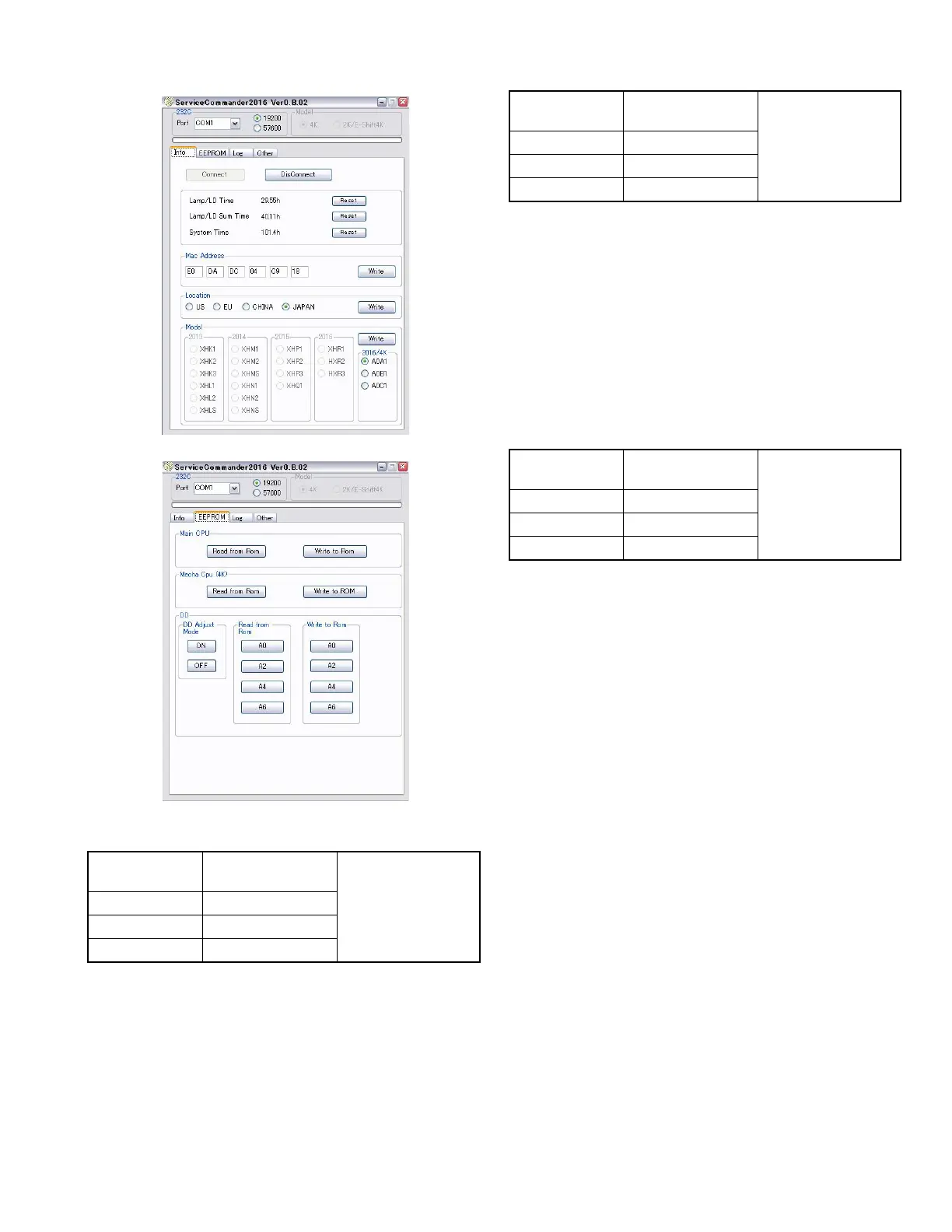

4.4 ADJUSTMENT PROCEDURE
Fig.4-1 "Service Commander Software" screen
Fig.4-2 "EEPROM" menu screen
4.4.1 Main EEPROM backup
Note:
Perform this operation during standby mode.
 PROCEDURE
(1) Run ServiceCommander Software.
(2) Select Com Port, then connect the PC to the projector
and click "Connect".
(3) Select the EEPROM menu.
(4) Before replacing the PROCESSOR PWB, Click [Read
from ROM] of Main CPUand save file (.mrd) to PC.
(5) After replacing the PROCESSOR PWB, click [Write to
ROM] of Main CPU and select the saved file (.mrd) to
write the backup data.
4.4.2 Model code writing
Note:
Perform this operation during standby mode.
 PROCEDURE
(1) Run ServiceCommander Software.
(2) Select Com Port, then connect the PC to the projector
and click "Connect".
(3) Select the info menu.
(4) Select the model code from the Model, and write the
model code.
A0A1-----DLA-RS4500K, DLA-Z1C/E
A0C1-----(Not use)
A0B1-----DLA-VS4500
4.4.3 Destination writing
Note:
Perform this operation during standby mode.
 PROCEDURE
(1) Run ServiceCommander Software.
(2) Select Com Port, then connect the PC to the projector
and click "Connect".
(3) Select the info menu.
(4) Select the destination from the Location, and write the
destination.
Instruments ServiceCommander
Software
REPLACING
COMPONENTS
PROCESSOR PWB
Test point
Adjustment menu
Preparation
Instruments ServiceCommander
Software
REPLACING
COMPONENTS
PROCESSOR PWB
Test point
Adjustment menu
Preparation
Instruments ServiceCommander
Software
REPLACING
COMPONENTS
PROCESSOR PWB
Test point
Adjustment menu
Preparation
