12
Cable/Satellite box
Cable/Satellite box
Connection to unit
Connection to unit

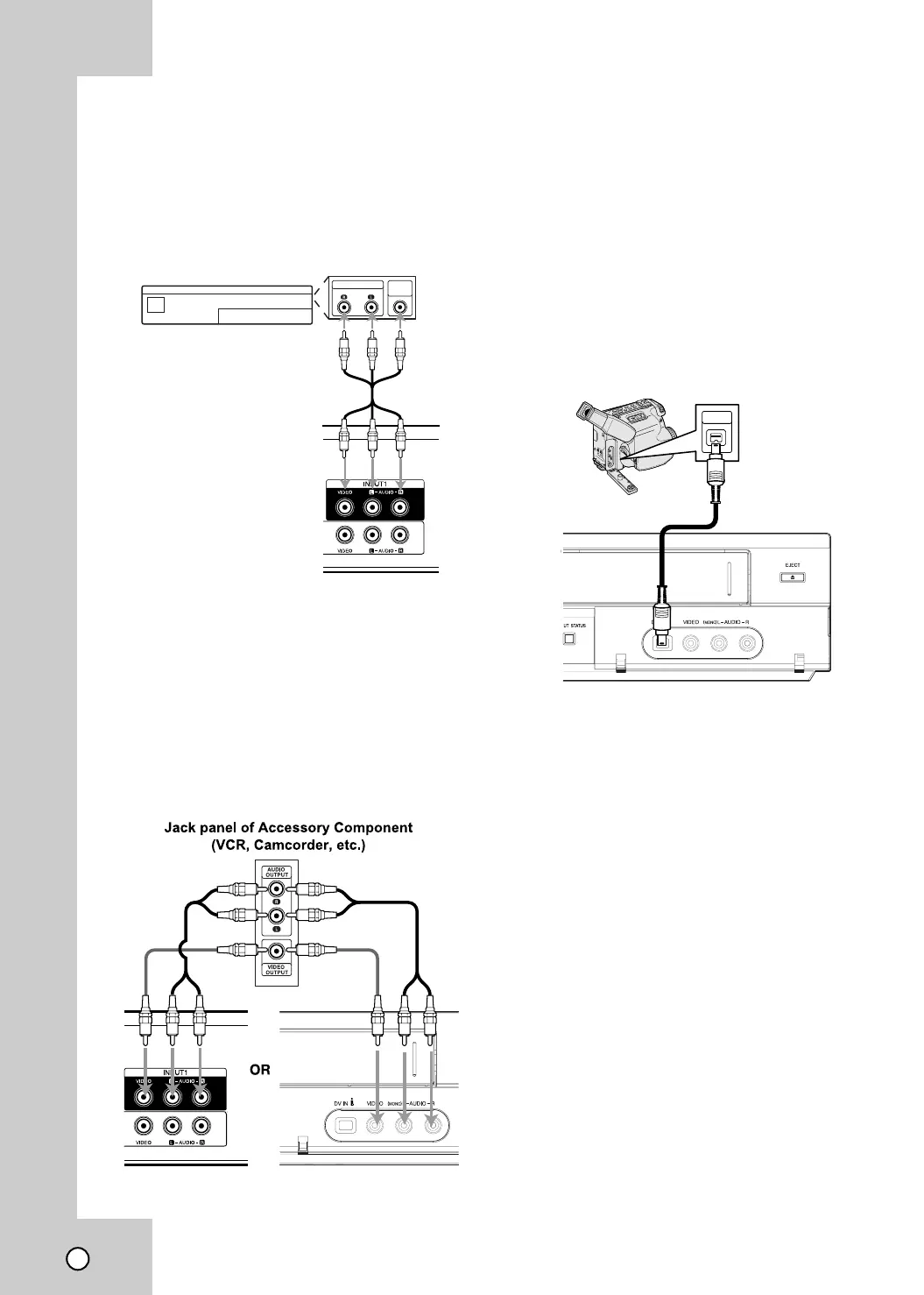

To use Timer-Link Recording, connect the INPUT1
jacks on the unit to the audio/video out jacks on your
Cable/Satellite box, using the optional audio/video
cables. (Refer to page 30 for “Timer-Link Recording”.)
Accessory
Accessory
Audio/V
Audio/V
ideo (A/V)
ideo (A/V)
Connections to
Connections to
Recorder
Recorder
Connect the INPUT 1 or AV IN 2 jacks on the
Recorder to the audio/video out jacks on your acces-
sory component, using the optional audio/video
cables. (Refer to page 29 for [Basic Recording].)
Connecting a Digital Camcorder
Connecting a Digital Camcorder
Use a DV cable (not supplied) to connect the DV
in/out jack of your DV Digital Camcorder to the front
panel DV IN jack of this Recorder.
Notes:
This jack is for connection to DV equipment only.
It is not compatible with digital satellite tuners or D-
VHS video decks.
Disconnecting the DV cable while recording a
contents of the connected digital camcorder may
result in malfunction.
Rear of Recorder
Front of Recorder
DV Digital Camcorder
Front of Recorder
DV
IN/OUT
VIDEO
OUT
AUDIO OUT
Cable/Satellite box
Rear of the unit
