1-8 (No.MB666<Rev.005>)

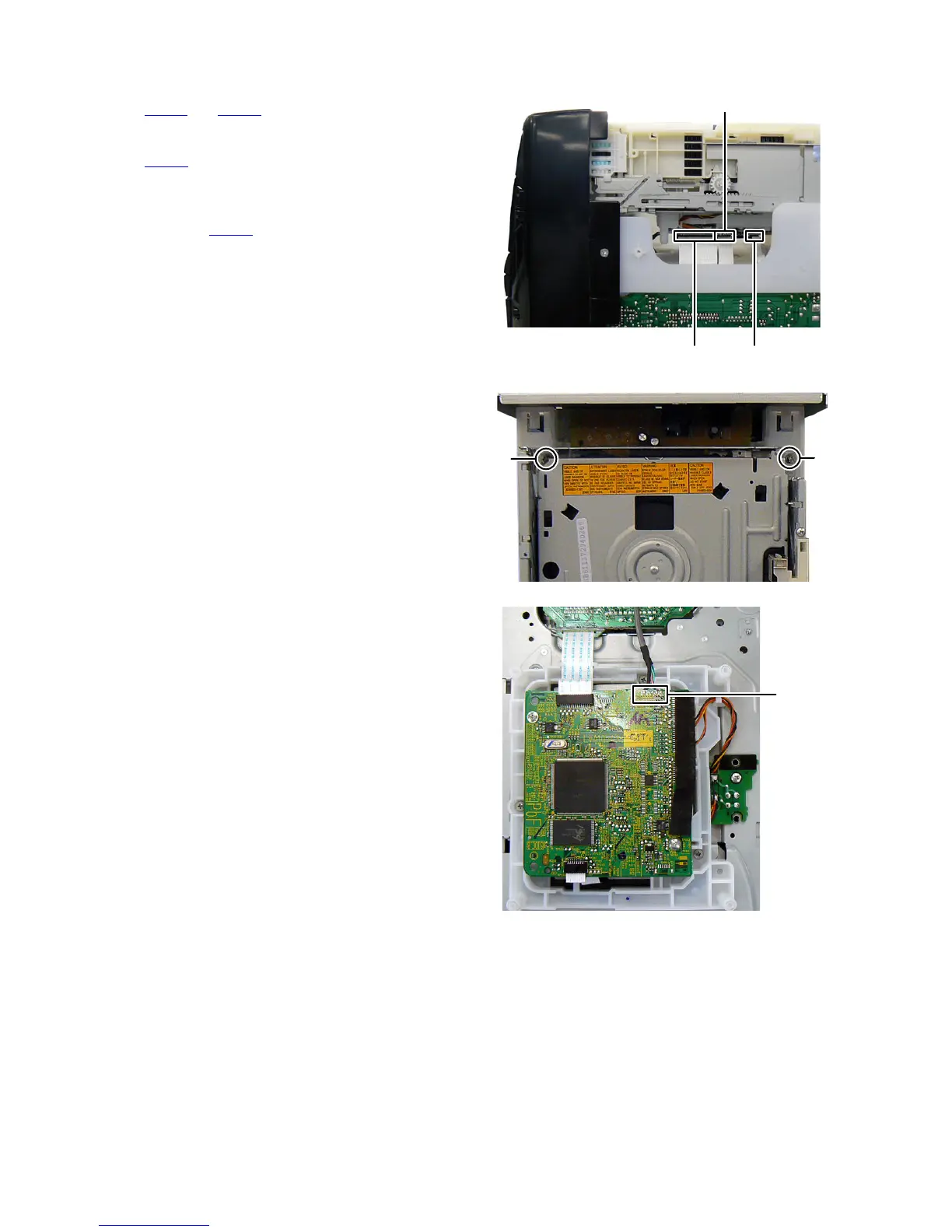

3.1.2 Removing the DVD mechanism (See Fig.3 to 5)
(1) Disconnect the card wire from Micom board connected to
connector CN701
and CN801 of the Front end board. (See
Fig.3)
(2) Disconnect the card wire from Amp board connected to
connector CN702
of the Front end board. (See Fig.3)
(3) Remove the two screws D attaching the DVD mechanism.
(See Fig.4)
(4) Disconnect the connector wire from USB jack board con-
nected to connector CN811
of the Front end board. (See
Fig.5)
Fig.3
Fig.4
Fig.5
CN701
CN702
CN801
D
D
CN811
