JVC DX-J36UN Service Manual

(No.MB666<Rev.005>)1-9

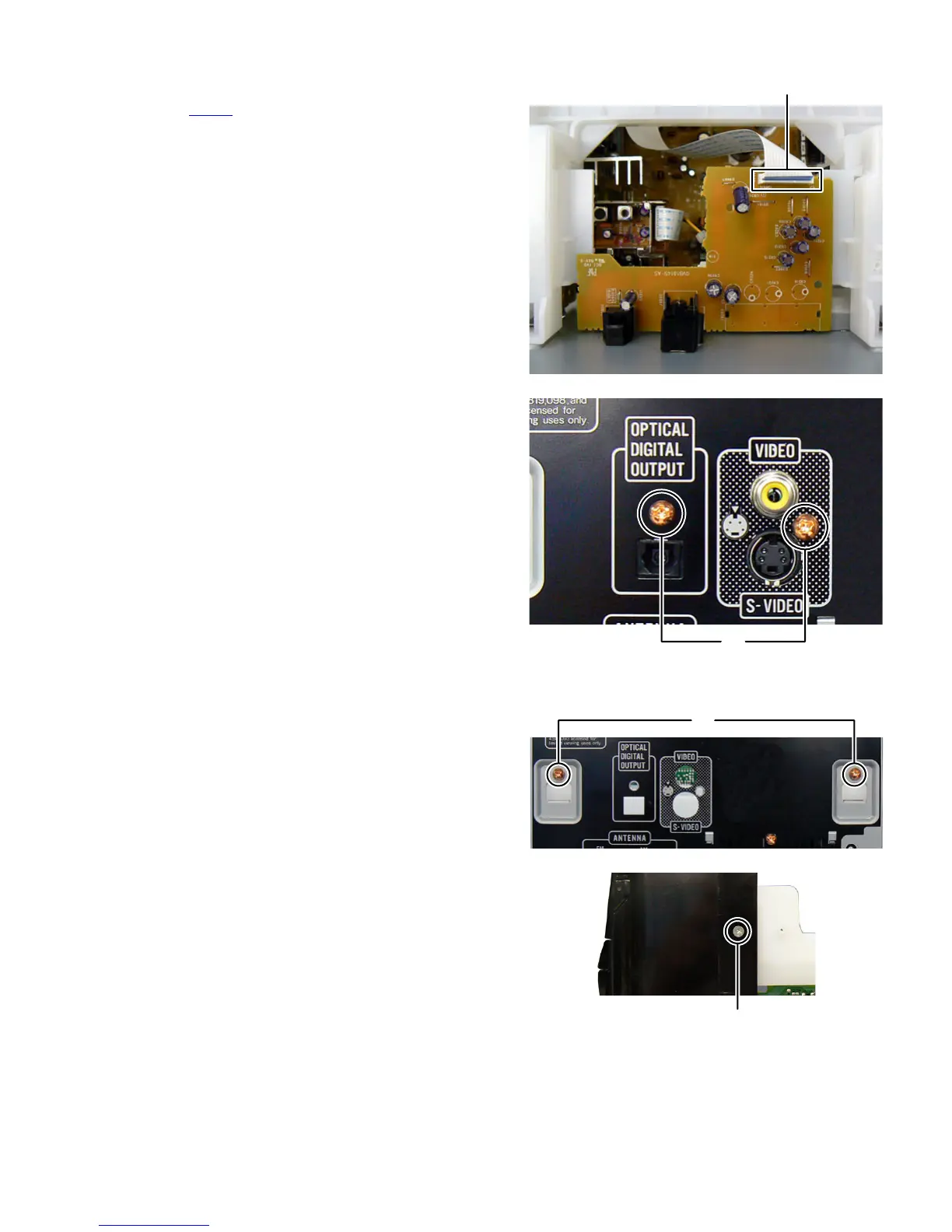

3.1.3 Removing the Video board (See Fig.6, 7)
(1) Disconnect the card wire from Micom board connected to
connector CN931
of the Video board. (See Fig.6)
(2) Remove the two screws E attaching the Video board. (See
Fig.7)
Fig.6
Fig.7
3.1.4 Removing the Mecha chassis (See Fig.8, 9)
(1) Remove the two screws F attaching the Mecha chassis.
(See Fig.8)
(2) Remove the two screws G attaching the both side of the
Mecha chassis. (See Fig.9)
Fig.8
Fig.9
CN931
E
F
G
