(No.MB531)1-17
3.1.8 Removing the main board
(See Fig.15)
• Remove the metal cover, tuner, fan and rear panel.
(1) From the right side of the main body, remove the screw L
and screw M attaching the main board.
(2) From the inside of the main body, disconnect the card wires
from the connectors (CN820
, CN830) on the forward side
of the main board.
(3) Disconnect the main board from the bridge board toward
this side while releasing the claw h of the connector CN850
on the main board.
(4) Disconnect the main board from the surround terminal
board in the direction of the arrow while releasing the claw
I of the connector CN860
on the surround terminal board.
[For DX-T99, DX-T77]
Note:
When releasing the claws (h, j) take care not to break them.

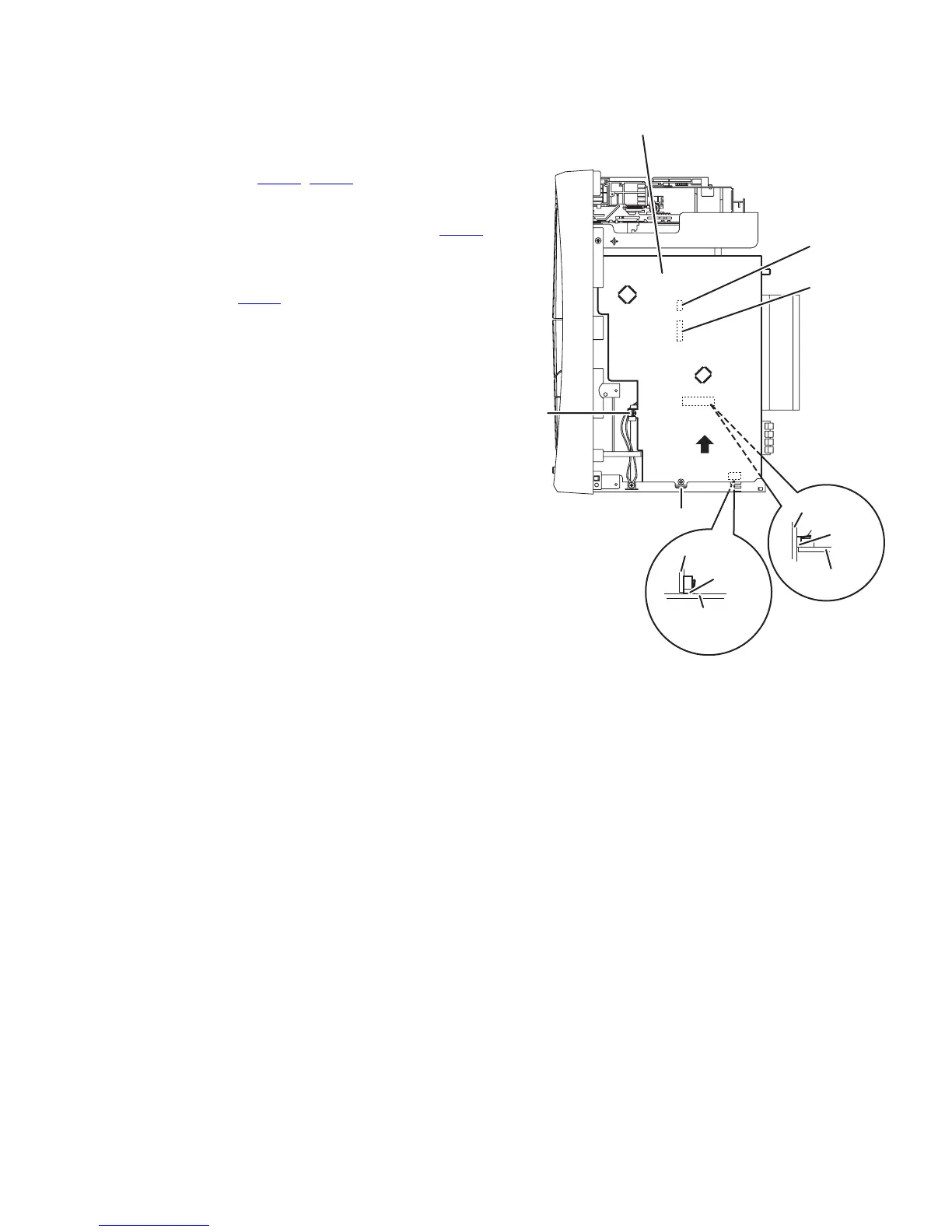

Fig.15
CN820
CN830
Main board
M
L
Main board
j
Main board
Bridge board
CN850
h
Surround
terminal board
CN860
To Next Page
