3.1.7 Removing the rear panel
(See Fig.14)
• Remove the metal cover and fan.
(1) Remove the two screws J and eleven screws K attaching
the rear panel. [For DX-T99, DX-T77]
(2) Remove the two screws J and ten screws K attaching the
rear panel. [For DX-T66]
(3) Release the section f of the rear panel and remove the
joints g of the mecha chassis in the direction of the arrow.
(4) Remove the rear panel from the main body.

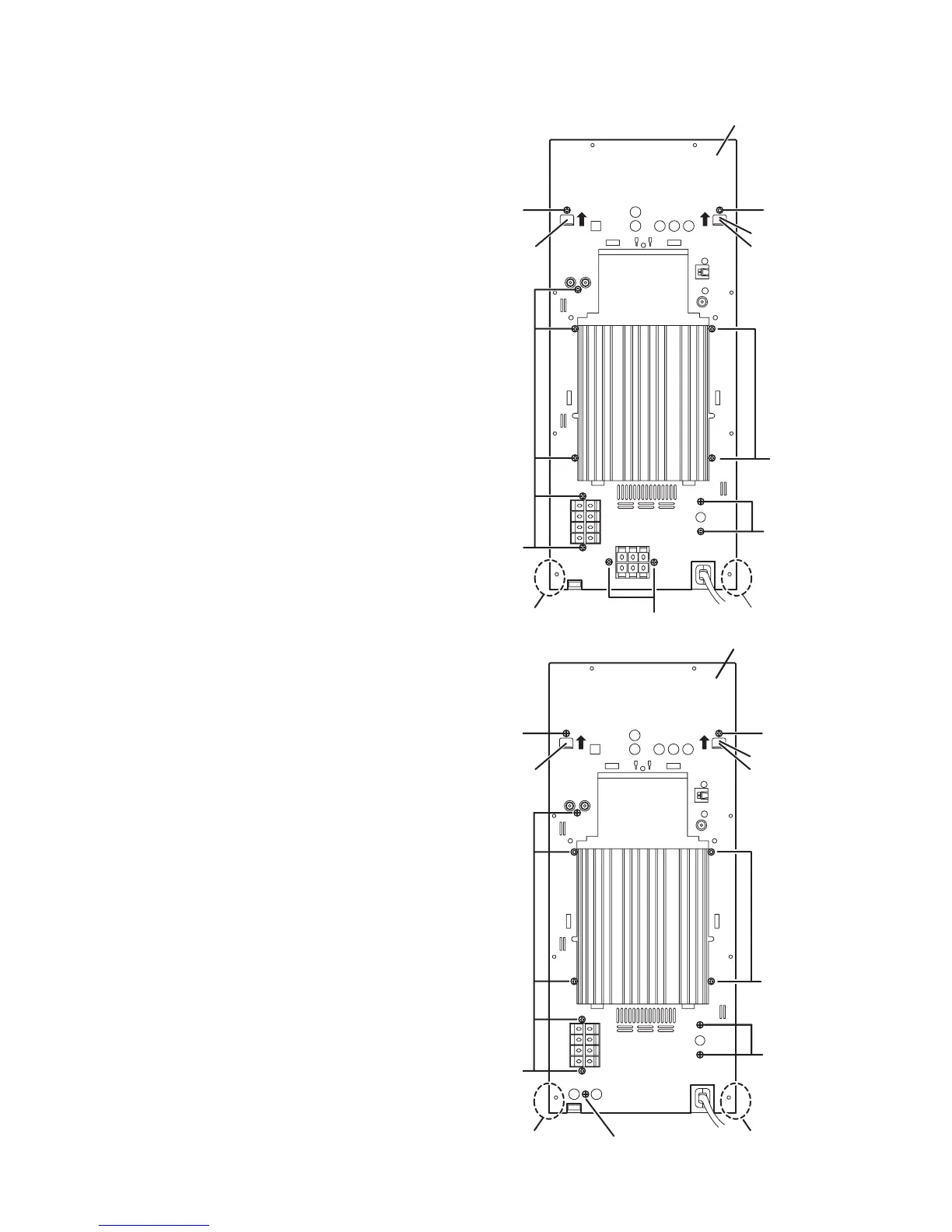

Fig.14
Mecha chassis
Rear panel
g
f
f
g
K
K
K
K
J
[DX-T99, DX-T77]
[DX-T66]
Mecha chassis
Rear panel
g
ff
g
K
K
K
K
J
K
K
