JVC EX-A10 Service Manual

(No.MB487)1-25
3.3.3 Removing the traverse mechanism assembly
(See Fig.4)
• Remove the clamper base.
(1) From the bottom side of the DVD mechanism assembly, re-
move the four screws C attaching the traverse mechanism
assembly.
(2) Take out the traverse mechanism assembly with the DVD
module board.

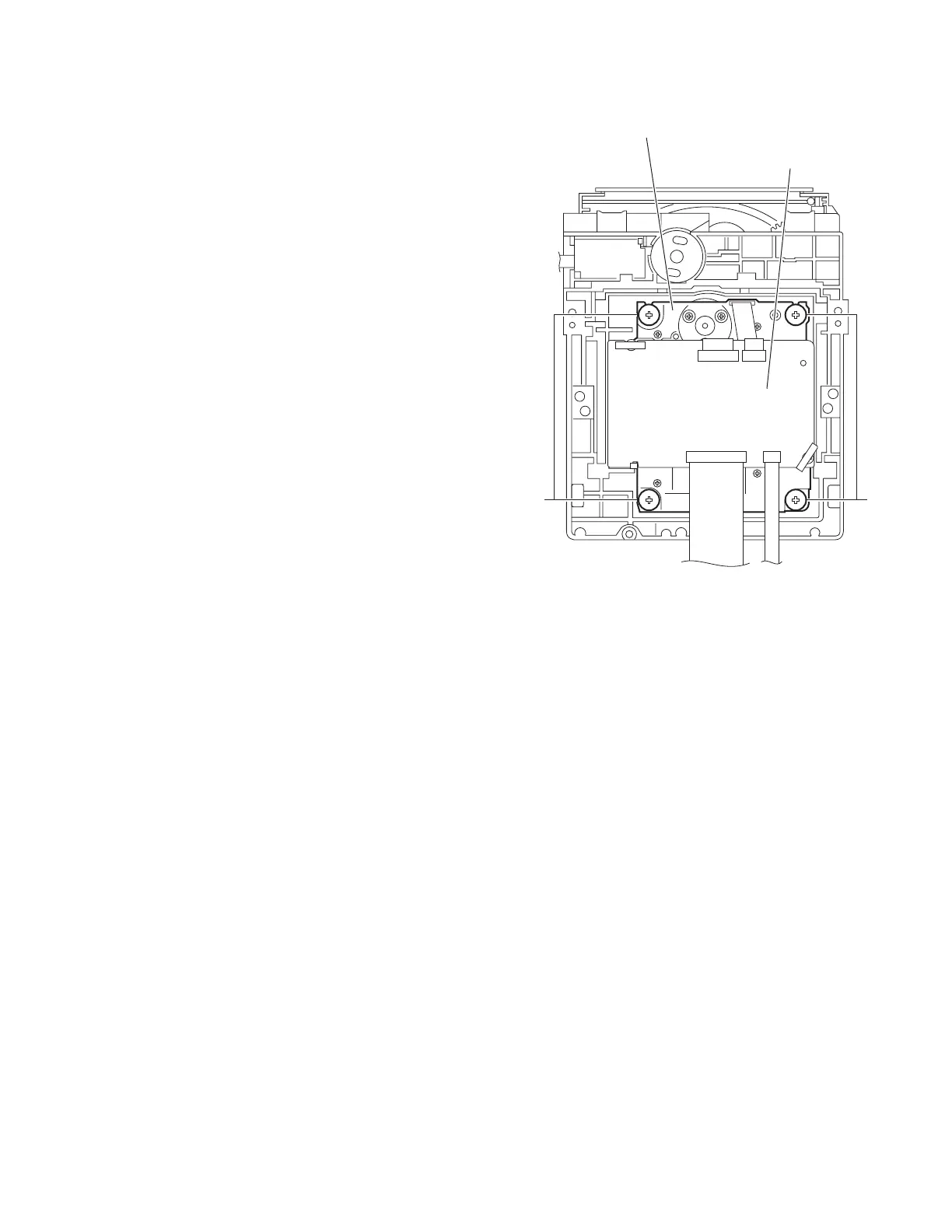

Fig.4
CC
Traverse mechanism assembly
DVD module board
