JVC EX-A10 Service Manual

3-11

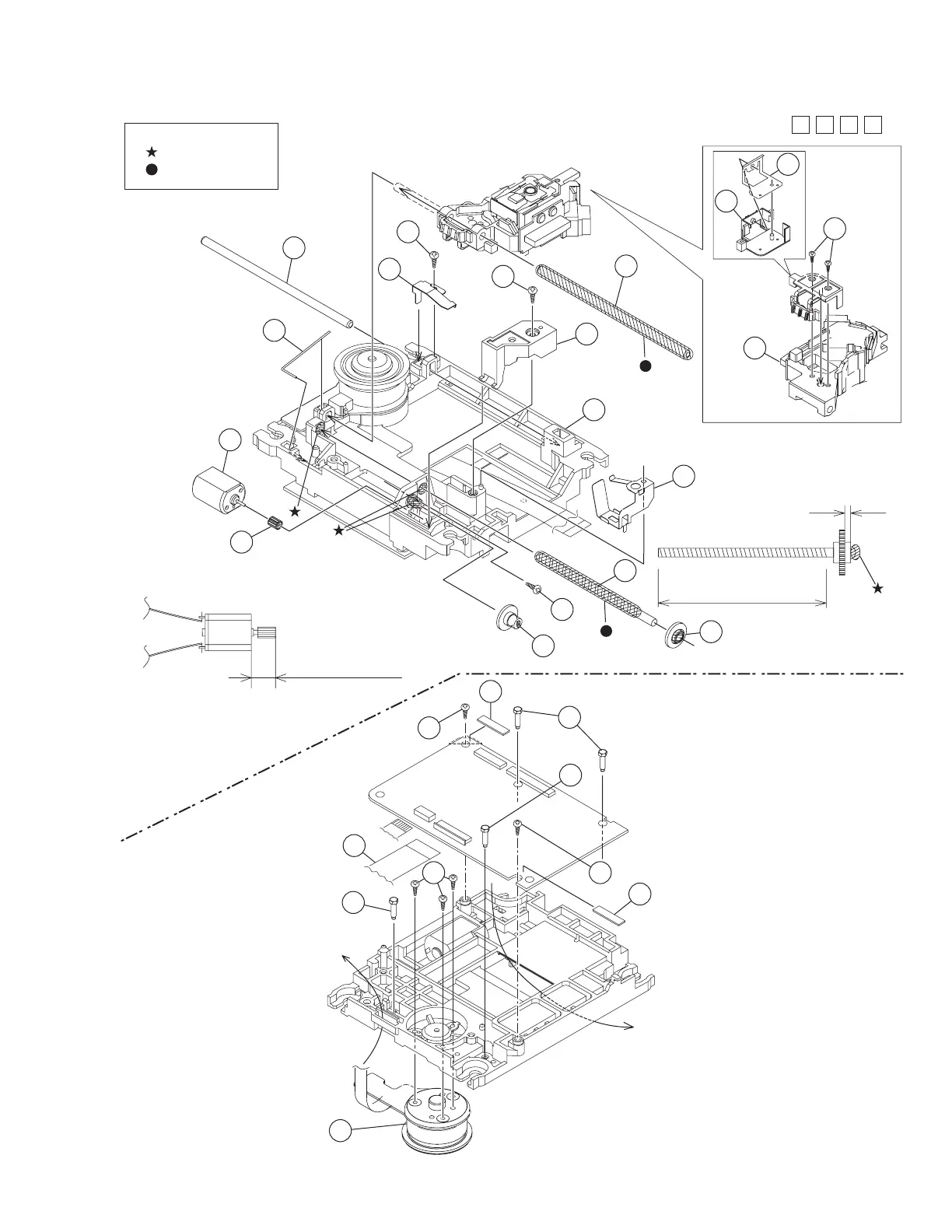

DVD mechanism assembly and parts list
Grease
=JVG-31N
=JVS-1003
APPLY AREA
Letter side
2.4mm
+
0.1mm
-
7.0mm
+
0.1mm
-
Reverse side
Block No.
M M
M
J
FTU-MM1-11M
The parts without symbol number are not service.
DVD
module board
a
b
b
a
14
18
4
5
16
15
20
11
12
13
10
14
19
1
17
9
8
6
7
21
21
3
21
22
23
23
24
24
2

JVC EX-A10 Specifications

General

Impedance	6 Ω
RMS rated power	20 W
Equalizer	Yes
Volume control	Digital
Supported radio bands	AM, FM
Type	Home audio micro system
Speakers	2-Way, Bass-Reflex
Dimensions (WxDxH)	245 x 80 x 297 mm
USB 2.0 ports quantity	1

Weight and Dimensions

Weight	2700 g
Center speaker weight	3500 g
Center speaker dimensions (WxDxH)	143 x 243 x 257 mm
