JVC EX-A10 Service Manual

1-24 (No.MB487)

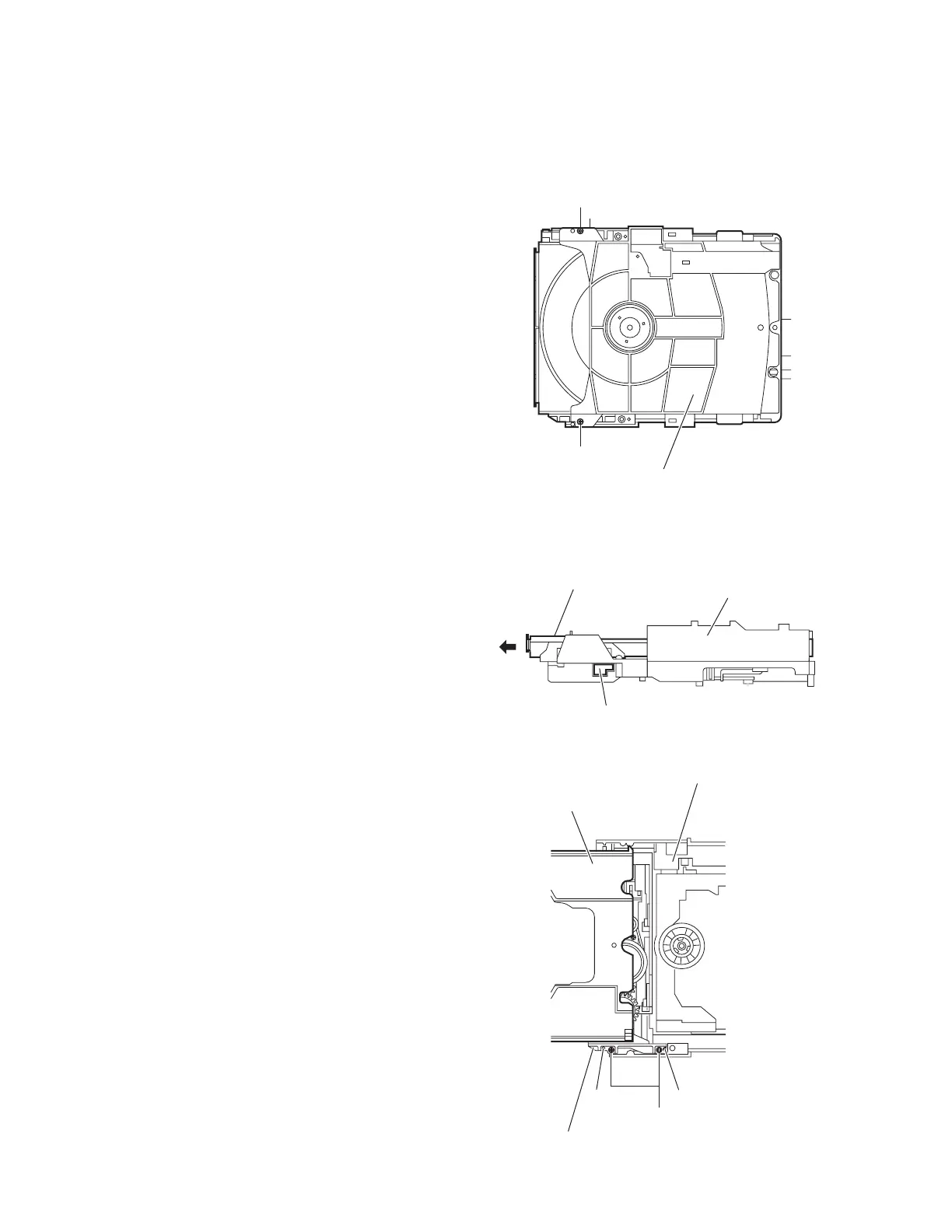

3.3 DVD mechanism assembly section
• Remove the DVD mechanism assembly from the main body.
(See "Removing the DVD mechanism assembly" of the DVD player section.)
3.3.1 Removing the clamper base
(See Fig.1)
(1) From the top side of the DVD mechanism assembly, re-
move the two screws A attaching the clamper base.
(2) Take out the clamper base.
Fig.1
3.3.2 Removing the tray assembly
(See Figs.2 and 3)
• Remove the clamper base.
(1) From the right side of the DVD mechanism assembly, push
the slide cam and pull the tray assembly out of the DVD
mechanism assembly in the direction of the arrow. (See
Fig.2.)
(2) From the top side of the DVD mechanism assembly, re-
move the two screws B attaching the tray assembly. (See
Fig.3.)
(3) Remove the shaft guide of the tray assembly from the pro-
jections a of the DVD mechanism assembly and take out
the tray assembly. (See Fig.3.)
Fig.2
Fig.3
Clamper base
A
A
Tray assembly
DVD mechanism assembly
Slide cam
Tray assembly
DVD mechanism assembly
B
Shaft guide
a
a

JVC EX-A10 Specifications

General

Impedance	6 Ω
RMS rated power	20 W
Equalizer	Yes
Volume control	Digital
Supported radio bands	AM, FM
Type	Home audio micro system
Speakers	2-Way, Bass-Reflex
Dimensions (WxDxH)	245 x 80 x 297 mm
USB 2.0 ports quantity	1

Weight and Dimensions

Weight	2700 g
Center speaker weight	3500 g
Center speaker dimensions (WxDxH)	143 x 243 x 257 mm
