JVC EX-A10 Service Manual

(No.MB487)1-23
3.2.7 Removing the DVD mechanism assembly
(See Figs.11 and 12)
• Remove the metal cover and main board.
(1) From the top side of the main body, remove the three
screws N attaching the DVD mechanism assembly. (See
Fig.11.)
(2) Take out the DVD mechanism assembly from the main
body.
Reference:
Remove the front panel assembly as required.
(3) Remove the fitting cover assembly from the DVD mecha-
nism assembly in the direction of the arrow. (See Fig.12.)

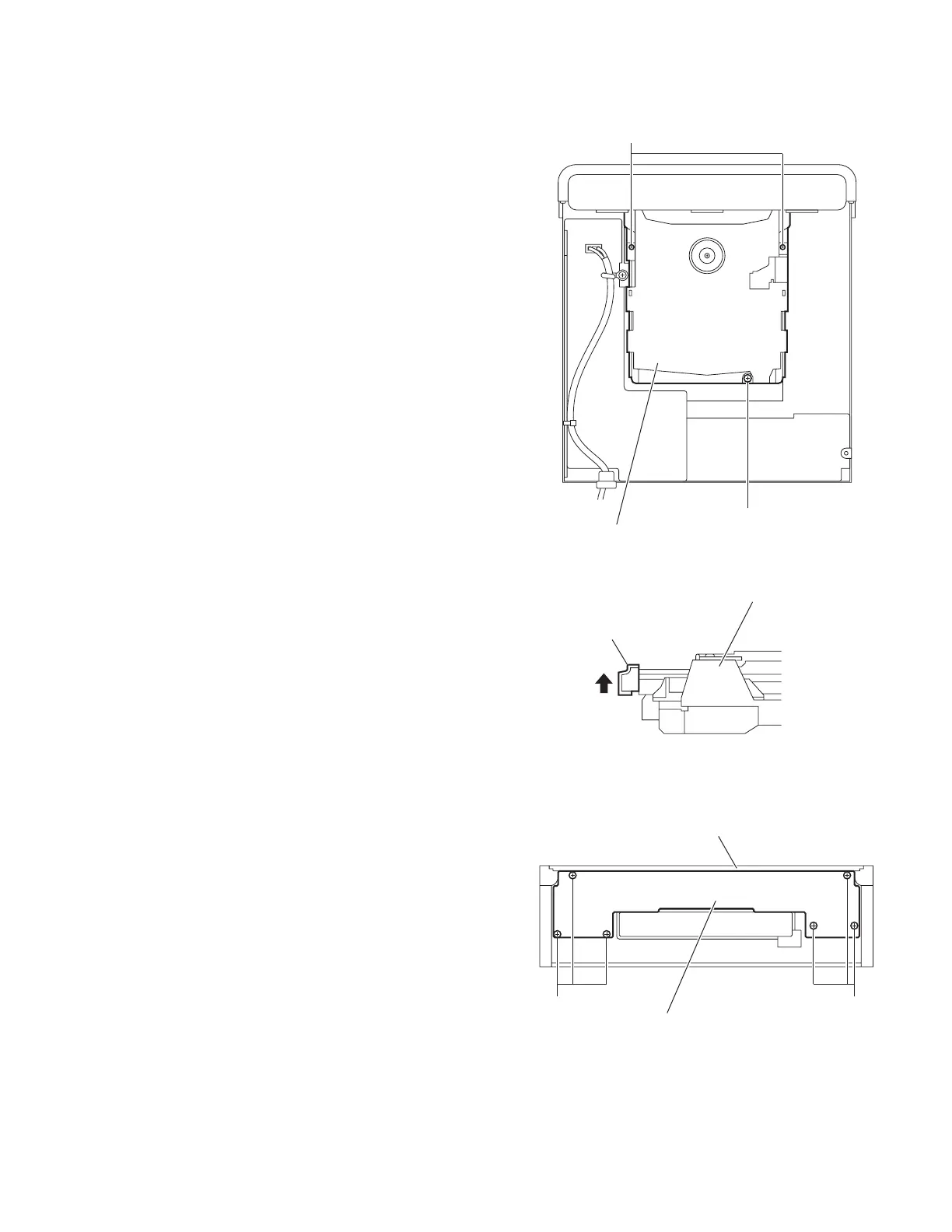

Fig.11
Fig.12
3.2.8 Removing the key board
(See Fig.13)
• Remove the metal cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the six
screws P attaching the key board.
(2) Take out the key board from the front panel assembly.
Fig.13
N
N
DVD mechanism assembly
DVD mechanism assembly
Fitting cover assembly
Key board
Front panel assembly
PP
