CAUTION
• For details of signals to be output, refer to page
36.
• If the main unit is connected to equipment with
a Dolby Digital decoder, the “D. RANGE
COMPRESSION” setting of “AUDIO”
(A page 36) is disabled for sound from the
digital audio output of the main unit.
• You can output the audio signal from the
DIGITAL OUT terminal when a loaded disc is
selected as the source.
• Pressing SURROUND MODE while the audio
signal is being output from the DIGITAL OUT
terminal may cause intermittent sound output.

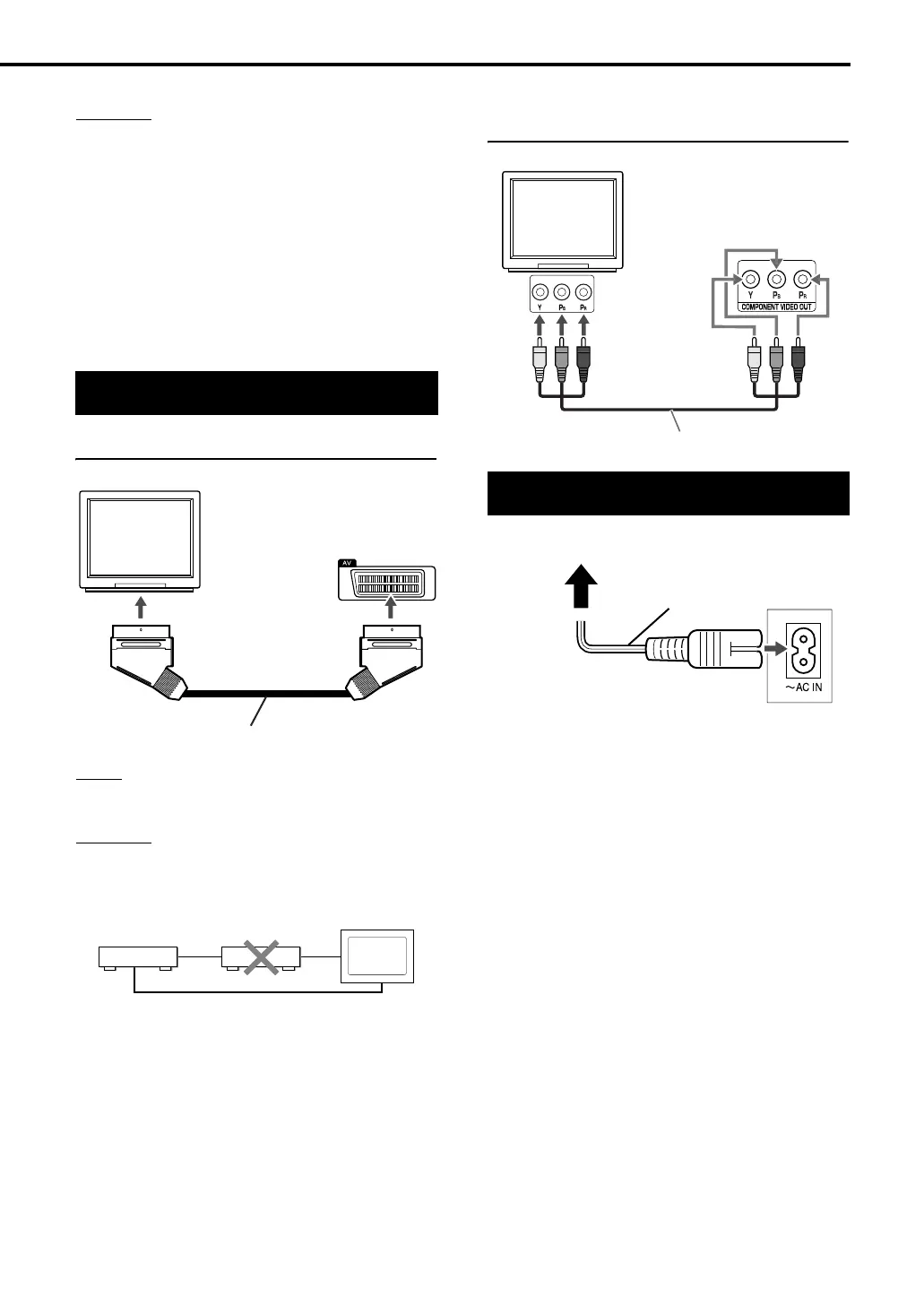

Connecting a TV with the AV terminal
NOTE
• No audio signal is output via AV (SCART) terminal.
CAUTION
Connect the main unit directly with a TV (or a
monitor) without routing through a VCR.
Otherwise it may cause picture distortion while
playing.
Also, when connecting the main unit to a TV with
a VCR built in, there may be picture distortion
while playing.
Connecting a TV with the COMPONENT
VIDEO OUT terminals
• Connect the power cord after all other
connections are complete.
• The STANDBY lamp (on the front panel) will be
lit.
Connecting with TV
TV
To SCART connector
Main unit
SCART cable (sold separately)
Main unit
Connecting directly
TV (or
monitor)
Connecting the power cord
Component video cable (not supplied)
TV
Main Unit
(rear view)
To component
terminals
AC outlet
Supplied power cord
Main unit
Getting started
