JVC FS-G5 Service Manual

1-18 (No.MB353)
3.1.10.2 Removing the CD changer mechanism board
(See Fig.31 to 33)
• Prior to performing the following procedure, remove the CD
changer mechanism assembly.
Caution:
Make sure to solder the short-circuit point on the CD pickup
board before disconnecting the card wire connected to con-
nector CN701
on the CD changer mechanism board and the
CD pickup board. If you do not follow this instruction, the pick-
up may be damaged.
(1) From the bottom of the CD changer mechanism assembly,
disconnect the wire from connector CN872
and CN873 on
the CD changer mechanism board.
(2) From the left side of the CD changer mechanism assembly,
disconnect the wire from connector on the CD motor
board.
(3) Remove the four screws E' attaching the CD changer
mechanism board.
(4) Move the CD changer mechanism board as shown in
Fig.32 and solder the short-circuit point on the CD pickup
board.
(5) Disconnect the card wire from connector CN701
on the CD
changer mechanism board.
Caution:
To reattach the CD changer mechanism board, connect the
card wire to connector CN701
on the CD mechanism board
and the CD pickup board before unsoldering the short-circuit
point.

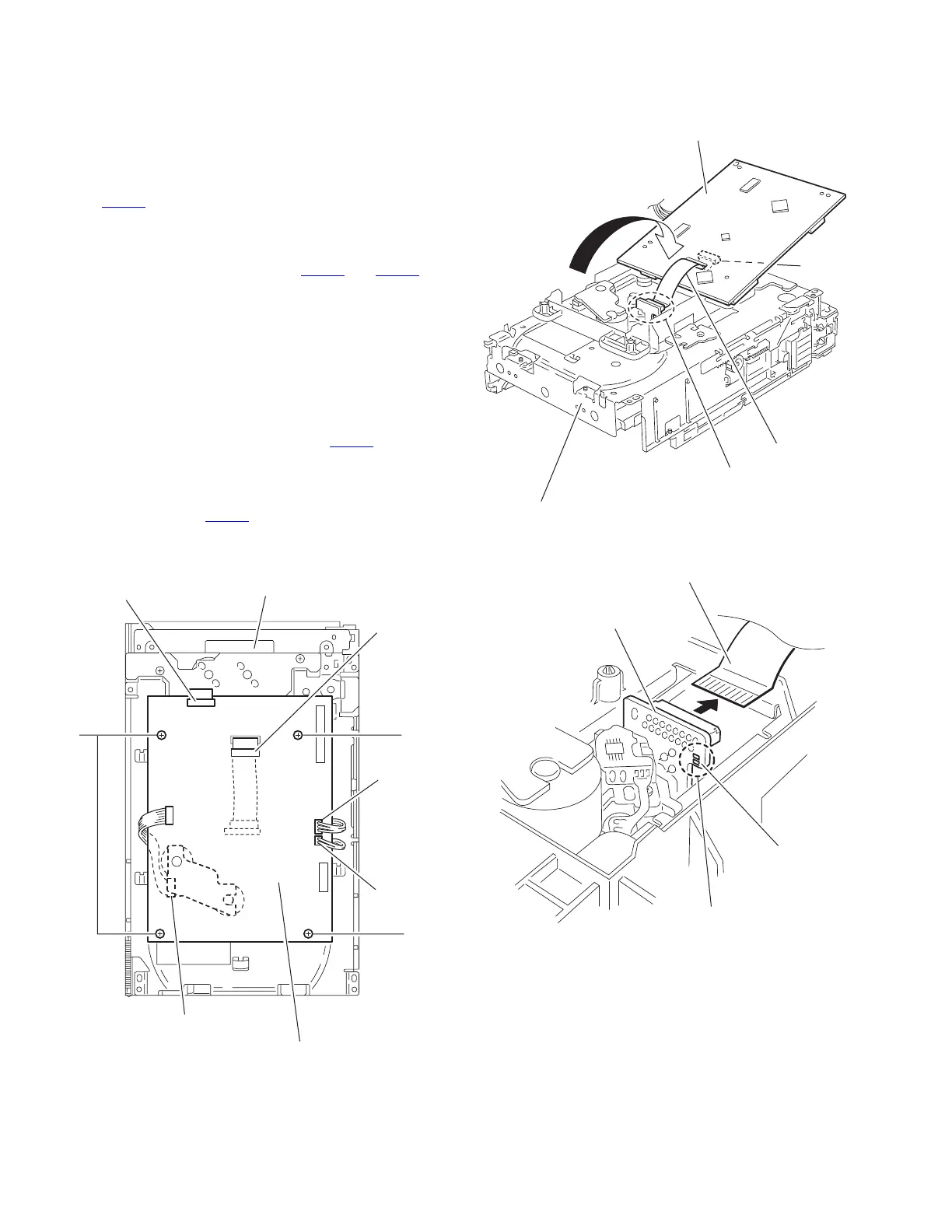

Fig.31
Fig.32
Fig.33
CN871
CN872
CN701
CN873
CD motor board
CD changer mechanism board
CD changer mechanism assembly
E'
E'E'
CD changer mechanism board
CD changer mechanism assembly
Card wire
Short-circuit point
CN701
CD pickup board
Card wire
Sold
Short-circuit point
