JVC FS-G5 Service Manual

(No.MB353)1-19
3.1.10.3 Removing the CD changer mechanism
(See Fig.34, 35)
• Prior to performing the following procedure, remove the CD
changer mechanism assembly and CD changer mechanism
board.
(1) Remove the three screws F' attaching the CD changer
mechanism holder. The CD changer mechanism comes
off, too.
(2) Remove the four screws G' attaching the CD changer
mechanism.

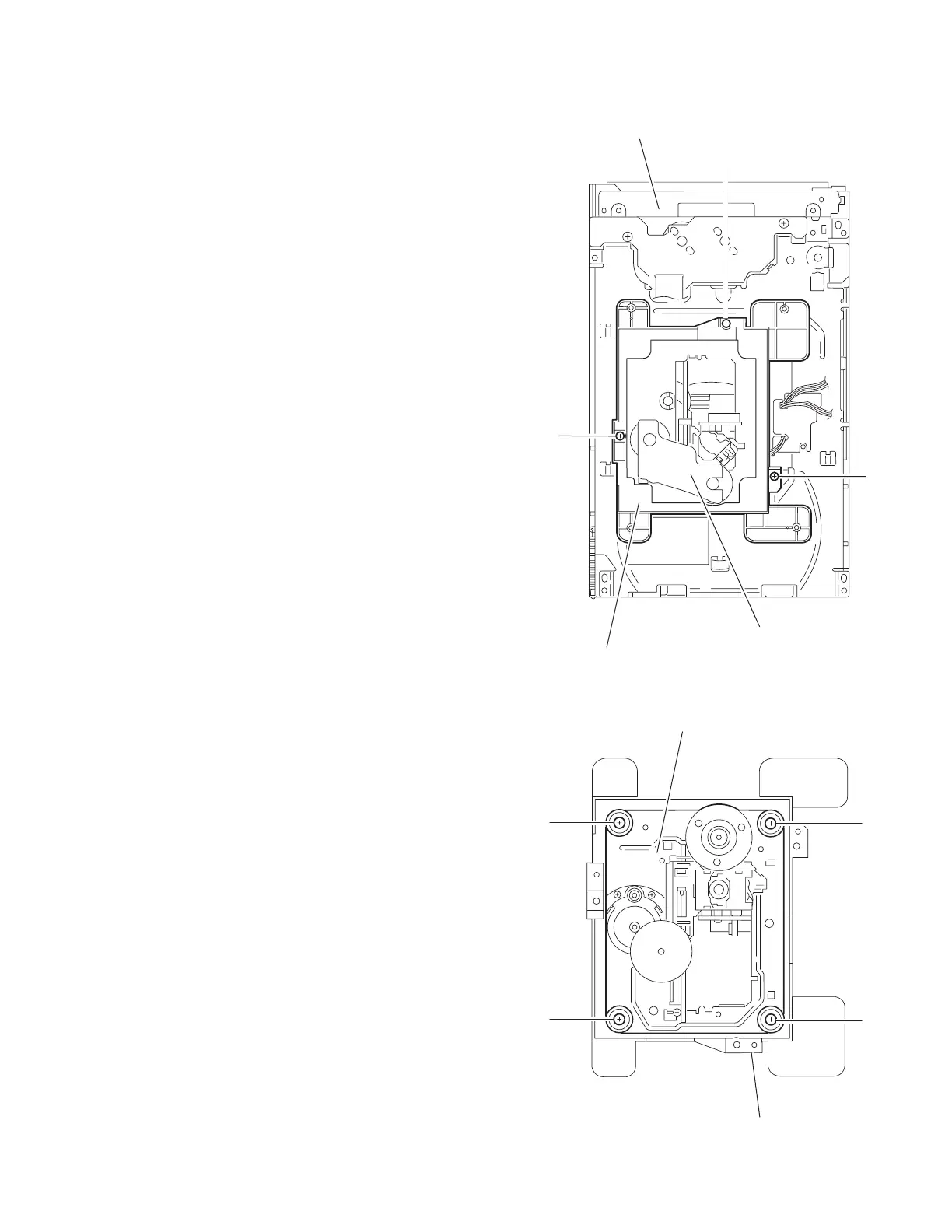

Fig.34
Fig.35
CD changer mechanism assembly
CD changer mechanism
CD changer mechanism holder
F'
F'
F'
CD changer mechanism
CD changer mechanism holder
G'
G'
G'
G'
