3.1.6 Removing the micon board
(See Figs.9 and 10)
• Remove the metal cover, front panel assembly and rear panel.
(1) From the top side of the main body, disconnect the card
wire from the connector CN766 on the micon board. (See
Fig.9.)
Reference:
When connecting the card wire to the connector CN766
,
fix the card wire with the spacer as before.
(2) From the forward side of the micon board, disconnect the
wire from the connectors (CN750
, CN760) on the micon
board. (See Fig.9.)
Reference:
When reassembling, fix the wire with the wire holder af-
ter connecting the wire to the connector CN760
on the
micon board as before. (See Fig.9.)
(3) From the right side of the main body, remove the three
screws K attaching the micon board. (See Fig.10.)
(4) Disconnect the connectors (CN761
,CN762) on the micon
board toward this side. (See Fig.10.)
(5) From the forward side of the micon board, disconnect the
card wire from the connectors CN765
. (See Fig.10.)

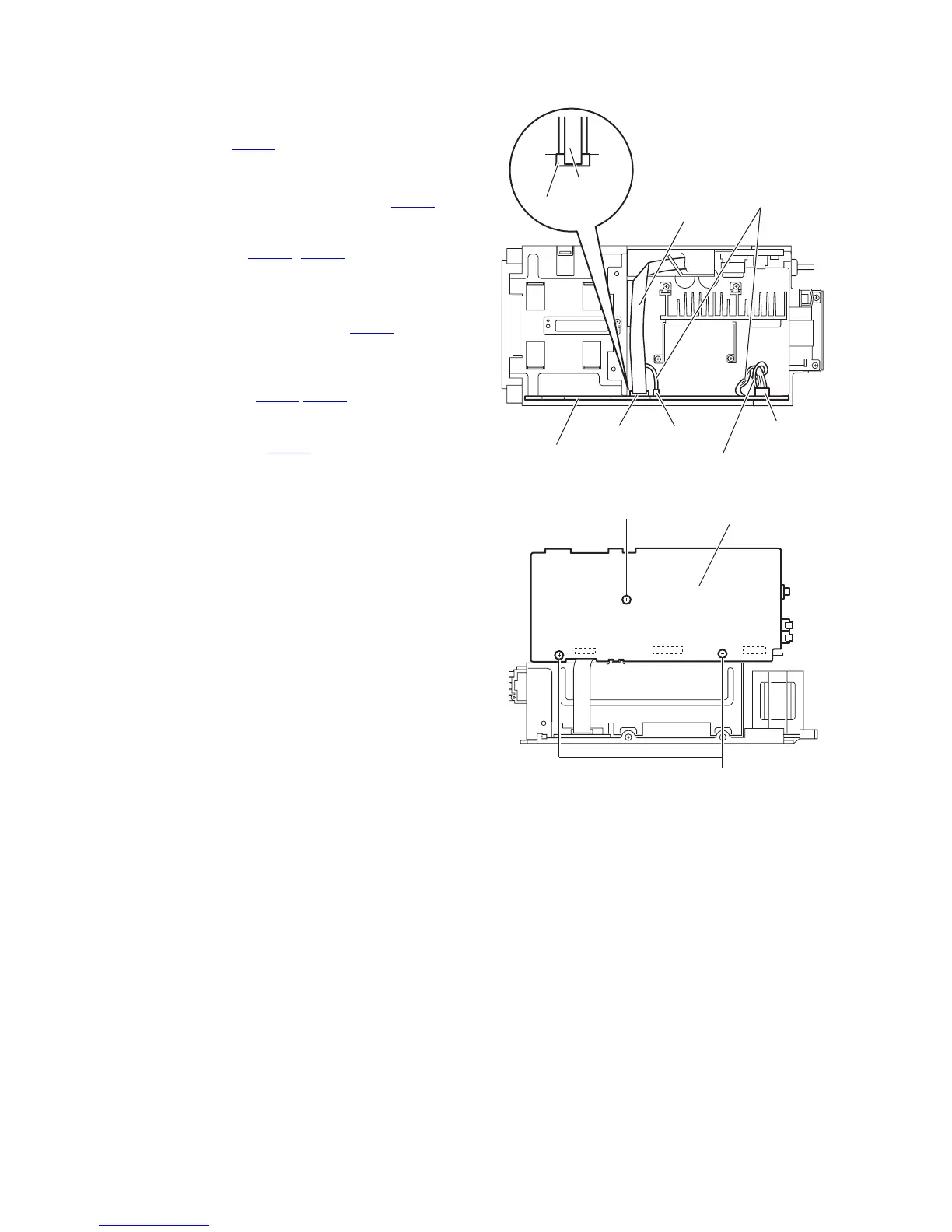

Fig.9
