JVC FS-S57 Service Manual

1-14 (No.MB205)
3.2 Front panel assembly
• Remove the metal cover and front panel assembly.
3.2.1 Removing the front assembly section
(See Fig.20)
(1) From the inside of the front panel assembly, remove the
screw U attaching the earth wire.
Reference:
When attaching the screw U, attach the earth wire with it.
(2) Remove the four screws V attaching the front assembly
section.
(3) Take out the front assembly section from the main body.

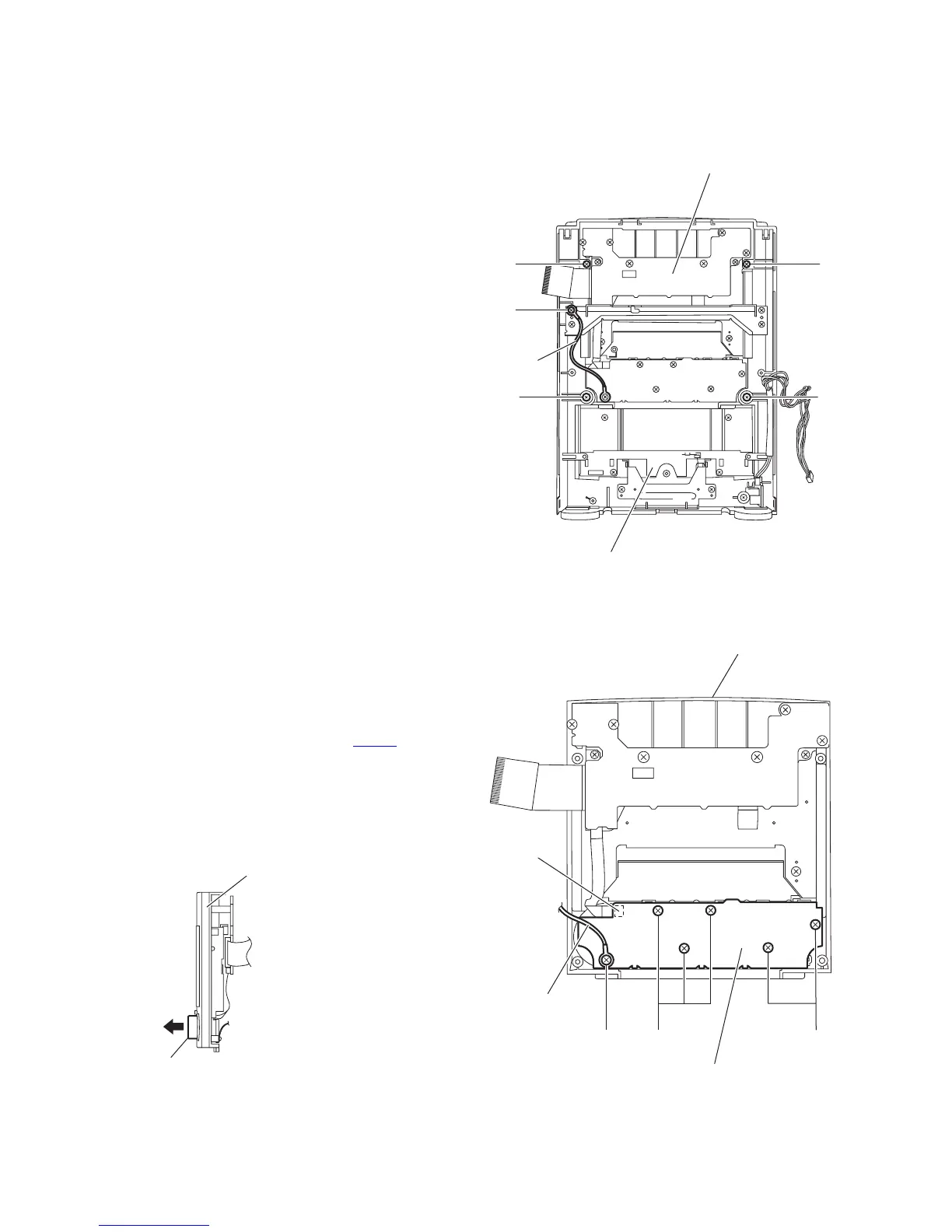

Fig.20
3.2.2 Removing the switch board
(See Figs.21 and 22)
• Remove the front assembly section.
(1) From the front side the front assembly section, pull out the
volume knob in the direction of the arrow. (See Fig.21.)
(2) From the inside of the front assembly section, remove the
five screws W and screw W' attaching the switch board.
(See Fig.22.)
(3) Disconnect the card wire from the connector CN510
on the
switch board. (See Fig.22.)
Reference:
When attaching the screw W', attach the earth wire with
it. (See Fig.22.)
(4) Take out the switch board from the front assembly section.
(See Fig.22.)
Fig.21
Fig.22
V
V
V
V
Front assembly section
Front panel assembly
U
Earth wire
Front assembly section
Volume knob
W' W
Front assembly section
Switch board
CN510
W
Earth wire
