3.1.11 Removing the CD changer mechanism assembly
(See Figs.16 to 19.)
• Remove the metal cover and front panel assembly.
(1) From the right side of the main body, disconnect the card
wire from the connector CN651
on the CD servo control
board. (See Fig.16.)
(2) From the bottom side of the main body, remove the two
screws Q attaching the CD bracket (F) to the bottom chas-
sis. (See Fig.17.)
Reference:
When attaching the CD bracket (F), align the projections
k of the bottom chassis in the holes of the CD bracket
(F). (See Fig.17.)
(3) From the front side of the main body, remove the two
screws R attaching the CD bracket (F) to the main chassis.
Reference:
When attaching the CD bracket (F), align the projection
m of the main chassis in the holes of the CD bracket (F).
(See Fig.17.)
(4) From the top side of the main body, remove the two screws
S attaching the CD changer mechanism assembly. (See
Fig.18.)
Reference:
Align the projections n on the bottom chassis in the holes
of the CD changer mechanism assembly before attach-
ing the screws S. (See Fig.18.)
(5) Take out the CD changer mechanism assembly in the di-
rection of the arrow. (See Fig.16.)
Note:
When take out the CD changer mechanism assembly,
be careful not to damage the several parts on the CD
servo control board. (See Fig.16.)
(6) From the back side of the CD changer mechanism assem-
bly, remove the two screws T attaching the CD bracket (R).
(See Fig.19.)

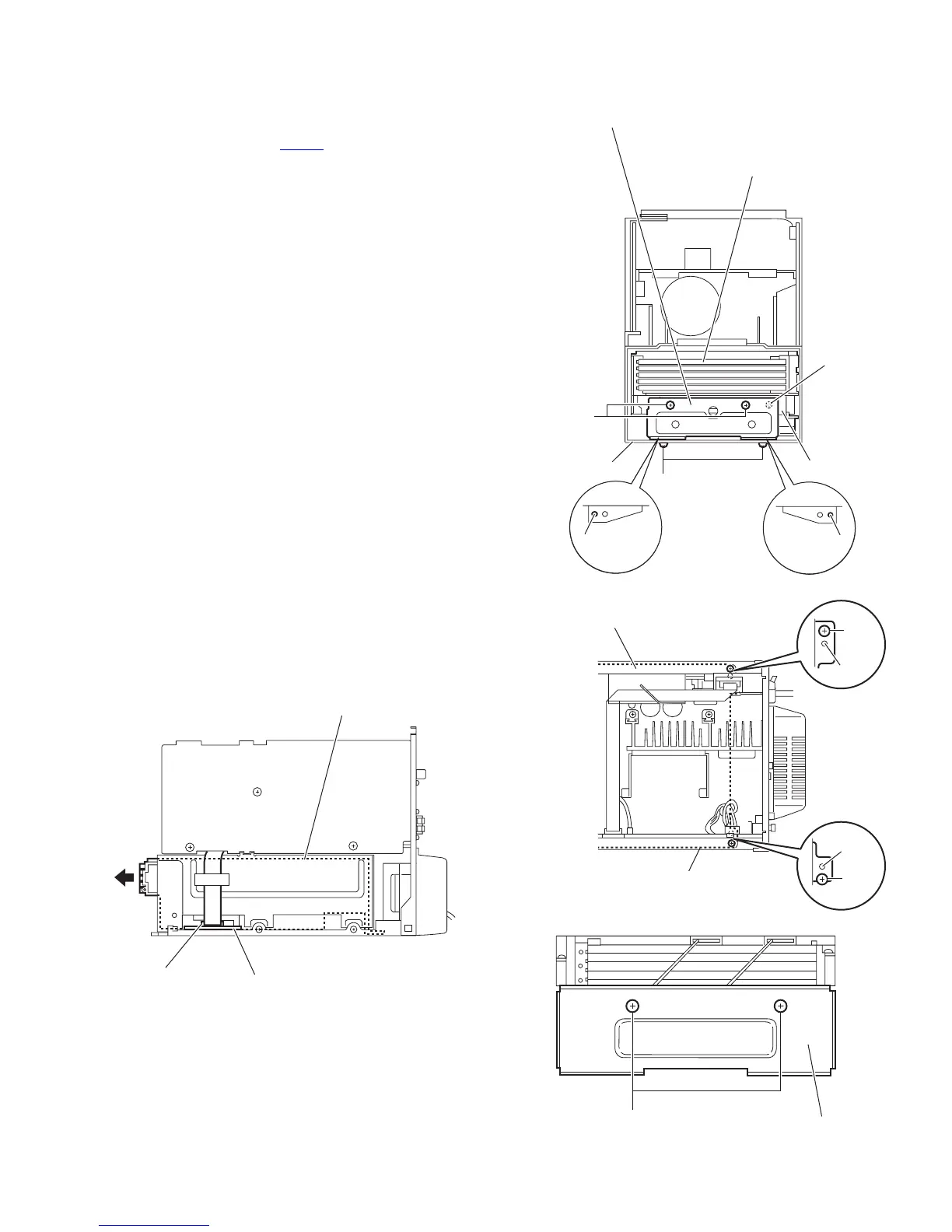

Fig.16
Fig.17
Fig.18
Fig.19
CD changer mechanism assembly
CD servo control board
CN651
CD changer mechanism assembly
R
Q
CD bracket (F)
Main chassis
m
Bottom chassis
k
k
CD changer mechanism assembly
n
n
Bottom chassis
S
S
T
CD bracket (R)
