1-12 (No.MB205)
3.1.9 Removing the fan
(See Fig.14)
• Remove the metal cover, front panel assembly, rear panel,
power supply board, micon board and power amplifier board.
(1) From the back side of the main body, remove the wire hold-
er fixing the wire.
Reference:
After attaching the fan, fix the wire with the wire holder as
before.
(2) Remove the two screws N attaching the fan.

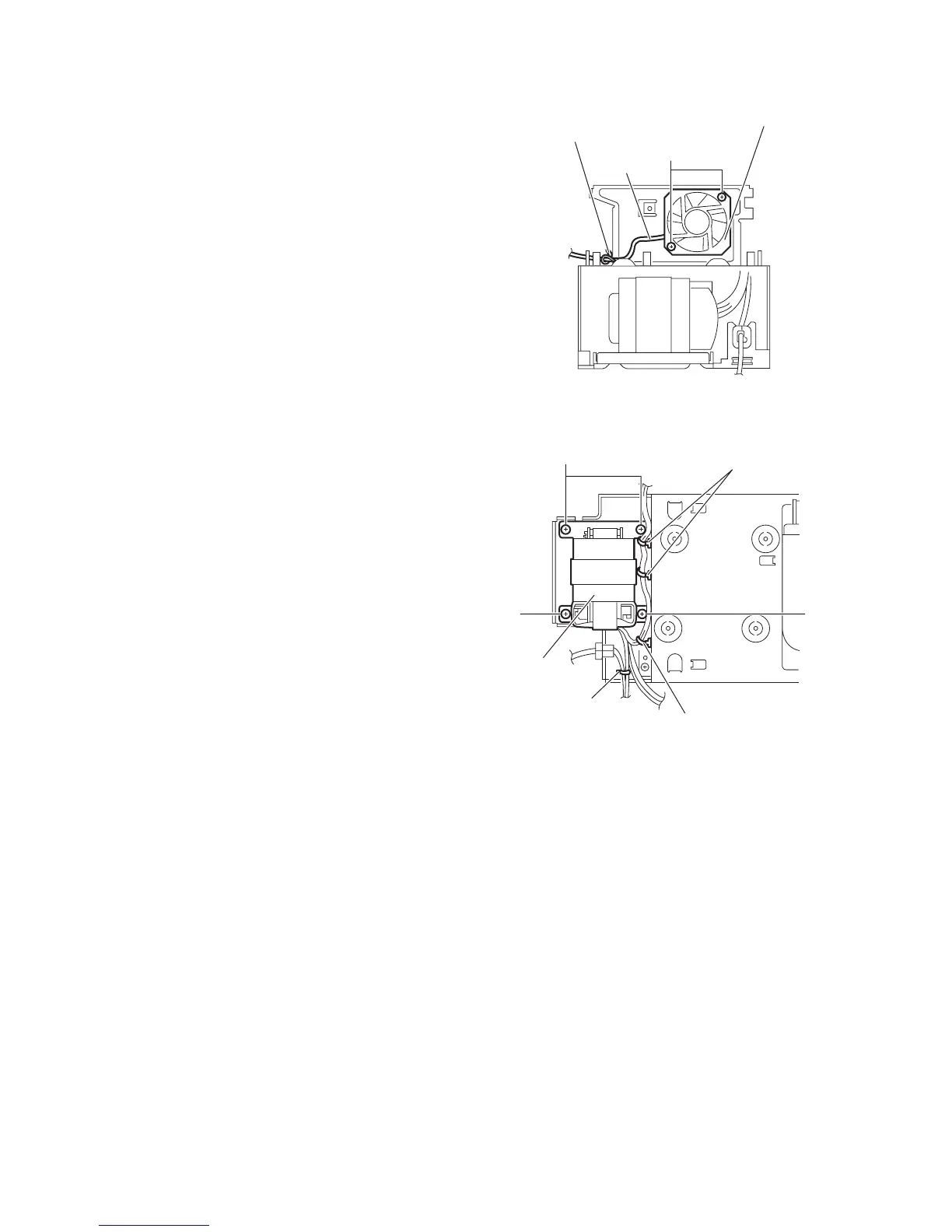

Fig.14
3.1.10 Removing the power transformer
(See Fig.15)
• Remove the metal cover, front panel assembly, rear panel,
power supply board, micon board and power amplifier board.
(1) From the top side of the main body, remove the wire hold-
ers fixing the wire.
(2) Remove the tie band.
(3) Remove the four screws P attaching the power transformer
and take out the power transformer from the main body.
Reference:
After attaching the power transformer, fix the wires with the
wire holders and new tie band as before.
Fig.15
N
Fan
Wire
Wire holder
P
Wire holders
Power
transformer
P
Tie band
P
Wire holder
