3.2.3 Removing the back light board
(See Figs.23)
• Remove the front assembly section.
(1) From the inside of the front assembly section, remove the
six screws X attaching the back light board.
(2) Take out the back light board from the front assembly sec-
tion and disconnect the card wires from the connectors
(CN551
,CN552) on the back light board.

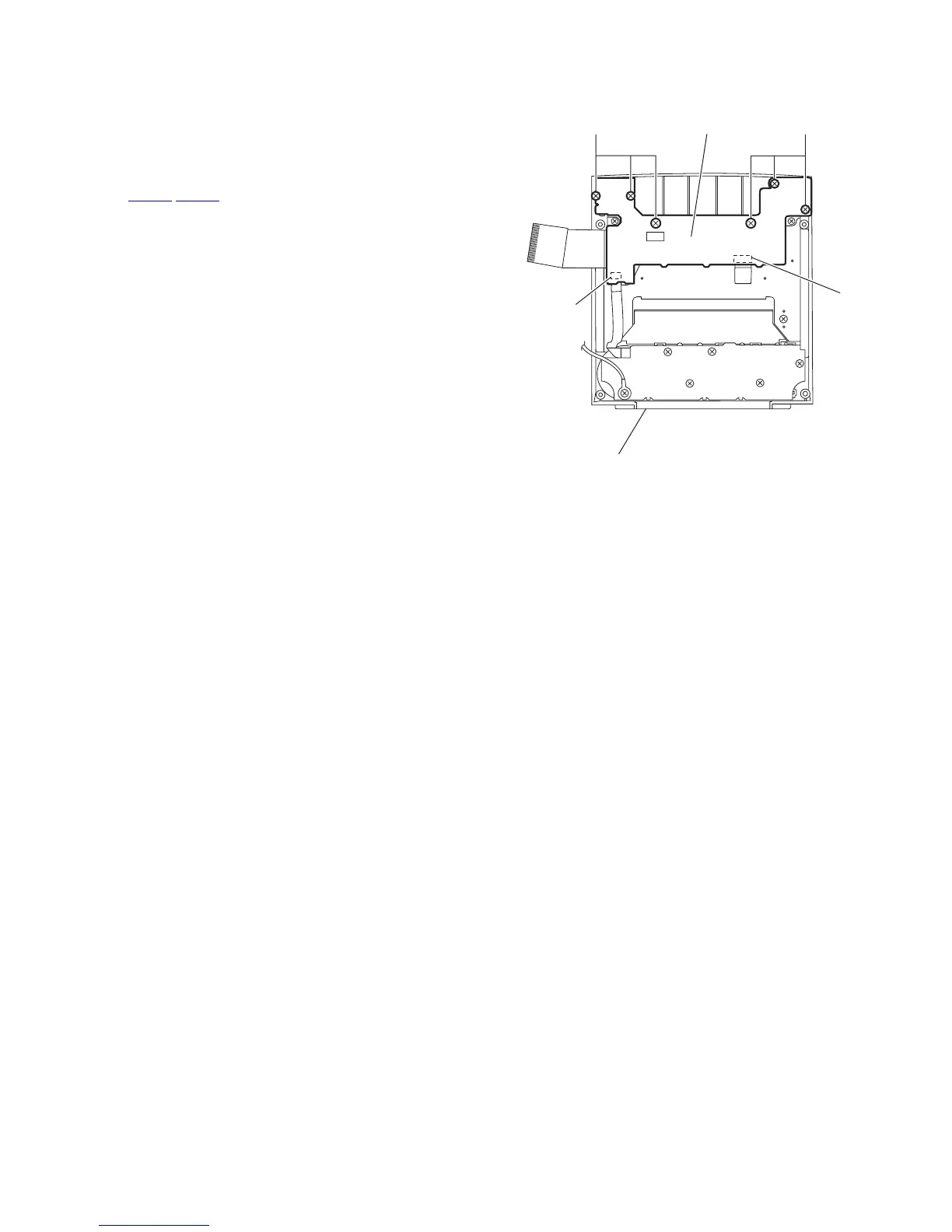

Fig.23
XX
CN552
CN551
Front assembly section
Back light board
