3.2.4 Removing the FL board
(See Figs.24 and 25)
• Remove the front assembly section and back light board.
(1) From the inside of the front assembly section, remove the
four screws Y attaching the lens holder. (See Fig.24.)
(2) Take out the lens holder with the LED lens and cover sheet.
(See Fig.24.)
(3) Take out the FL board from the front assembly section.
(See Fig.25.)

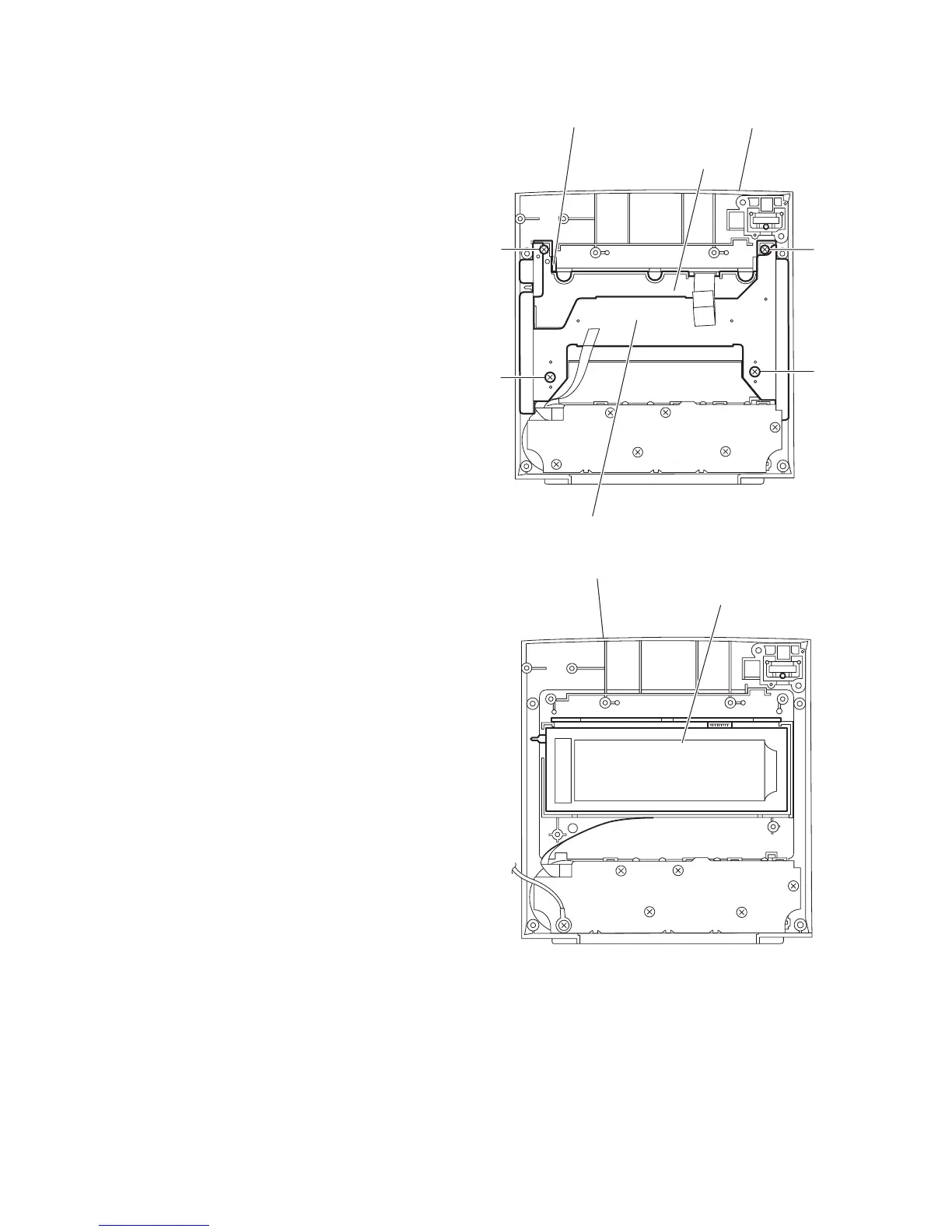

Fig.24
Fig.25
Y
Y
Y
Y
Front assembly section
Lens holder
Cover sheet
LED lens
FL board
Front assembly section
