3.2.5 Removing the headphone jack board
(See Fig.26)
(1) From the inside of the front panel assembly, remove the
screw Z attaching the headphone jack board.
(2) Take out the headphone jack board from the front panel as-
sembly.
Reference:
After attaching the headphone jack board, fix the wire with the
spacer as before.

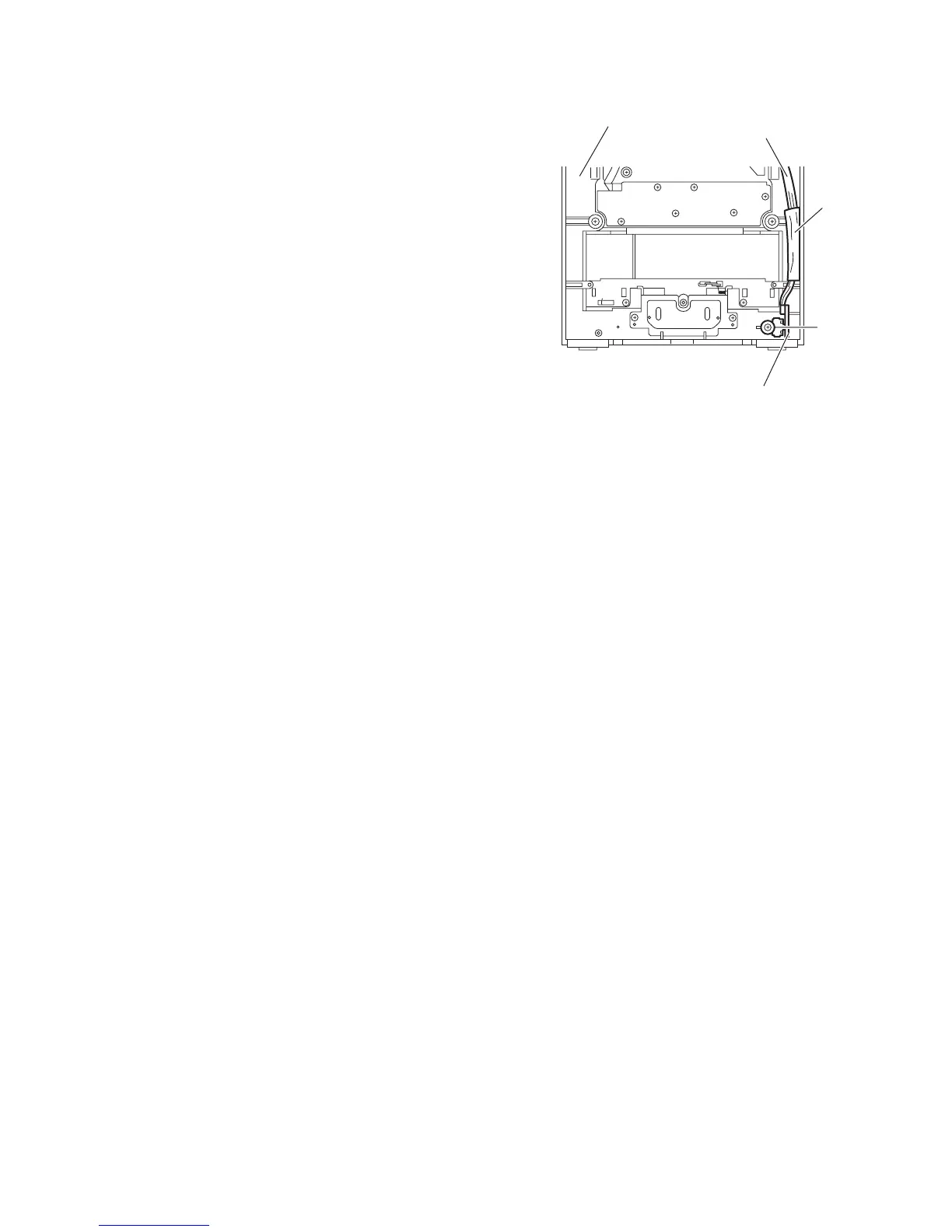

Fig.26
Front panel assembly
Z
Space
r
Headphone jack board
Wire
