JVC FS-SD1000 Service Manual

FS-SD1000
1-15

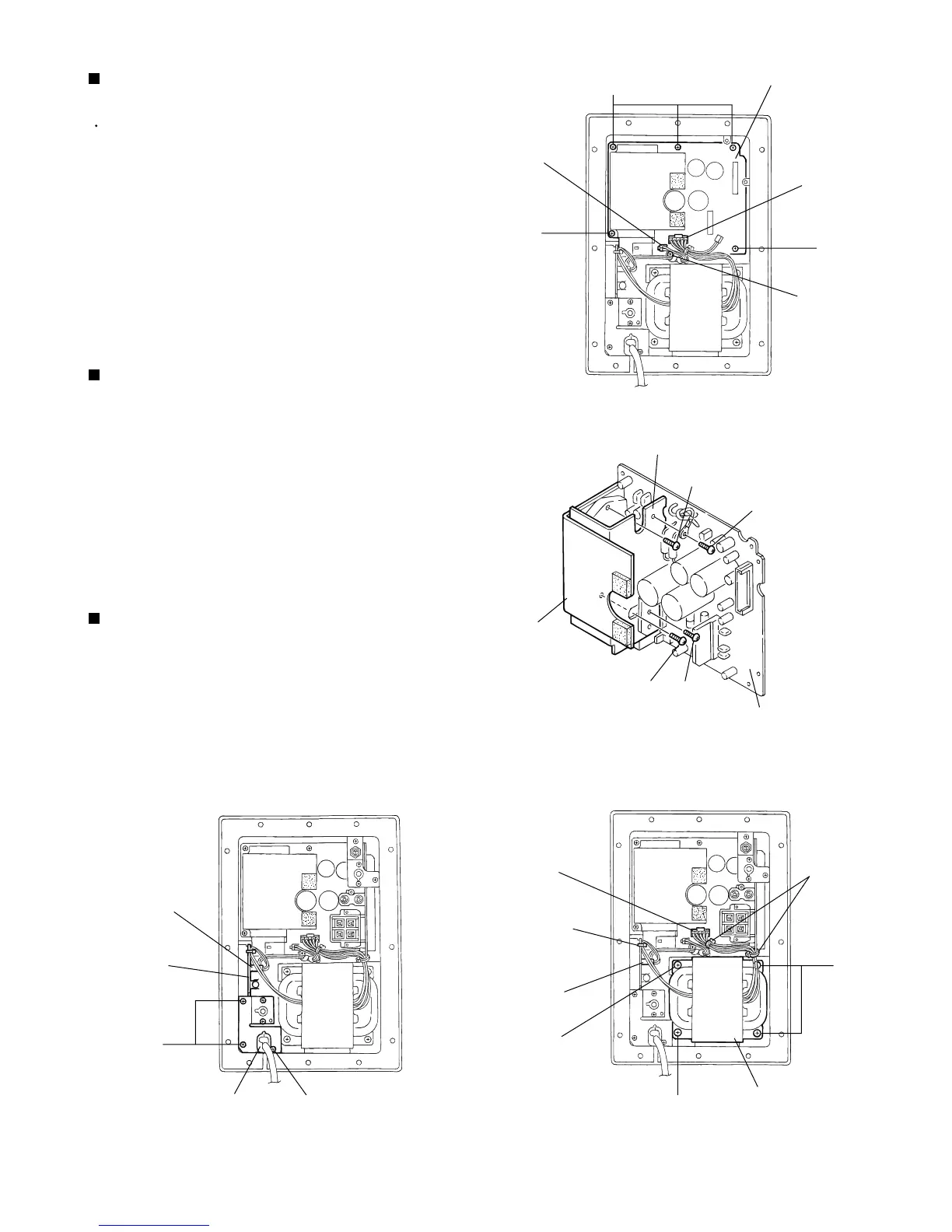

Removing the amplifier board assembly
(See Fig.4 and 5)
Prior to performing procedure, remove the input
amplifier / filter board assembly.
Disconnect the harness from connector CN291 and
CN281 on the amplifier board assembly.
Remove the six screws D attaching the amplifier
board assembly.
Remove the two screws E attaching the heat sink 1
and the two screws F attaching the heat sink 2
respectively.
1.
2.
3.
Cut off the three bands fastening the harnesses
extending from the transformer assembly.
Disconnect the harness from connector CN291 on
the amplifier board assembly and from CN299 on the
power board assembly.
Remove the four screws G attaching the transformer
assembly.
1.
2.
3.
Removing the transformer assembly
(See Fig.6)
Disconnect the harness from connector CN299 on
the power board assembly and cut off the band.
Remove the three screws H assembly.
Remove the cord stopper.
1.
2.
3.
Removing the power board assembly
(See Fig.7)
Fig.4
Fig.5
Fig.6
Fig.7
Amplifier board assembly
CN291
CN281
D
D
D
D
Heat sink 2
Heat sink 1
Amplifier board assembly
F
E
E
F
Bands
Amplifier board
assembly
CN291
Power board
assembly
CN299
G
Transformer assembly
G
G
CN299
Power board
assembly
Cord stopper
H
H
Band
