JVC FS-SD5

1-16
FS-SD5/FS-SD7/FS-SD9

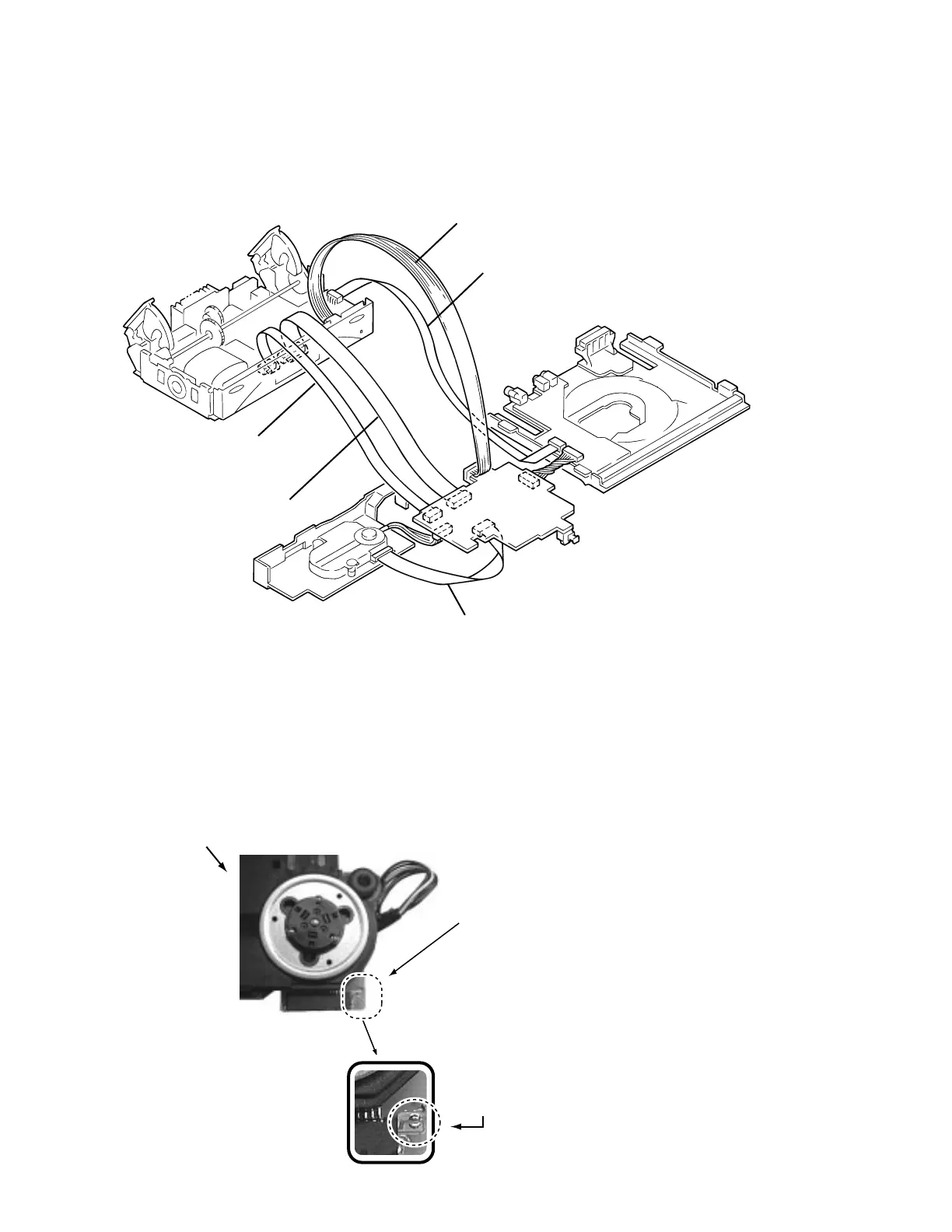

When the KSM-770ABA mechanism is used, the expansion cable is used as follows.
Shorting
KSM-770ABA
Short circuit land
Laser pick-up unit
First short-circuit the pickup circuit before removing the pickup.Then carry out the replacement.
Refer to "Dismantling and assembling the traverse unit" on page 1-5.
EXTFSSD5-JIG
extension wire
QUQB12-0840CJ
8pin card wire
QUQB12-0940DJ
9pin card wire
QUQB12-1840DJ
18pin card wire
QUQB12-1640DJ
16pin card wire
Method of connecting treatment device wire
