JVC FS-SD5 Schematic Diagrams

1-8
FS-SD5/FS-SD7/FS-SD9

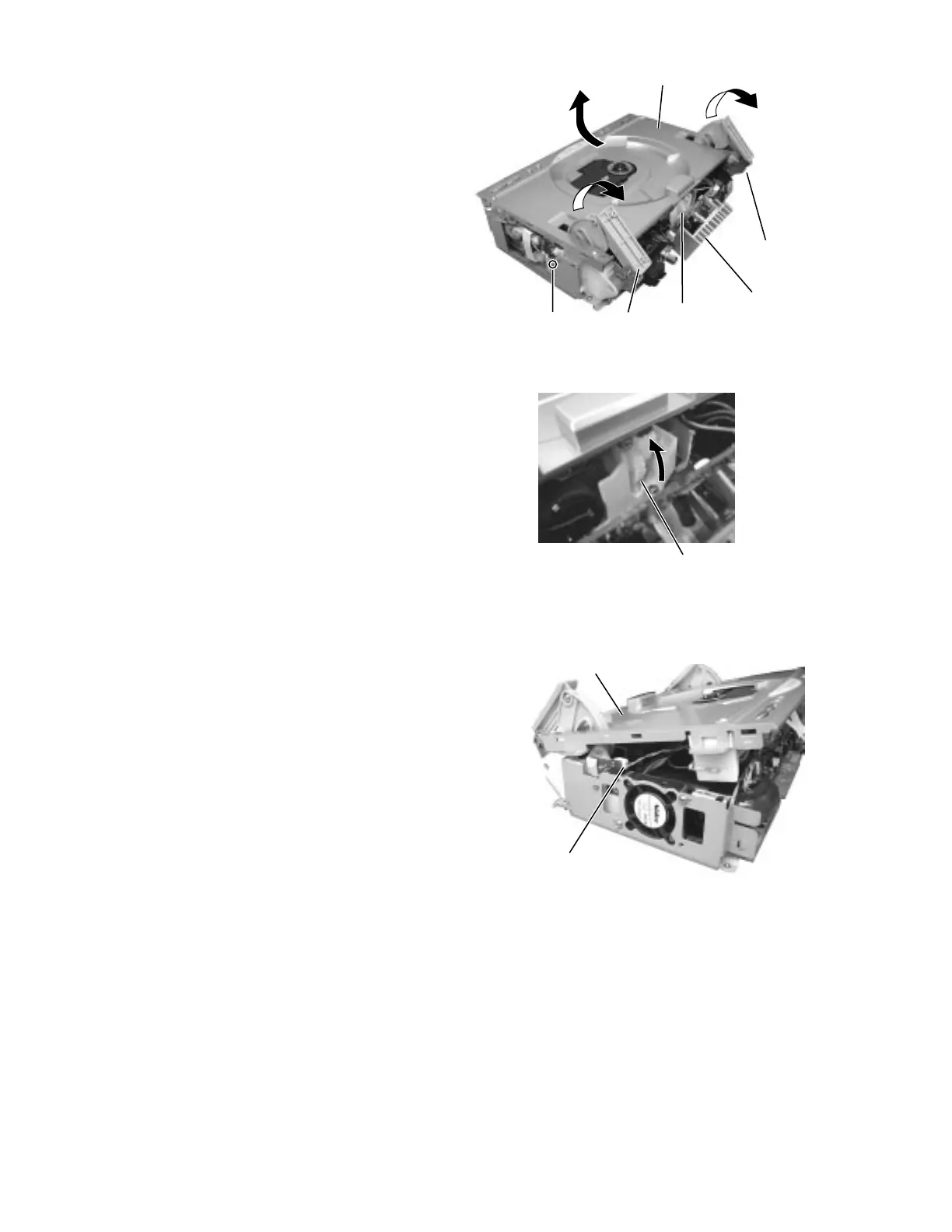

Raise the right and left door arms by turning the gear
a in the rear of the heat sink board.
After the CD mechanism base assembly is detached
from the door arms, pull the CD mechanism base
assembly toward the front and disconnect the
harness from connector CN804 on the left side of the
door arm board.
Pull out the CD mechanism base assembly toward
the front.
5.
6.
7.
Fig.11
Fig.12
Fig.13
CD mechanism base assembly
Heat sink board
Door arm
Door arm
I
Gear a
Gear a
CD mechanism base assembly
Door arm board (L)
CN804
